BJ-Gear B2B webshop

High-quality gears and actuators for a wide range of industries and applications.

Get a quote

Gear guide

Lifetime spare parts
No matter the product or the age of the product, you can be assured that we can spare parts in stock - or that we can produce the spare part at a relatively short notice - Lorem upsim dolarem bandoli

Engineering service & support
Our sales team is ready to advise you about your transmission needs. In case of more complicated tasks our design engineers can help in analysing, dimensioning and designing the ideal solution

Unique serial numbering
Serial numbers on gear components ensure precise identification, enabling accurate spare part supply and reproduction of specialized units, regardless of delivery time or complexity

ISO 9001/14001 certification
The ISO 9001/14001 certification ensures quality, customer satisfaction, and environmental responsibility while enhancing sustainability by reducing ecological impact.

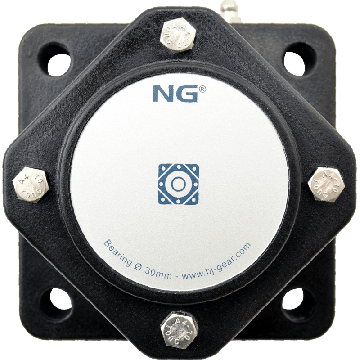

NG waterproof flange bearing F4 Ø30, 4-bolt, closed cover NG30F40

Grease nipple Straight
Hole distance (mm) 82.5
Shaft size (mm) Ø30
Cover Closed
Sealing Nitrile rubber (NBR)
Model F4
Mounting Eccentric
Housing type 4-bolt flange bearing
Color Black
IP classification IP 66/67

€71.08

Delivery costs are added

NG flange bearing F3 Ø25, 3-bolt, open cover NG25F31

Grease nipple Straight
Hole distance (mm) 41.3
Shaft size (mm) Ø25
Cover Open
Sealing Nitrile rubber (NBR)
Model F3
Mounting Eccentric
Housing type 3-bolt flange bearing
Color Black
IP classification IP 66/67

€67.19

Delivery costs are added

Busck AC motor T2A71B-4, 0.37kW, 1400RPM, 230/400V, 50Hz, aluminium T2A71B-4

IP classification IP 55
Speed (RPM) 1400
Rated output (kW) 0.37
Voltage connection (Δ/Y) 230/400
Nominal torque (Nm) 2.52
Mounting B14
IEC norm 71
BCD 85
Poles 4
Shaft diameter (mm) Ø14
Cooling TEFC

€267.97

Delivery costs are added

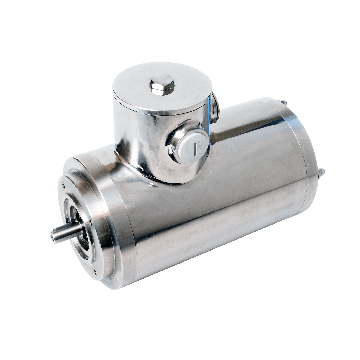

Marlin AC motor TENV63B-4, 0.18kW, 1400RPM, 230/400V, 50Hz, IP66, stainless steel TENV63B-4

IP classification IP 66
Speed (RPM) 1400
Rated output (kW) 0.18
Voltage connection (Δ/Y) 230/400
Nominal torque (Nm) 1.25
Mounting B14
IEC norm 63
BCD 75
Poles 4
Certifications UL, cURus
Shaft diameter (mm) Ø11
Cooling TEFC

€724.78

Delivery costs are added

BEGE flange encoder MN-090-11-00087, 8 pulses, 2m cable, aluminium HV500040

IP classification IP 55
Pulses 8
Outer diameter (mm) Ø90
Flange thickness (mm) 7
Material Aluminium
Cable length (m) 2
Shaft diameter (mm) Ø11
BCD norm 75

€415.10

Delivery costs are added

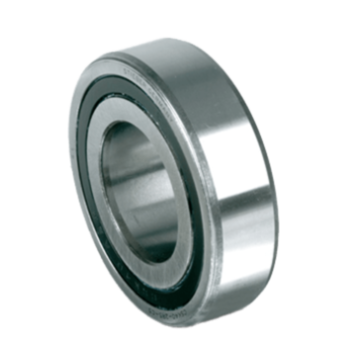

Stieber freewheel CSK..2RS 20mm, steel HV73100400

Type CSK
Drag torque (Ncm) 6
Producer Stieber
Max. torque (Nm) 50
Shaft size (mm) Ø20

€116.28

Delivery costs are added

KBE2 28 N24 N25 servo insert coupling, aluminium and polyurethane HV71017755

Material Aluminium and polyurethane
Length (mm) 90
Max. moment (Nm) 123
Coupling size 28
Outer diameter (mm) Ø65
Bore D1 Ø24mm H7 with keyway
Bore D2 Ø25mm H7 with keyway

€146.46

Delivery costs are added

KB4 200 101 N25 N27 metal bellow coupling HV71015471

Material Stainless steel and steel
Length (mm) 101
Max. moment (Nm) 200
Coupling size 200

€207.62

Delivery costs are added

ES2 10 A W torque limiter, adjustment range: 2-6 Nm, steel, aluminum and TPU HV3020160502

Material Steel, aluminum and TPU
Length (mm) 60
Max. moment (Nm) 25
Coupling size 10
Outer diameter (mm) Ø45
Bore D1 Ø14mm H7
Bore D2 Ø15mm H7

€213.52

Delivery costs are added

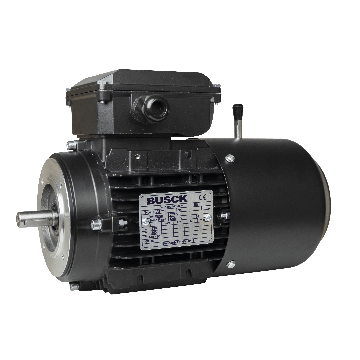

Busck AC brake motor T2AB71B-6, 0.25kW, 910RPM, 230/400V, 50Hz, aluminium T2AB71B-6

IP classification IP 55
Speed (RPM) 910
Rated output (kW) 0.25
Voltage connection (Δ/Y) 230/400
Nominal torque (Nm) 2.1
Mounting B14
IEC norm 71
BCD 85
Poles 6
Shaft diameter (mm) Ø14
Cooling TEFC

€721.83

Delivery costs are added

Flange bearing SF Ø30, 4-bolt, stainless steel SUCF206S

Bolt size M10
Grease nipple Straight
Hole distance (mm) 83
Shaft size (mm) Ø30
Cover Open
Sealing Nitrile rubber (NBR)
Model SF
Mounting Set screw
Housing type 4-bolt flange bearing
Color Black

€49.49

Delivery costs are added

Mini flange bearing MUFL Ø20, eccentric collar, stainless steel MUFL004

Bolt size M8
Grease nipple None
Hole distance (mm) 71
Shaft size (mm) Ø20
Cover Open
Sealing Nitrile rubber (NBR)
Model MUFL
Mounting Eccentric
Housing type 2-bolt flange bearing
Color Black

€42.52

Delivery costs are added

CONTI trapezoidal nut with flange HDL Tr 40x7, right thread, bronze KI600175

Flange size (mm) Ø84
Material Bronze
Lenght (mm) 120
Type HDL
Thread starts 1
Shape Flanged
BCD (mm) Ø68 - 6xØ8,5
Thread and metric Tr 40 x 7

€450.11

Delivery costs are added

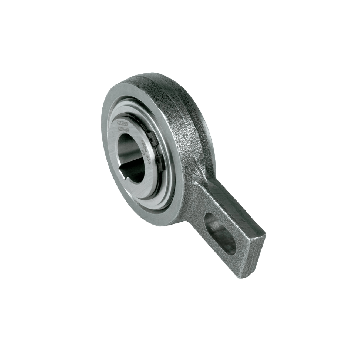

Stieber freewheel RSBW 60mm, steel HV73100620

Type RSBW
Overrunning speed imax (RPM) 250
Boltholes 1
Producer Stieber
Max. torque (Nm) 2550
Shaft size (mm) Ø60

€955.07

Delivery costs are added

SPIDEX claw coupling hub A55/70, cast iron HV71005930

Hub type A
Material Cast iron
Length (mm) 160
Max. moment (Nm) 820
Coupling size 55/70
Bore max. Ø55mm H7
Bore min. Ø19mm H7

€84.23

Delivery costs are added

SPIDEX spider 14 red 98° Shore A, coupling element, polyurethane HV71006940

Material Polyurethane
Element nominal torque (Nm) 12.5
Element max. torque (Nm) 25
Coupling size 14

€3.49

Delivery costs are added

Who are we?

BJ-Gear A/S is a company specializing in the design and manufacture of gear drives and transmission solutions. Established in Denmark, we have a reputation for delivering high-quality, customized gear solutions. Our expertise lies in creating products that meet specific customer requirements, making us a valuable partner in various industrial areas and segments. In the video below, you can get a look inside our production.
