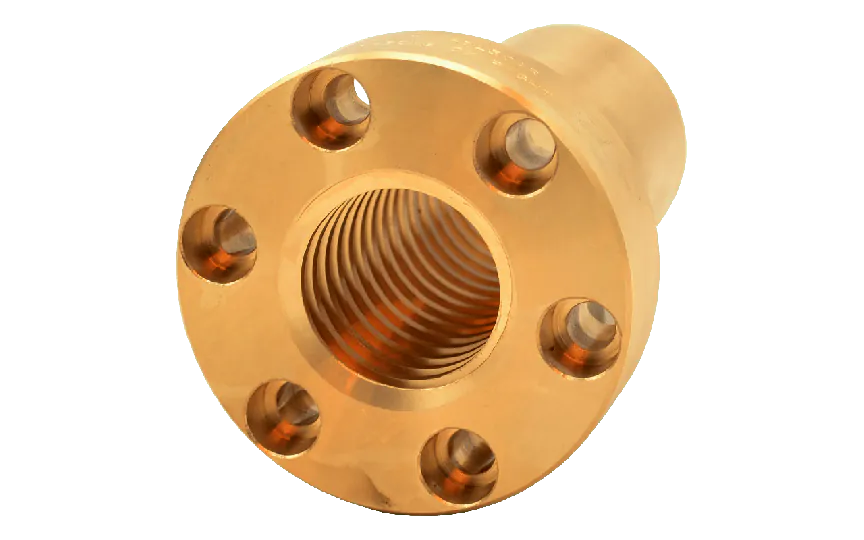

CONTI HDL Tr 40x7 trapezoidal nut with flange, right thread, bronze
KI600175CONTI trapezoidal nut HDL Tr 40x7 with right thread, a engineering component designed to heavy loads and high-speed movement. Crafted with precision and durability in mind, this trapezoidal nut is engineered to enhance your industrial applications.
Specifications
Product description
Downloads
€450.00
Made to order
Expected shipment: 22-04-2025
More Information
Flange size (mm)
Ø84
Material
Bronze
Lenght (mm)
120
Type
HDL
Thread starts
1
Shape
Flanged
BCD (mm)
Ø68 - 6xØ8,5
Thread and metric
Tr 40 x 7
Description
Key features:
- Flanged design: The trapezoidal nut boasts a flanged bronze construction with a substantial length of 3 times the diameter (3 x d).
- Interchangeability: The flange dimensions of this nut allow for seamless interchangeability with CONTI FTN, HDL, HAL, and FCS series (Note: Total length and flange thickness may vary).
- Six holes: The HDL Tr 40x7 features six strategically positioned holes in the flange, enabling secure installation and robust connection to your equipment.
- Optimal lubrication: To maintain peak performance and longevity, we recommend ensuring good lubrication for this trapezoidal nut.
- Materials: Crafted from the chemical composition of materials, EN 1982 Cu Sn12-C (CC483K).
