Lifetime spare parts
No matter the product or the age of the product, you can be assured that we can spare parts in stock - or that we can produce the spare part at a relatively short notice - Lorem upsim dolarem bandoli

Engineering service & support
Our sales team is ready to advise you about your transmission needs. In case of more complicated tasks our design engineers can help in analysing, dimensioning and designing the ideal solution

Unique serial numbering
Serial numbers on gear components ensure precise identification, enabling accurate spare part supply and reproduction of specialized units, regardless of delivery time or complexity

ISO 9001/14001 certification
The ISO 9001/14001 certification ensures quality, customer satisfaction, and environmental responsibility while enhancing sustainability by reducing ecological impact.

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.

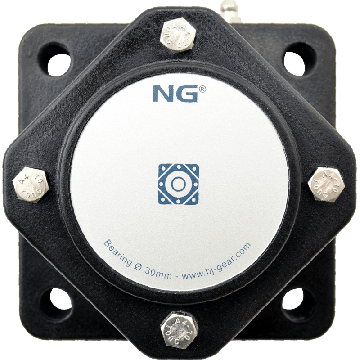

NG waterproof flange bearing F4 Ø30, 4-bolt, closed cover
NG waterproof flange bearing F4 Ø30, 4-bolt, closed cover NG30F40
  • Grease nipple Straight
  • Hole distance (mm) 82.5
  • Shaft size (mm) Ø30
  • Cover Closed
  • Sealing Nitrile rubber (NBR)
  • Model F4
  • Mounting Eccentric
  • Housing type 4-bolt flange bearing
  • Color Black
  • IP classification IP 66/67
€71.07
Delivery costs are added
NG waterproof flange bearing F4 Ø30, 4-bolt, open cover, blue
NG waterproof flange bearing F4 Ø30, 4-bolt, open cover, blue NGB30F41
  • Grease nipple Straight
  • Hole distance (mm) 82.5
  • Shaft size (mm) Ø30
  • Cover Open
  • Sealing Nitrile rubber (NBR)
  • Model F4
  • Mounting Eccentric
  • Housing type 4-bolt flange bearing
  • Color Blue
  • IP classification IP 66/67
€73.21
Delivery costs are added
Busck AC motor T2A71B-4, 0.37kW, 1400RPM, 230/400V, 50Hz, aluminium
Busck AC motor T2A71B-4, 0.37kW, 1400RPM, 230/400V, 50Hz, aluminium T2A71B-4
  • IP classification IP 55
  • Speed (RPM) 1400
  • Rated output (kW) 0.37
  • Voltage connection (Δ/Y) 230/400
  • Nominal torque (Nm) 2.52
  • Mounting B14
  • IEC norm 71
  • BCD 85
  • Poles 4
  • Shaft diameter (mm) Ø14
  • Cooling TEFC
€267.90
Delivery costs are added

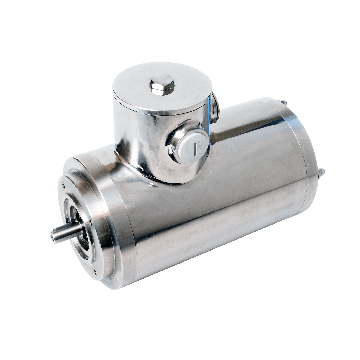

Marlin AC motor TENV63B-4, 0.18kW, 1400RPM, 230/400V, 50Hz, IP66, stainless steel
Marlin AC motor TENV63B-4, 0.18kW, 1400RPM, 230/400V, 50Hz, IP66, stainless steel TENV63B-4
  • IP classification IP 66
  • Speed (RPM) 1400
  • Rated output (kW) 0.18
  • Voltage connection (Δ/Y) 230/400
  • Nominal torque (Nm) 1.25
  • Mounting B14
  • IEC norm 63
  • BCD 75
  • Poles 4
  • Certifications UL, cURus
  • Shaft diameter (mm) Ø11
  • Cooling TEFC
€724.60
Delivery costs are added
BEGE flange encoder MN-090-11-00087, 8 pulses, 2m cable, aluminium
BEGE flange encoder MN-090-11-00087, 8 pulses, 2m cable, aluminium HV500040
  • IP classification IP 55
  • Pulses 8
  • Outer diameter (mm) Ø90
  • Flange thickness (mm) 7
  • Material Aluminium
  • Cable length (m) 2
  • Shaft diameter (mm) Ø11
  • BCD norm 75
€415.00
Delivery costs are added

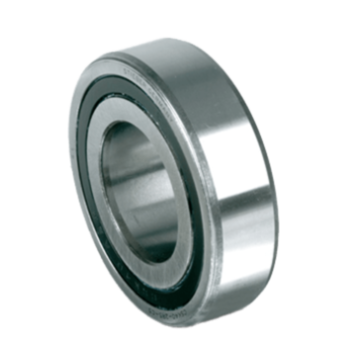

Stieber freewheel CSK..2RS 20mm, steel
Stieber freewheel CSK..2RS 20mm, steel HV73100400
  • Type CSK
  • Drag torque (Ncm) 6
  • Producer Stieber
  • Max. torque (Nm) 50
  • Shaft size (mm) Ø20
€116.25
Delivery costs are added
KBE2 28 N24 N25 servo insert coupling, aluminium and polyurethane
KBE2 28 N24 N25 servo insert coupling, aluminium and polyurethane HV71017755
  • Material Aluminium and polyurethane
  • Length (mm) 90
  • Max. moment (Nm) 123
  • Manufacturer KBK
  • Coupling size 28
  • Outer diameter (mm) Ø65
  • Bore D1 Ø24mm H7 with keyway
  • Bore D2 Ø25mm H7 with keyway
€146.42
Delivery costs are added
KB4 200 101 N25 N27 metal bellow coupling
KB4 200 101 N25 N27 metal bellow coupling HV71015471
  • Material Stainless steel and steel
  • Length (mm) 101
  • Max. moment (Nm) 200
  • Manufacturer KBK
  • Coupling size 200
€207.57
Delivery costs are added
R+W ES2 10 A W torque limiter, adjustment range: 2-6 Nm, steel, aluminum and TPU
R+W ES2 10 A W torque limiter, adjustment range: 2-6 Nm, steel, aluminum and TPU HV3020160502
  • Material Steel, aluminum and TPU
  • Length (mm) 60
  • Max. moment (Nm) 25
  • Manufacturer R+W
  • Coupling size 10
  • Outer diameter (mm) Ø45
  • Bore D1 Ø14mm H7
  • Bore D2 Ø15mm H7
€213.46
Delivery costs are added

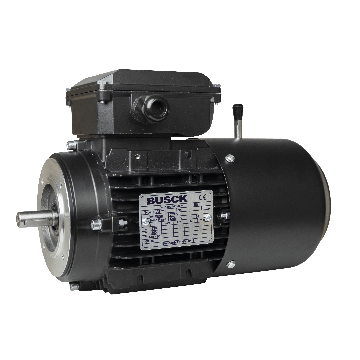

Busck AC brake motor T2AB71B-6, 0.25kW, 910RPM, 230/400V, 50Hz, aluminium
Busck AC brake motor T2AB71B-6, 0.25kW, 910RPM, 230/400V, 50Hz, aluminium T2AB71B-6
  • IP classification IP 55
  • Speed (RPM) 910
  • Rated output (kW) 0.25
  • Voltage connection (Δ/Y) 230/400
  • Nominal torque (Nm) 2.1
  • Mounting B14
  • IEC norm 71
  • BCD 85
  • Poles 6
  • Shaft diameter (mm) Ø14
  • Cooling TEFC
€721.65
Delivery costs are added
Flange bearing SF Ø30, 4-bolt, stainless steel
Flange bearing SF Ø30, 4-bolt, stainless steel SUCF206S
  • Bolt size M10
  • Grease nipple Straight
  • Hole distance (mm) 83
  • Shaft size (mm) Ø30
  • Cover Open
  • Sealing Nitrile rubber (NBR)
  • Model SF
  • Mounting Set screw
  • Housing type 4-bolt flange bearing
  • Color Black
€49.48
Delivery costs are added
Mini flange bearing MUFL Ø20, eccentric collar, stainless steel
Mini flange bearing MUFL Ø20, eccentric collar, stainless steel MUFL004
  • Bolt size M8
  • Grease nipple None
  • Hole distance (mm) 71
  • Shaft size (mm) Ø20
  • Cover Open
  • Sealing Nitrile rubber (NBR)
  • Model MUFL
  • Mounting Eccentric
  • Housing type 2-bolt flange bearing
  • Color Black
€42.51
Delivery costs are added
CONTI trapezoidal nut with flange HDL Tr 40x7, right thread, bronze
CONTI trapezoidal nut with flange HDL Tr 40x7, right thread, bronze KI600175
  • Flange size (mm) Ø84
  • Material Bronze
  • Lenght (mm) 120
  • Type HDL
  • Thread starts 1
  • Shape Flanged
  • BCD (mm) Ø68 - 6xØ8,5
  • Thread and metric Tr 40 x 7
€449.99
Delivery costs are added

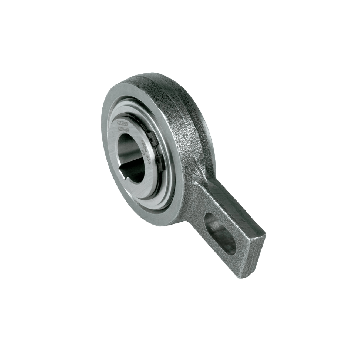

Stieber freewheel RSBW 60mm, steel
Stieber freewheel RSBW 60mm, steel HV73100620
  • Type RSBW
  • Overrunning speed imax (RPM) 250
  • Boltholes 1
  • Producer Stieber
  • Max. torque (Nm) 2550
  • Shaft size (mm) Ø60
€954.83
Delivery costs are added
SPIDEX claw coupling hub A55/70, cast iron
SPIDEX claw coupling hub A55/70, cast iron HV71005930
  • Hub type A
  • Material Cast iron
  • Length (mm) 160
  • Max. moment (Nm) 820
  • Manufacturer R+L HYDRAULICS
  • Coupling size 55/70
  • Bore max. Ø55mm H7
  • Bore min. Ø19mm H7
€84.21
Delivery costs are added
SPIDEX 14/16 red 98°, spider, Shore A, coupling element, polyurethane
SPIDEX 14/16 red 98°, spider, Shore A, coupling element, polyurethane HV71006940
  • Material Polyurethane
  • Element nominal torque (Nm) 12.5
  • Element max. torque (Nm) 25
  • Manufacturer R+L HYDRAULICS
  • Coupling size 14
€3.49
Delivery costs are added

Who are we?



BJ-Gear A/S is a company specializing in the design and manufacture of gear drives and transmission solutions. Established in Denmark, we have a reputation for delivering high-quality, customized gear solutions. Our expertise lies in creating products that meet specific customer requirements, making us a valuable partner in various industrial areas and segments. In the video below, you can get a look inside our production.
