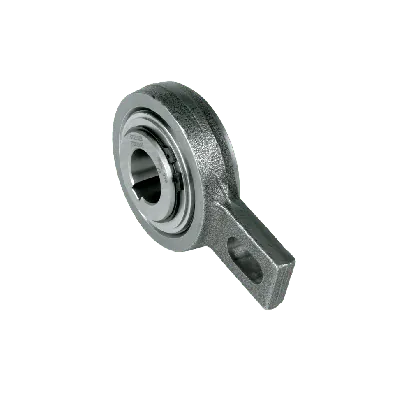

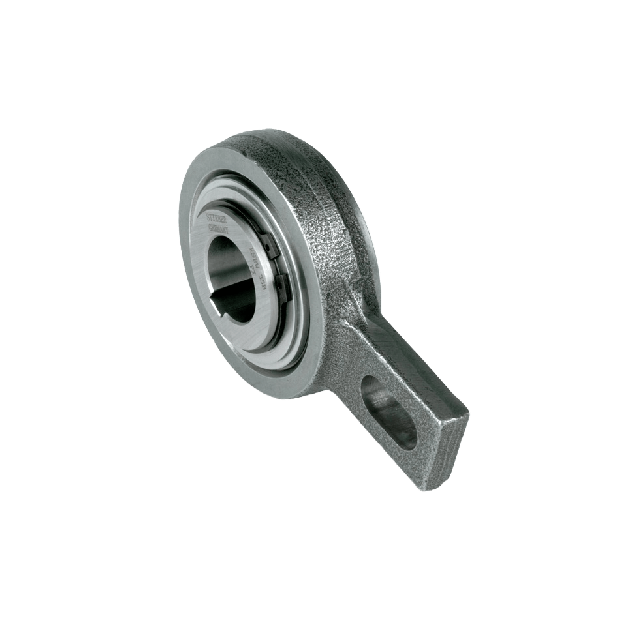

Stieber freewheel RSBW 60mm, steel
HV73100620The RSBW freewheel size 60 mm from Steiber is a DC sprag type freewheel, engineered to deliver performance and reliability. It is designed to ensure smooth operation and prevent reverse rotation in various industrial applications.
Specifications
Product description
Downloads
€954.54
Made to order
Expected shipment: 17-11-2024
More Information
Type
RSBW
Overrunning speed imax (RPM)
250
Boltholes
1
Producer
Stieber
Max. torque (Nm)
2550
Shaft size (mm)
Ø60
Description
Key features:
- DC sprag type: The self-contained freewheel employs a durable DC sprag mechanism, ensuring a secure transmission of torque with minimal backlash.
- Versatile installation: The freewheel is pre-greased and ready for installation in either horizontal or vertical orientations, allowing for flexible integration into diverse machinery setups.
- Low rotational speeds: Centered by plain bearings, the RSBW freewheel is optimized for low rotational speeds, ensuring smooth performance in critical applications.
- Sealed protection: Shielded with O Rings, the freewheel offers excellent protection against contaminants and ensures long-lasting reliability in challenging environments.
- High torque capacity: This freewheel is built to handle high torque loads, providing an impressive torque capacity despite its compact size.
- Backstop functionality: Primarily used as a backstop, the RSBW freewheel effectively prevents reverse rotation, safeguarding your equipment and preventing damage.
- Robust build quality: Manufactured with precision engineering and high-quality materials, the freewheel guarantees durability and longevity in demanding industrial environments.
