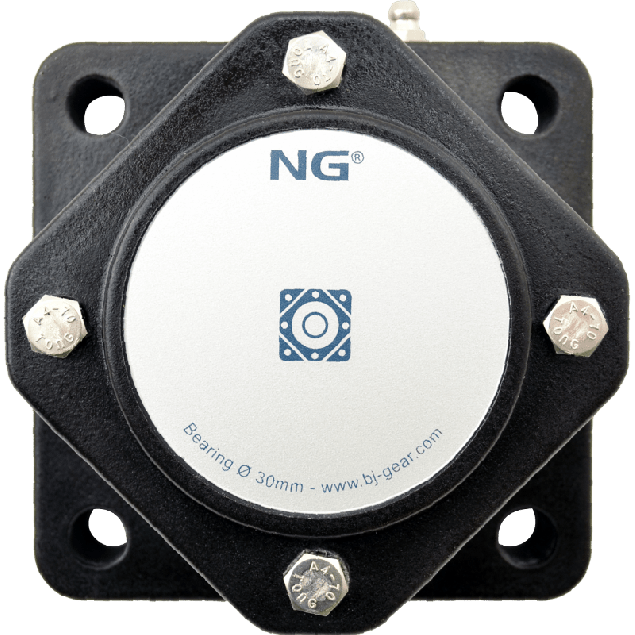

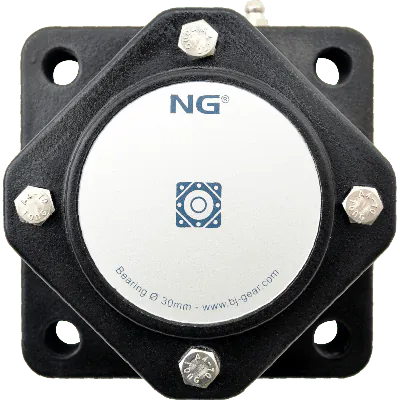

NG waterproof flange bearing F4 Ø30, 4-bolt, closed cover

NG30F40

The NG flange bearing F4 Ø30 with closed cover, is a compact flange housing designed for various industrial applications. With its features and durable materials, this bearing offers reliable performance and easy maintenance

Specifications

Product description

Guide

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment: 04-04-2025

Accessories

Bolt size M6x1
Grease nipple 45°

NG waterproof grease nipple 45 degrees, stainless steel KI820015

€3.42

excl. VAT

Bolt size M6x1
Grease nipple 90°

NG waterproof grease nipple 90 degrees, stainless steel KI820020

€4.26

excl. VAT

Grease nipple None
Shaft size (mm) Ø30
Mounting Eccentric

NG insert bearing Ø30, stainless steel KI803050

€35.00

excl. VAT

More Information

Grease nipple

Straight

Hole distance (mm)

82.5

Shaft size (mm)

Ø30

Cover

Closed

Sealing

Nitrile rubber (NBR)

Bearing material

Stainless steel

Model

Mounting

Eccentric

Housing type

4-bolt flange bearing

House material

Polyurethane

Color

Black

IP classification

IP 66/67

Description

Key features:

Compact and easy to clean: The flange housing is designed with rounded corners and smooth surfaces, making it easy to clean and maintain.
Spherical PE lifetime lubricated ball bearing: The bearing is equipped with a spherical PE ball bearing that requires no maintenance.
Excentric locking collar: The locking collar ensures secure mounting of the bearing on the shaft and prevents any setting or displacement during operation.
IP66/67 rated: The flange housing has an IP66/67 rating, providing protection against dust and water ingress. It can withstand direct hosing without any water penetration.

Materials:

Stainless steel grease nipple: The bearing features a stainless steel grease nipple for optimal food-grade grease filling.
Durable PUR flange housing: The flange housing is made of Polyurethane (PUR).
