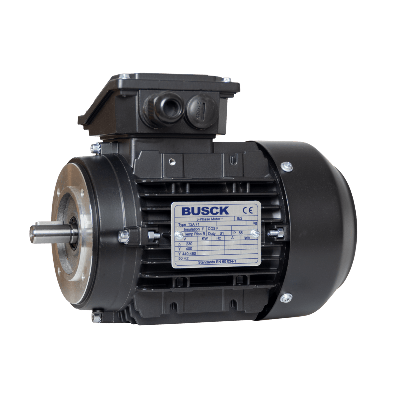

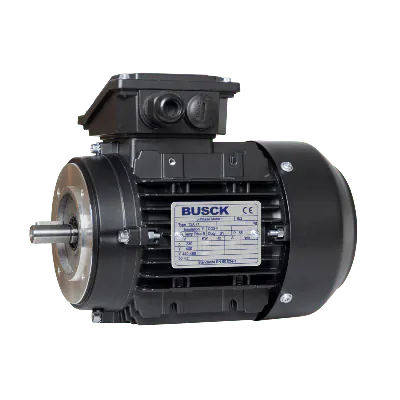

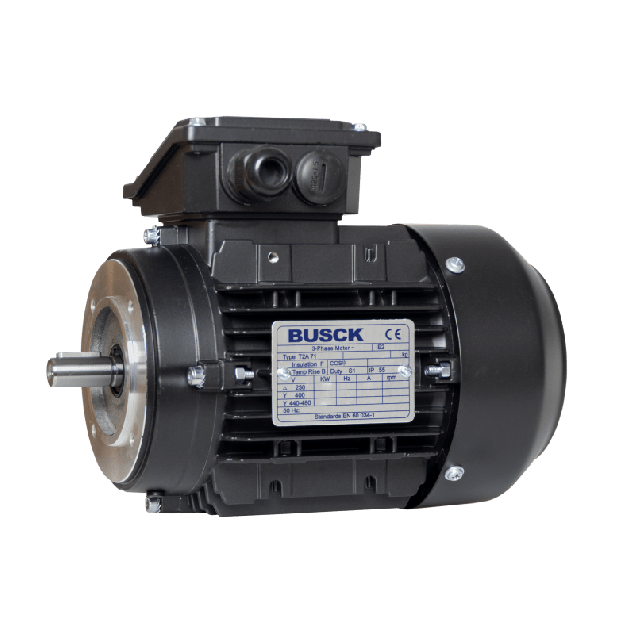

Busck AC motor T2A71B-4, 0,37kW, 1400RPM, B14, 230/400, 50 Hz, Aluminium

T2A71B-4

The Busck AC Motor T2A71B-4 is a reliable electric motor engineered for industrial applications. This model offers a rated output of 0.37 kW and operates at a rated speed of 1400 RPM. Built according to IEC 71 standards, it features 4 poles and a shaft diameter of Ø14 mm. The motor supports a B14 mounting configuration and is constructed from aluminium for reduced weight and effective thermal performance. Additional specifications include voltage connection 230/400 V, TEFC cooling, IP55 protection class, and compliance with the IE2 efficiency standard. The bolt circle diameter is 85 mm. This motor is a compact and robust choice for engineers prioritizing efficiency and durability.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

In stock

Expected shipment:

More Information

IP classification

IP 55

Model

T2A71B-4

Speed (RPM)

1400

Rated output (kW)

0.37

Efficiency (% FL)

72.7

Voltage connection (Δ/Y)

230/400

Rated current at voltage

1.76/1.01

Nominal torque (Nm)

2.52

Start current ratio (IA/IN)

4.7

Mounting

B14

BCD

Poles

Efficiency standard

IE2

Shaft diameter (mm)

Ø14

Cooling

TEFC

HS-Code

85015100.000000

Description

Key features:

IP55 rating: The motor is dust and water-resistant, making it suitable for use in demanding conditions.
High power output: With a power rating of 0.37kW, this motor delivers performance and efficiency.
Speed control: Capable of operating at 1400RPM, ensuring precise speed control for various applications.
Voltage compatibility: Supports dual voltage operation at 230V or 400V, making it adaptable to different power systems.
B14 flange mounting: The B14 flange allows for easy and secure installation.
IE2 efficiency: Designed with high energy efficiency, leading to reduced energy consumption and operating costs.

Specifications:
