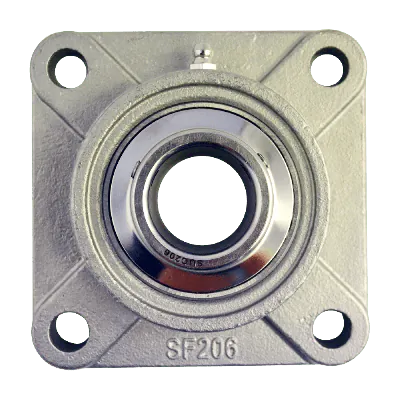

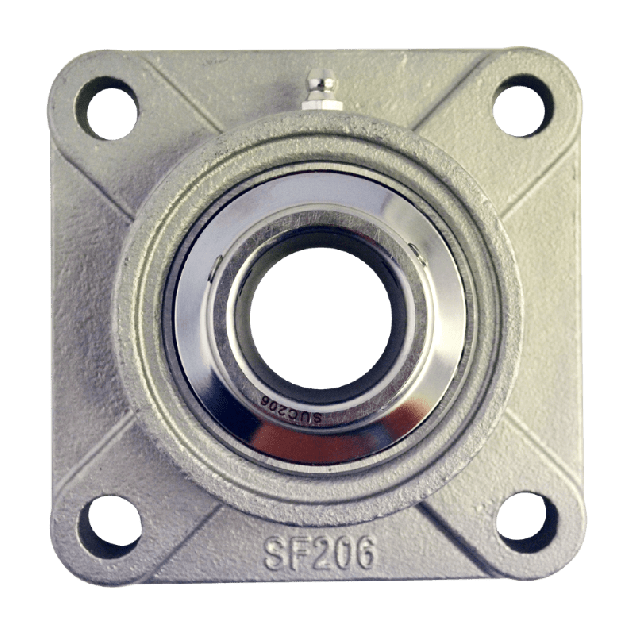

Flange bearing SF Ø30, 4-bolt, stainless steel
SUCF206SThe SF 4-bolt Ø30 stainless steel flange bearing, is a durable and reliable solution designed specifically for demanding environments such as the food industry. This hygienically designed bearing unit ensures optimal performance and requires minimal maintenance, making it an ideal choice for critical applications.
Specifications
Product description
Downloads
€49.49
In stock
Expected shipment: 20-10-2024
More Information
Bolt size
M10
Grease nipple
Straight
Hole distance (mm)
83
Shaft size (mm)
Ø30
Cover
Open
Sealing
Nitrile rubber (NBR)
Model
SF
Mounting
Set screw
Housing type
4-bolt flange bearing
Color
Black
Description
Key features:
- Screw set lock: The bearing unit is securely mounted with a screw set lock mechanism.
- Adjustable pre-lubricated stainless steel ball bearing: The unit features a pre-lubricated stainless steel ball bearing that can be adjusted to suit specific requirements.
- Re-lubrication options: The bearing can be easily re-lubricated using either a stainless steel grease-nipple.
- Wide temperature range: -20°C to +120°C.
- No surface coating required: The stainless steel housings, SUC stainless steel bearings and stainless steel grease nipple eliminate the need for surface coatings.
Materials:
- Stainless steel housings (AISI 304): The housing is constructed from AISI 304 stainless steel.
- SUC stainless steel bearings (AISI 440C): The bearing itself is made from AISI 440C stainless steel.
- Stainless steel grease nipple: The stainless steel grease nipple allows for convenient lubrication.
