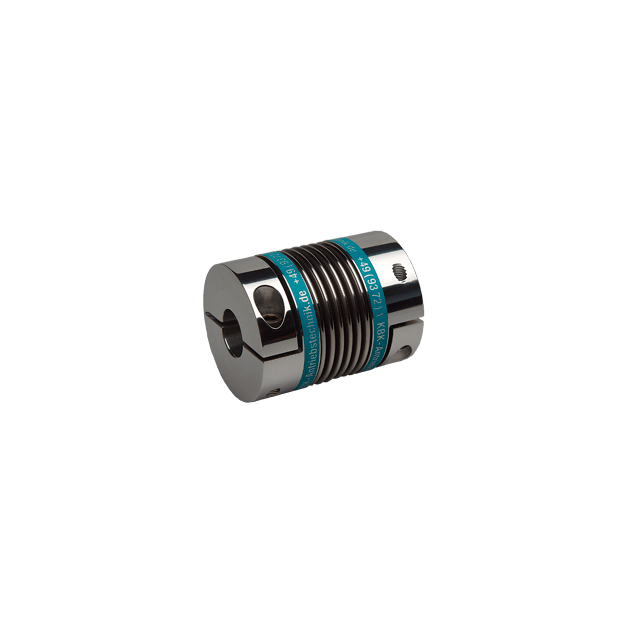

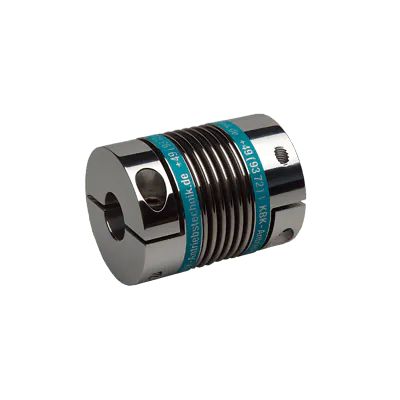

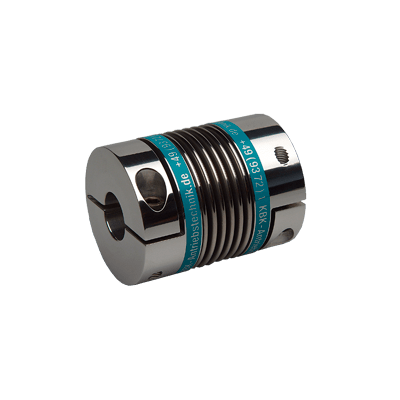

KB4 200 101 N25 N27 metal bellow coupling
HV71015471The KB4 size 200 backlash-free metal bellows coupling with collet clamps is a reliable coupling designed for precision applications. Its key features and specifications make it an ideal choice for connecting servo motors in various industries such as machine tools, automation techniques, packing machines, and woodworking machines.
Specifications
Product description
Downloads
€207.57
Made to order
Expected shipment: 31-01-2025
More Information
Material
Stainless steel and steel
Length (mm)
101
Max. moment (Nm)
200
Manufacturer
KBK
Coupling size
200
Description
Key features:
- High torsional stiffness for enhanced power transmission efficiency
- Compensation of shaft misalignment with low restoring forces, reducing wear and tear
- Easy and convenient assembly for hassle-free installation
Specifications:
- Temperature range: -30°C to +120°C
Materials:
- Bellows: Stainless steel construction ensures durability and resistance to corrosion
- Hub: Made from robust steel, providing strength and stability for reliable performance
Bore specifications:
- Bore D1: Ø25mm H7 with keyway
- Bore D2: Ø27mm H7 with keyway
