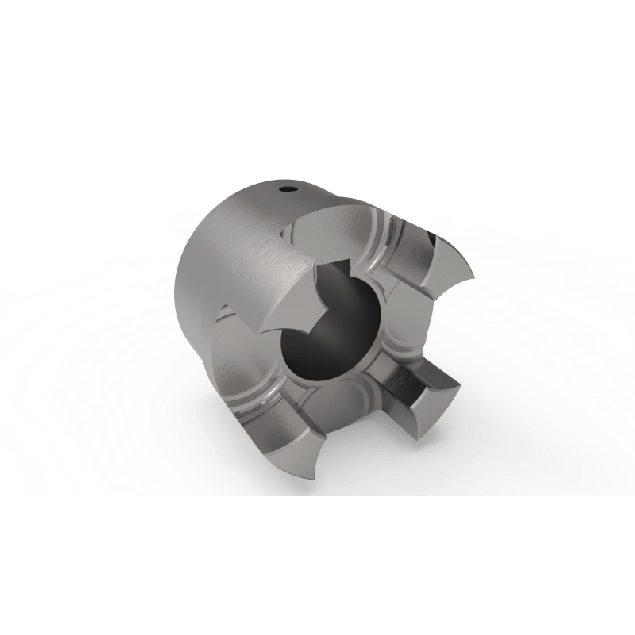

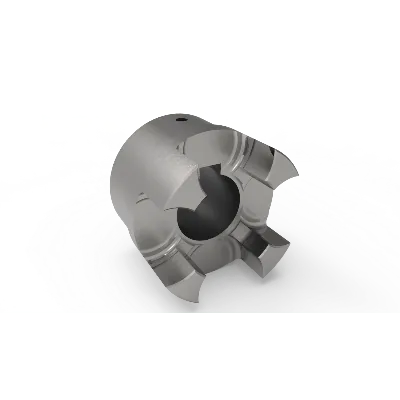

SPIDEX claw coupling hub A55/70, cast iron
HV71005930The SPIDEX claw clutch hub A, size 55/70, is designed to provide performance and reliability in various industrial applications. Crafted from cast iron, this hub secures durability and functionality.
Specifications
Product description
Downloads
€84.23
In stock
Expected shipment: 20-10-2024
More Information
Hub type
A
Material
Cast iron
Length (mm)
160
Max. moment (Nm)
820
Coupling size
55/70
Bore max.
Ø55mm H7
Bore min.
Ø19mm H7
Description
Key features:
- Robust construction: Made from cast iron, ensuring strength and longevity.
- Modular design: This product number includes a hub A, forming a fundamental component of the complete claw coupling system, which comprises 2 hubs and one spider. All components are available for individual purchase, providing flexibility and customization.
- Seamless integration: The hub A effortlessly integrates with both hub A and B, offering compatibility and adaptability within the claw coupling system.
- Easy installation: Characterized by lateral mounting, the claw coupling hub offers a hassle-free installation process that minimizes downtime.
- High clamping Pressure: Boasting impressive clamping pressure, the hub provides secure and efficient power transmission even in demanding applications.
- Low maintenance: Designed for reliability, the claw coupling requires minimal maintenance, reducing operational costs and downtime.
- Temperature resilience: Operating flawlessly within an extensive temperature range from -40°C to +100°C, withstanding short temperature peaks up to +120°C.
- Versatile applications: Ideal for a wide range of industrial settings, the claw clutch hub excels in challenging environments while maintaining peak performance.
