Description
Key features:

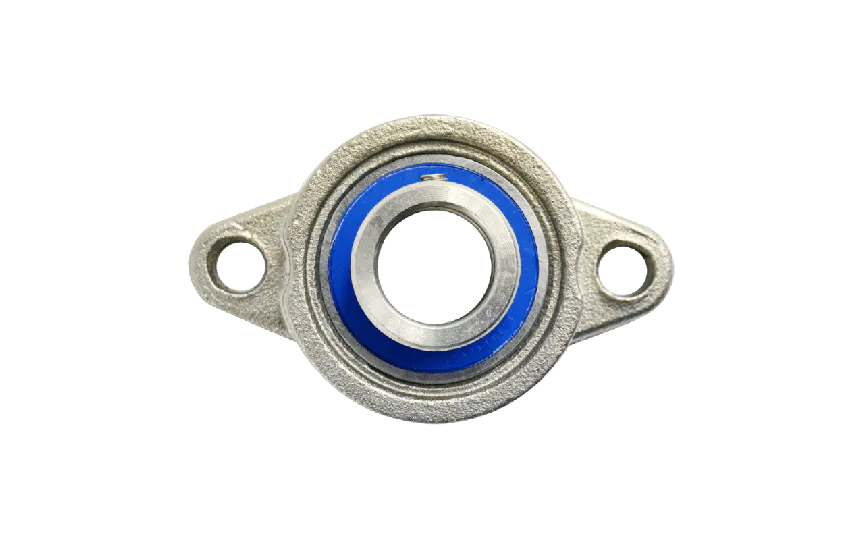

- Extra narrow design: The mini stainless steel flange bearing boasts a compact size that allows for easy installation and space-saving efficiency.
- Hygienic design: Suitable for the food industry and other demanding environments.
- Eccentric collar lock: Provides a secure and adjustable fit for optimal performance.
- No surface coating required: With no surface coating needed, these stainless steel bearings are low-maintenance and hassle-free.
Materials:
- Stainless steel housings: The housing of the flange bearing is constructed from AISI 304 stainless steel.
- Stainless steel bearings: The bearings themselves are made from AISI 440C stainless steel.
Specifications
Grease nipple
None
Hole distance (mm)
71
Shaft size (mm)
Ø20
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
MUFL
Mounting
Eccentric
Housing type
2-bolt flange bearing
House material
Stainless steel
Country of origin
CHN
HS-Code
84832000.000000
ERP net weight (Kg)
0.200000
Downloads
Foreign trade
HS-Code
84832000
ERP net weight (Kg)
0.20
Country of origin
CHN
