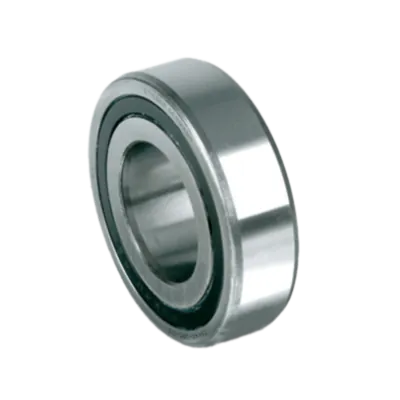

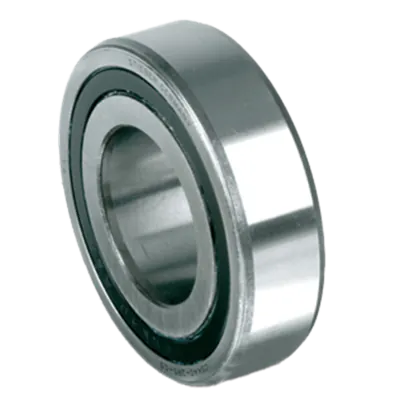

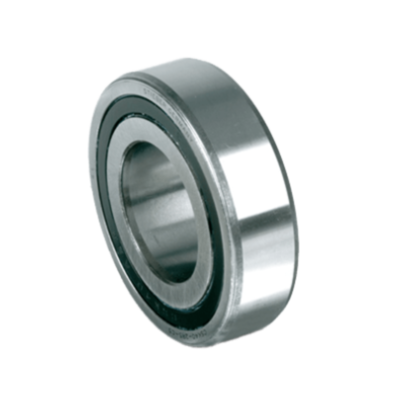

Stieber freewheel CSK..2RS 20mm, steel
HV73100400Steiber's CSK..2RS combined bearing freewheel in size 20 combined bearing freewheel. It's a sprag type freewheel that works well with a 62 series ball bearing. It also has a bearing-supported design, which means it can handle heavy loads and fit different kinds of applications.
Specifications
Product description
Downloads
€116.25
Made to order
Expected shipment: 06-01-2025
More Information
Type
CSK
Drag torque (Ncm)
6
Producer
Stieber
Max. torque (Nm)
50
Shaft size (mm)
Ø20
Description
Key features:
- Sprag type freewheel: Ensures optimal transmission efficiency and low friction operation.
- Integrated ball bearing (62 series): Provides enhanced durability and stability during operation.
- Grease lubrication: Pre-lubricated for convenience and minimal maintenance requirements.
- Dust protection: Safeguarded against particles larger than 0.3 mm for prolonged service life.
- Recommended "nylos" type seals: Ideal for working temperatures exceeding 50°C, offering extra protection.
- Versatile lubrication options: Allows for oil bath lubrication, providing flexibility for varying operating conditions.
Downloads
CSK Installation and Maintenance Instructions
CSK Installation and Maintenance Instructions.pdf
Download file
