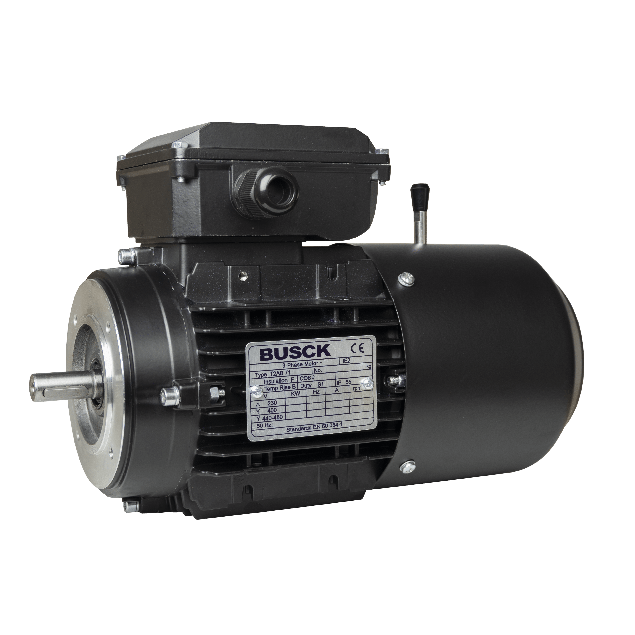

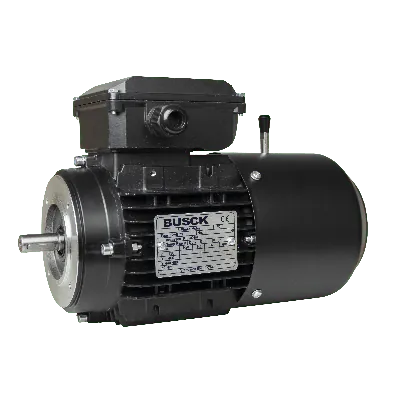

Busck AC brake motor T2AB71B-6, 0.25kW, 910RPM, 230/400V, 50Hz, aluminium

T2AB71B-6

Key attributes include: Rated output: 0.25 kW Rated speed: 900 RPM Operating speed: 910 RPM Voltage connection: 230/400 V, 50 Hz Mounting type: B14 Cooling: TEFC (Totally Enclosed Fan Cooled) Shaft diameter: Ø14 mm Material: Aluminium housing Protection class: IP 55 Efficiency standard: IE2 Poles: 6 Flange bolt circle diameter (BCD): 85 mm IEC frame size: 71 Manufacturer: BusckThis model is suitable for applications requiring reliable performance and compact construction.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 55

Model

T2AB71B-6

Speed (RPM)

910

Rated output (kW)

0.25

Efficiency (% FL)

61.6

Voltage connection (Δ/Y)

230/400

Rated current at voltage

1.55/0.89

Nominal torque (Nm)

2.62

Start current ratio (IA/IN)

3.3

Mounting

B14

BCD

Poles

Efficiency standard

IE2

Shaft diameter (mm)

Ø14

Cooling

TEFC

HS-Code

85015100.000000

Description

Key features:

IP55 rating: With an IP55 rating, the motor is protected against dust and water ingress, making it suitable for both indoor and outdoor use.
High power output: The motor boasts a power rating of 0.25kW, providing sufficient power for a wide range of industrial tasks.
Optimal speed: Operating at 910RPM, the motor delivers efficient performance and precise control.
Versatile voltage: The motor supports a voltage range of 230/400V, accommodating different power supply configurations.
B14 flange mounting: The B14 flange allows for easy and secure mounting.Brake torque 6 Nm: The motor's brake torque of 6 Nm enables quick and reliable braking, enhancing safety during operation.
High efficiency: Rated at IE2, the motor meets high energy efficiency standards, resulting in reduced energy consumption and operational costs.

Specifications:
