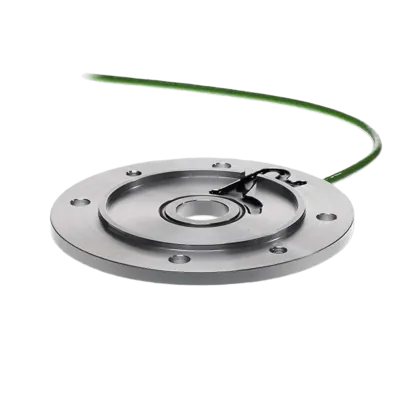

BEGE flange encoder MN-090-11-00087, 8 pulses, 2m cable, aluminium
HV500040The BEGE flange encoder MIG NOVA+ is a high-performance incremental encoder, designed to meet the demands of precision-driven environments where hygiene is of utmost importance
Specifications
Product description
Downloads
€416.00
In stock
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
More Information
IP classification
IP 55
Pulses
8
Outer diameter (mm)
Ø90
Flange thickness (mm)
7
Encoder Material
Aluminium
Cable length (m)
2
Shaft diameter (mm)
Ø11
IEC norm
63B14
BCD norm
75
HS-Code
90292038.000000
Description
Key features:
- Magnetic rotary encoder for accurate and reliable signal measurement.
- High signal quality and precise signal processing for optimal performance.
- Compatible with IEC standard electric motors, ensuring versatility and ease of installation.
- Contactless signal measurement technology for enhanced stability and longevity.
- Starting with a standard IP55 rating, it can be elevated to IP67 depending on the sealant applied between the motor and machine flange.
- Intermediate flange design eliminates the need for an extended fan cover, simplifying installation and maintenance processes.
Specifications:
- For motor size: B14.
- Temperature range: -30°C to +80°C.
Materials:
- Flange: Constructed from durable aluminum.
- Hub: Made from stainless steel.
