3 Shafts

Right angle gearboxes with 3 shafts from BJ-Gear and Poggi. Compact, efficient, and ideal for space-saving power transmission. Available in various configurations
Poggi right angle gearbox 5033, R1:2, D1/2, Ø25f7, 3-way, Stainless steel
Poggi right angle gearbox 5033, R1:2, D1/2, Ø25f7, 3-way, Stainless steel BJ item number: HV3045033121 Supplier item number: 185033121
  • Shaft diameter Ø25f7
  • Number of shafts 3
  • Material Stainless steel
  • Max torque at 1400RPM (Nm) 23
  • Max RPM (RPM) 1400
  • Ratio R1:2
  • Direction D1/2
  • Backlash Normal 15' - 30'
€2,204.00
excl. VAT

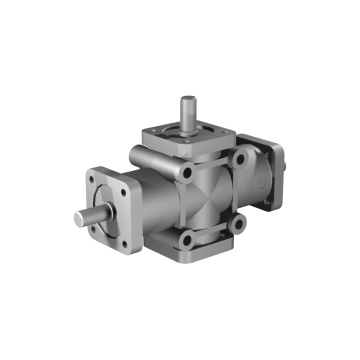

Poggi right angle gearbox 2007, R1:1, D1, Ø14h7, 3-way, Aluminium
Poggi right angle gearbox 2007, R1:1, D1, Ø14h7, 3-way, Aluminium BJ item number: HV3042007111 Supplier item number: 182007111
  • Shaft diameter Ø14h7
  • Number of shafts 3
  • Material Aluminium
  • Max torque at 1400RPM (Nm) 13
  • Max RPM (RPM) 3000
  • Ratio R1:1
  • Direction D1
  • Backlash Normal 15' - 30'
€506.00
excl. VAT
Poggi right angle gearbox 2007, R1:2, D1, Ø14h7, 3-way, Aluminium
Poggi right angle gearbox 2007, R1:2, D1, Ø14h7, 3-way, Aluminium BJ item number: HV3042007121 Supplier item number: 182007121
  • Shaft diameter Ø14h7
  • Number of shafts 3
  • Material Aluminium
  • Max torque at 1400RPM (Nm) 10
  • Max RPM (RPM) 1400
  • Ratio R1:2
  • Direction D1
  • Backlash Normal 15' - 30'
€524.00
excl. VAT
Poggi right angle gearbox 2007, R1:2, D2, Ø14h7, 3-way, Aluminium
Poggi right angle gearbox 2007, R1:2, D2, Ø14h7, 3-way, Aluminium BJ item number: HV3042007122 Supplier item number: 182007122
  • Shaft diameter Ø14h7
  • Number of shafts 3
  • Material Aluminium
  • Max torque at 1400RPM (Nm) 10
  • Max RPM (RPM) 1400
  • Ratio R1:2
  • Direction D2
  • Backlash Normal 15' - 30'
€524.00
excl. VAT
Poggi right angle gearbox 2007, R1:2, D2, Ø14h7, 3-way, Reduced backlash, Aluminium
Poggi right angle gearbox 2007, R1:2, D2, Ø14h7, 3-way, Reduced backlash, Aluminium BJ item number: HV3042007122S Supplier item number: 182007122S
  • Shaft diameter Ø14h7
  • Number of shafts 3
  • Material Aluminium
  • Max torque at 1400RPM (Nm) 10
  • Max RPM (RPM) 1400
  • Ratio R1:2
  • Direction D2
  • Backlash Reduced 5' til 10'
€603.00
excl. VAT
Poggi right angle gearbox 2008, R1:2, D1/2, Ø14h7, 3-way, Reduced backlash, Aluminium
Poggi right angle gearbox 2008, R1:2, D1/2, Ø14h7, 3-way, Reduced backlash, Aluminium BJ item number: HV3042008121S Supplier item number: 182008121S
  • Shaft diameter Ø14h7
  • Number of shafts 3
  • Material Aluminium
  • Max torque at 1400RPM (Nm) 10
  • Max RPM (RPM) 1400
  • Ratio R1:2
  • Direction D1/2
  • Backlash Reduced 5' til 10'
€343.00
excl. VAT
Poggi right angle gearbox 2028, R1:1, D1/2, Ø19h7 - Ø19H7, 3-way, Reduced backlash, Aluminium
Poggi right angle gearbox 2028, R1:1, D1/2, Ø19h7 - Ø19H7, 3-way, Reduced backlash, Aluminium BJ item number: HV3042028111S Supplier item number: 182028111S
  • Shaft diameter Ø19h7 - Ø19H7
  • Number of shafts 3
  • Material Aluminium
  • Max torque at 1400RPM (Nm) 38
  • Max RPM (RPM) 3000
  • Ratio R1:1
  • Direction D1/2
  • Backlash Reduced 5' til 10'
€565.00
excl. VAT

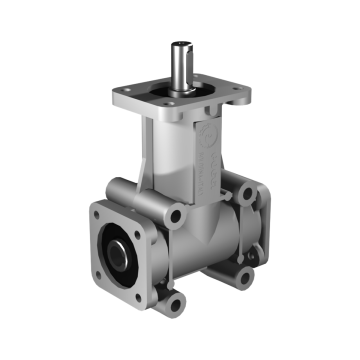

Poggi right angle gearbox 2028, R1:2, D1/2, Ø19h7 - Ø19H7, 3-way, Aluminium
Poggi right angle gearbox 2028, R1:2, D1/2, Ø19h7 - Ø19H7, 3-way, Aluminium BJ item number: HV3042028121 Supplier item number: 182028121
  • Shaft diameter Ø19h7 - Ø19H7
  • Number of shafts 3
  • Material Aluminium
  • Max torque at 1400RPM (Nm) 22
  • Max RPM (RPM) 1400
  • Ratio R1:2
  • Direction D1/2
  • Backlash Normal 15' - 30'
€581.00
excl. VAT

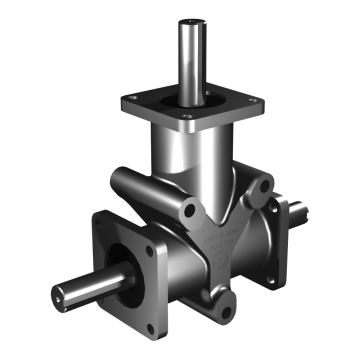

Poggi right angle gearbox 5033, R1:1, D1/2, Ø25f7, 3-way, Stainless steel
Poggi right angle gearbox 5033, R1:1, D1/2, Ø25f7, 3-way, Stainless steel BJ item number: HV3045033111 Supplier item number: 185033111
  • Shaft diameter Ø25f7
  • Number of shafts 3
  • Material Stainless steel
  • Max torque at 1400RPM (Nm) 31
  • Max RPM (RPM) 3000
  • Ratio R1:1
  • Direction D1/2
  • Backlash Normal 15' - 30'
€2,004.00
excl. VAT
Poggi reversing gearbox 2023, R1:1, D1/2, Ø19h7, 3-way, Aluminium
Poggi reversing gearbox 2023, R1:1, D1/2, Ø19h7, 3-way, Aluminium BJ item number: HV3042023000 Supplier item number: 182023
  • Shaft diameter Ø19h7
  • Number of shafts 3
  • Material Aluminium
  • Max torque at 1400RPM (Nm) 35
  • Max RPM (RPM) 1400
  • Ratio R1:1
  • Direction D1/2
  • Backlash Normal 15' - 30'
€874.00
excl. VAT

Items 1-10 of 75
