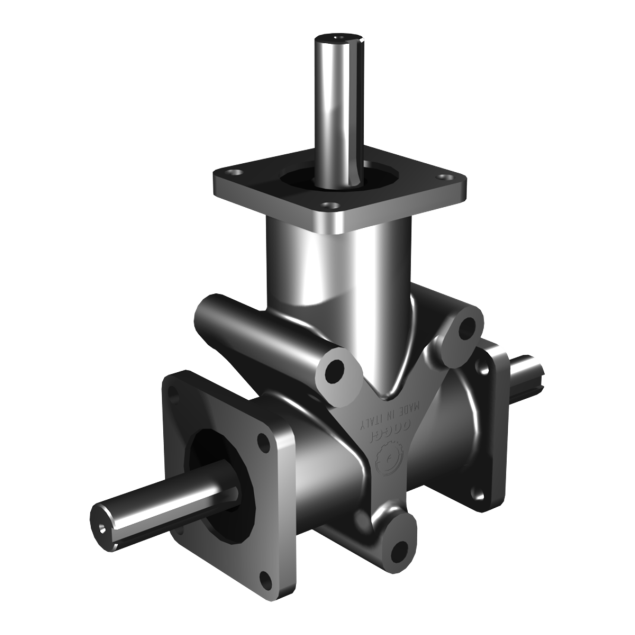

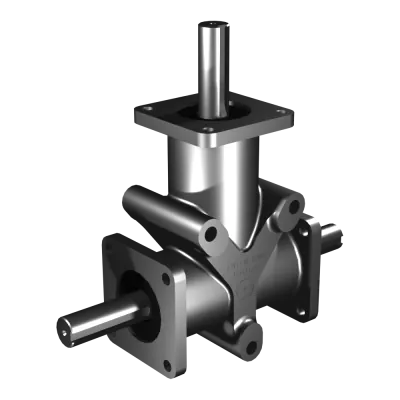

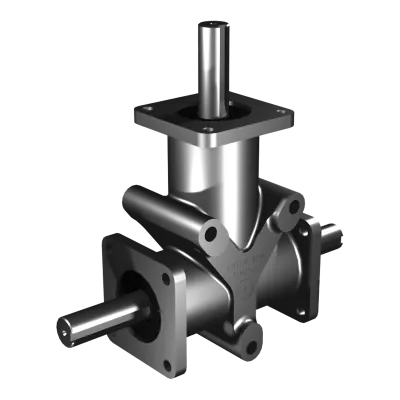

Poggi right angle gearbox 5033, R1:2, D1/2, Ø25f7, 3-way, Stainless steel

HV3045033121

The Poggi right angle gearbox 5033, R1:2, D1/2, Ø25f7, 3-way, Stainless steel is engineered for power redirection in multi-axis automation systems. Designed with a 3-shaft D1/2 layout, it allows torque input through one shaft with dual perpendicular outputs, enabling mechanical symmetry and efficient power division.

The 1:2 gear ratio reduces output speed to half while increasing torque output — ideal for drive systems requiring controlled rotation, such as conveyors, rotary actuators, or indexing tables. The Ø25f7 precision shaft ensures accurate coupling and alignment, minimizing vibration and mechanical wear.

Constructed from EN 1.4301 stainless steel, this gearbox is corrosion-resistant and designed to operate in demanding, hygienic environments. With a maximum speed of 1400 RPM and a nominal torque capacity of 23 Nm at 1400 RPM, the unit supports light-to-medium-duty applications requiring consistent torque delivery and low maintenance

Typical applications:

Dual-sided servo drives in packaging lines
Synchronised dosing mechanisms in hygienic production
Stainless steel conveyor systems with mirrored layouts
Indexing tables requiring reduced and balanced output speed

€2,204.00

Excluded taxes and delivery costs

Made to order

Expected shipment:

Estimated Shipping:

Description

Engineered for performance in demanding environments, the Poggi 5033 right-angle gearbox delivers high reliability, low maintenance, and superior hygiene control. This 3-way gearbox features a 1:2 gear ratio and Ø25 mm shafts with f7 precision tolerance, ensuring precise torque transfer and compatibility with a wide range of industrial applications.

Crafted from AISI 316 stainless steel, the housing offers exceptional corrosion resistance and durability, making it ideal for sectors with strict sanitation requirements such as food processing, pharmaceuticals, and offshore installations. The spiral bevel gear design guarantees smooth, quiet operation and high transmission efficiency even under dynamic loads.

A sealed-for-life, lubrication-free design ensures zero maintenance and eliminates the risk of contamination, supporting long-term reliability and lower total cost of ownership. The micropolished surface enhances cleanability and meets hygienic design standards, while the versatile mounting options simplify integration into existing systems.

Whether you're upgrading a system for better performance or specifying gearboxes for new hygienic installations, the Poggi 5033 is a robust, flexible, and proven solution that stands up to the toughest industrial challenges.

Gear ratio: 1:2 (R1:2)
Halves output speed, increases torque – suitable for controlled motion systems.
Configuration: D1/2, 3-shaft
Power enters via one shaft and exits in two 90° directions – ideal for power splitting.
Shaft size: Ø25f7
Ensures precise and tight tolerance fits for low-backlash setups.
Material: Stainless steel (EN 1.4301)
Fully corrosion-resistant, suited for washdown and cleanroom environments.
Backlash: 15–30′
Supports applications with moderate precision needs.
Nominal torque: 23 Nm @ 1400 RPM
Designed for stable torque output in industrial systems.
Max speed: 1400 RPM
