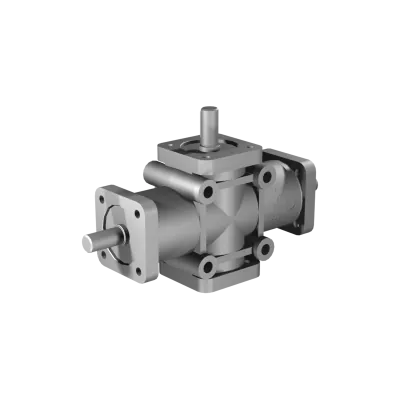

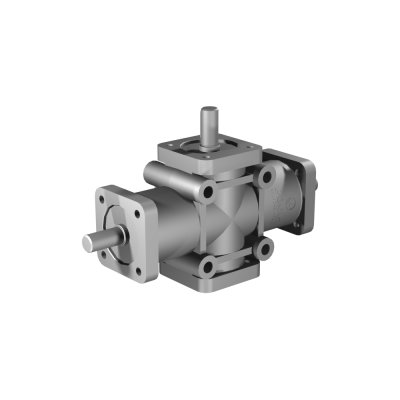

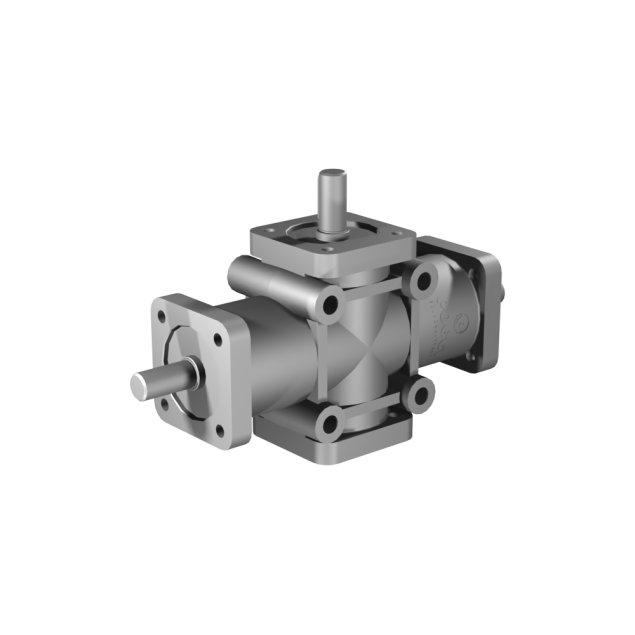

Poggi right angle gearbox 2007, R1:2, D2, Ø14h7, 3-way, Aluminium

HV3042007122

The Poggi right angle gearbox 2007, R1:2, D2, Ø14h7, 3-way, Aluminium is a precision-machined gearbox designed for torque increase and 90° power transfer across three axes. With a gear ratio of 2:1, it reduces output speed while increasing torque, making it suitable for applications requiring controlled motion, such as synchronized conveyors, automation tooling, or low-speed actuators.

The D2 configuration features three Ø14h7 shafts optimized for perpendicular rotation and space-saving layouts. The aluminium housing provides low weight and structural stability, ideal for mobile or compact equipment.

With 10 Nm nominal torque at 1400 RPM and operational speeds up to 1400 RPM, this gearbox balances mechanical strength with compact form factor and corrosion resistance.

€524.00

Excluded taxes and delivery costs

Made to order

Expected shipment:

Estimated Shipping:

Description

Poggi Right Angle Gearbox – Model 2007, R1:2, Ø14h7, 3-Way Output, D2, Aluminium

The Poggi 2007 gearbox in D2 configuration is a high-efficiency, 3-way right-angle gear unit designed for dual-output motion control applications. With a 1:2 gear ratio, it delivers increased torque at reduced output speed, providing a balanced, durable drive solution for synchronized systems such as conveyors, indexing units, and parallel axes.

Equipped with Ø14 mm h7-tolerance shafts, the gearbox ensures precise fit and reliable shaft-to-shaft alignment. The aluminium housing offers a lightweight yet robust structure, ideal for mobile or space-constrained machine installations. Its excellent heat dissipation and corrosion resistance make it suitable for continuous-duty industrial environments.

Powered by spiral bevel gear technology, the gearbox ensures low-noise, high-efficiency performance with minimal backlash and long operating life. The D2 layout supports dual outputs, enabling uniform torque distribution across multiple axes.

Pre-lubricated and sealed for life, the Poggi 2007 is a maintenance-free, high-precision drive unit that combines performance, modularity, and installation flexibility.

Gear ratio: 2:1 (R1:2)
Increases torque while reducing output speed for precise control
Configuration: D2, 3-shaft
Enables three-way power transfer with right-angle orientation
Shaft diameter: Ø14h7
Tight tolerance for accurate and reliable torque transmission
Housing material: Aluminium
Lightweight, corrosion-resistant and easy to integrate
Backlash: 15–30′
Ensures precise positioning with minimal mechanical play
Nominal torque: 10 Nm @ 1400 RPM
Maximum speed: 1400 RPM
