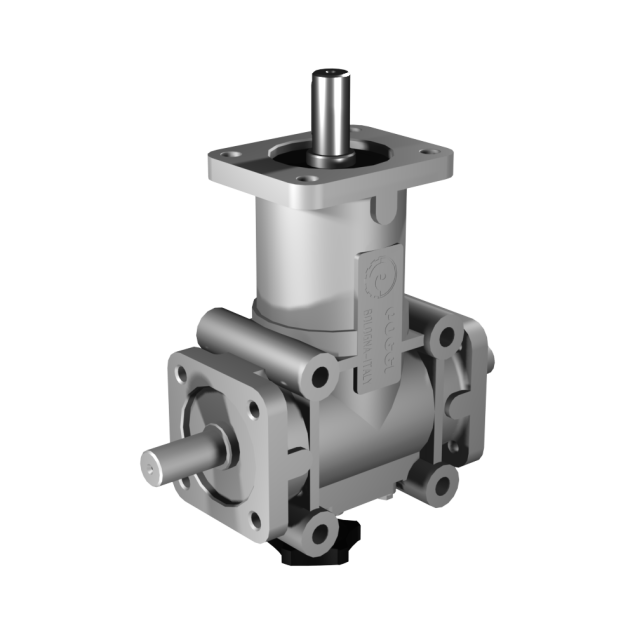

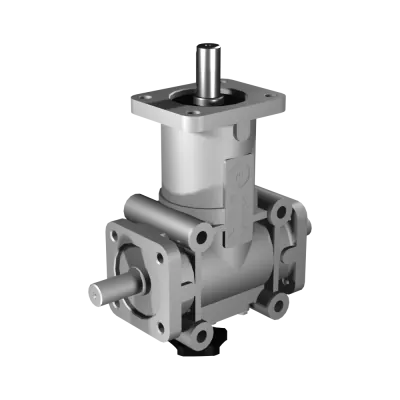

Poggi reversing gearbox 2023, R1:1, D1/2, Ø19h7, 3-way, Aluminium
HV3042023000The Poggi reversing gearbox 2023, R1:1, D1/2, Ø19h7, 3-way, Aluminium is engineered for mechanical systems that require bi-directional power output in three axes. With a 1:1 gear ratio, it delivers consistent speed and torque across all outputs — ideal for synchronised reversing systems, switching mechanisms, or bidirectional conveyor drives.
Equipped with three Ø19h7 precision shafts in D1/2 configuration, the gearbox supports compact and symmetrical installation in multi-axis layouts. Its aluminium housing ensures corrosion resistance and reduced system weight, making it highly suitable for use in robotics, automation, and packaging lines.
Rated for 35 Nm at 1400 RPM and a maximum speed of 1400 RPM, the gearbox maintains stable performance under standard industrial loads.
Made to order
Expected shipment:
More Information
Description
Poggi Reversing Gearbox – Model 2023, R1:1, Ø19h7, 3-Way Output, D1/2, Aluminium
The Poggi 2023 is a robust and compact reversing gearbox engineered for mechanical systems requiring multi-directional torque control. Its 1:1 gear ratio ensures that input and output shafts rotate at the same speed while allowing for controlled reversal of drive direction — ideal for setups requiring bidirectional or mirrored motion.
This model features Ø19 mm h7-tolerance shafts in a 3-way D1/2 configuration, providing versatile mounting and output flexibility across three axes. Its compact format and aluminium housing make it lightweight and corrosion-resistant — perfectly suited for integration into automation systems, handling equipment, and drive modules with strict space or weight limitations.
Powered by spiral bevel gears, the gearbox ensures efficient torque transmission, low noise levels, and smooth operation under continuous-duty conditions. It is factory-lubricated and sealed for life, offering long-term reliability with no maintenance downtime.
Designed to support synchronized directional control in compact machinery, the Poggi 2023 is a versatile and dependable gearbox for advanced mechanical system layouts.
-
Gear ratio: 1:1 (R1:1)
Delivers mirrored torque and speed for reversing or parallel-driven systems. -
Configuration: D1/2, 3-way layout
Output torque is distributed equally across three axes — ideal for synchronised movements. -
Shafts: Ø19h7
Precision-machined steel shafts for low backlash and reliable transmission. -
Housing: Aluminium
Lightweight and corrosion-resistant — optimal for modular installations. -
Nominal torque: 35 Nm @ 1400 RPM
-
Maximum speed: 1400 RPM
-
Backlash: 15–30′
