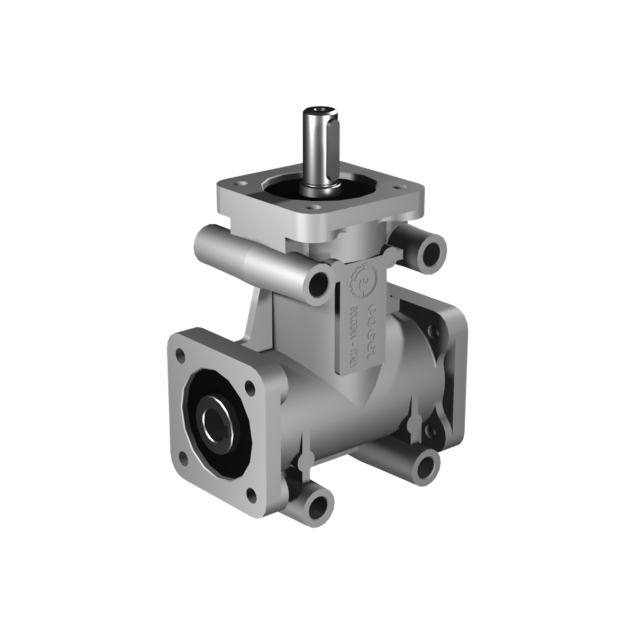

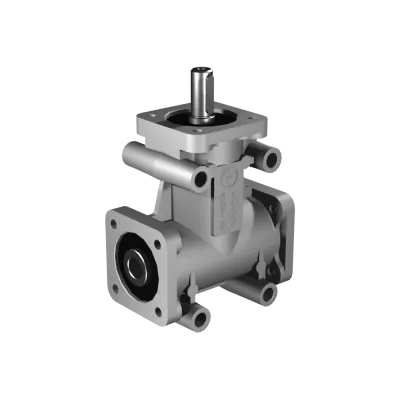

Poggi right angle gearbox 2012, R1:3, D1/2, Ø14h7 / Ø14H7, 3-way, Reduced backlash, Aluminium

HV3042012131S

The Poggi right angle gearbox 2012, R1:3, D1/2, Ø14h7, 3-way, Aluminium – Stainless Shaft Version is a compact, high-torque solution for precise mechanical power transmission in limited-space environments. With a gear ratio of 3:1, it reduces output speed to one-third of the input while tripling the torque, ideal for slow, force-driven movements in automation, packaging, or lift applications.

Equipped with three precision-machined stainless steel shafts (Ø14h7) in D1/2 configuration, the gearbox enables 3-way directional output. The aluminium housing ensures excellent corrosion resistance and weight optimization, essential for integration into mobile or hygienic systems.

Rated for 8 Nm at 400 RPM with a maximum speed capacity of 1000 RPM, this gearbox offers stable, maintenance-efficient performance for demanding conditions.

€437.00

Excluded taxes and delivery costs

Made to order

Expected shipment:

Estimated Shipping:

Description

Poggi Right Angle Gearbox – Model 2012, R1:3, Ø14h7/Ø14H7, 3-Way Output, D1/2, Reduced Backlash, Aluminium

The Poggi 2012 is a precision-engineered 3-way right-angle gearbox designed for synchronized torque distribution in compact systems. With a 1:3 gear ratio, it reduces output speed while increasing torque, making it ideal for driven assemblies that require stable, repeatable performance.

Its D1/2 configuration supports flexible shaft layouts, with dual Ø14 mm h7/H7 shafts for accurate coupling. The use of reduced backlash spiral bevel gears ensures minimized angular play — a key advantage in servo-driven applications, automated motion control, and robotics.

Constructed from lightweight aluminium, the gearbox is corrosion-resistant and thermally efficient, making it well-suited for modular machine integration or mobile industrial platforms. Its sealed-for-life design eliminates the need for maintenance, supporting long operational uptime.

From synchronized conveyors to multi-axis actuators, the Poggi 2012 offers the precision, modularity, and reliability needed for today’s advanced automation environments.

Gear ratio: 3:1 (R1:3)
Triples the torque while reducing speed — well-suited for controlled motion under load.
Configuration: D1/2, 3-shaft
Distributes power output over three orthogonal axes.
Shafts: Ø14h7 stainless steel
Rust-resistant and precision-aligned for robust duty cycles.
Housing: Aluminium
Lightweight and corrosion-resistant for long-term use.
Nominal torque: 8 Nm @ 400 RPM
Max speed: 1000 RPM
