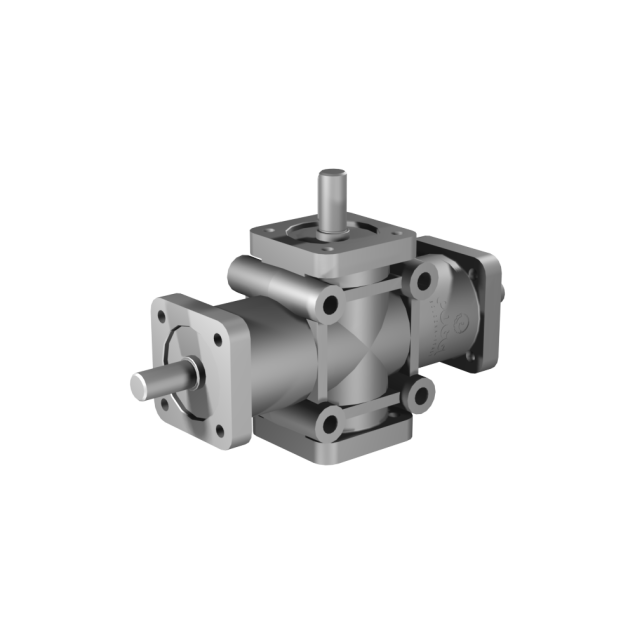

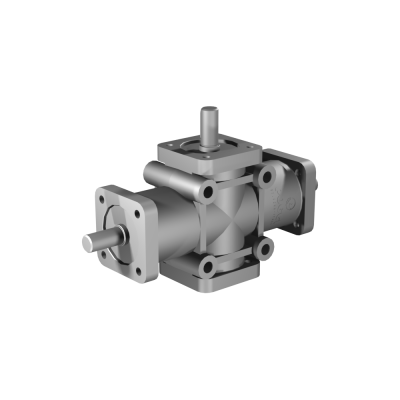

Poggi right angle gearbox 2007, R1:1, D1, Ø14h7, 3-way, Aluminium

HV3042007111

The Poggi right angle gearbox 2007, R1:1, D1, Ø14h7, 3-way, Aluminium is a compact and efficient transmission solution designed for distributing motion at 90° angles within industrial setups. With a 1:1 gear ratio, it provides synchronized torque transfer without speed modification — making it ideal for conveyor belts, rotating machinery, or dual-drive mechanisms.

This 3-shaft gearbox with a D1 configuration enables seamless torque transmission between input and dual output shafts arranged at right angles. The Ø14h7 shafts allow for tight coupling and precision alignment, ensuring consistent motion with minimal backlash (15–30′).

Crafted from lightweight aluminium, the gearbox supports installation in mobile or space-limited systems while offering corrosion resistance. It handles up to 13 Nm of torque at 1400 RPM and supports speeds up to 3000 RPM.

€506.00

Excluded taxes and delivery costs

Made to order

Expected shipment:

Estimated Shipping:

Description

Engineered for performance, the Poggi 2007 delivers a 3-way layout with a 1:1 gear ratio and Ø14h7 shaft interfaces (D1). Built with a lightweight aluminium housing that balances strength, low weight, and heat efficiency. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.

Gear ratio: 1:1 (R1:1)
Maintains input-output speed — ideal for synchronous applications.
Configuration: D1, 3-shaft layout
Facilitates right-angle torque transfer between input and dual outputs.
Shaft diameter: Ø14h7
Precision fit with low backlash for accurate power transmission.
Material: Aluminium
Lightweight, corrosion-resistant, and easy to integrate.
Backlash: 15–30′
Nominal torque: 13 Nm @ 1400 RPM
Maximum speed: 3000 RPM
