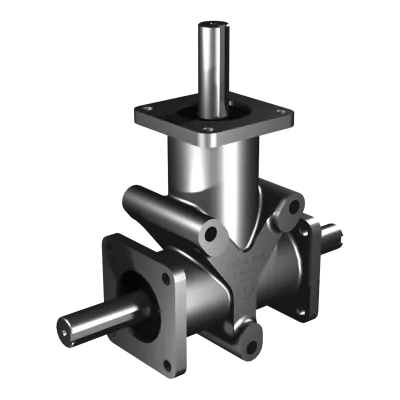

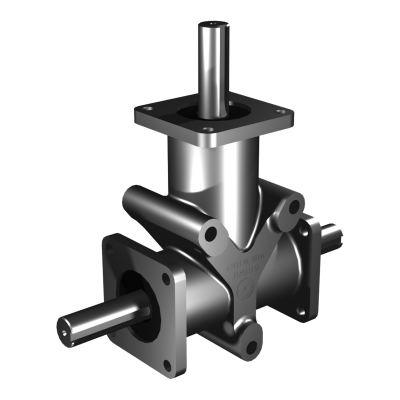

Poggi right angle gearbox 5033, R1:1, D1/2, Ø25f7, 3-way, Stainless steel
HV3045033111The Poggi right angle gearbox 5033, R1:1, D1/2, Ø25f7, 3-way, Stainless steel is engineered for advanced multi-directional torque distribution in hygienic environments. Featuring a 1:1 gear ratio, this gearbox enables synchronized output on two perpendicular axes, making it highly suitable for systems requiring mirrored motion, torque splitting, or dual-output functionality.
Equipped with three Ø25f7 precision shafts and a D1/2 configuration, it transfers power at right angles with minimal backlash (15–30′), providing smooth performance in servo-driven setups or cleanroom machinery. The EN 1.4301 stainless steel housing ensures excellent corrosion resistance and full compatibility with washdown procedures.
It delivers 31 Nm torque at 1400 RPM and supports speeds up to 3000 RPM, offering robust and versatile functionality across demanding industrial automation scenarios.
Made to order
Expected shipment:
More Information
Description
Poggi Right Angle Gearbox – Model 5033, R1:1, Ø25f7, 3-Way Output, D1/2, Stainless Steel
The Poggi 5033 is a high-performance 3-way right-angle gearbox designed for hygiene-sensitive and corrosion-critical industries such as food processing, pharmaceuticals, and offshore systems. With a 1:1 gear ratio, this model delivers balanced torque across three axes, making it suitable for synchronized motion and evenly distributed power transmission.
Its D1/2 configuration features Ø25 mm shafts with f7 precision tolerance, enabling secure, low-backlash shaft coupling in high-load conditions. The entire housing is manufactured from AISI 316 stainless steel, ensuring long-term corrosion resistance, chemical durability, and compliance with stringent hygiene standards.
Internally, spiral bevel gears provide smooth, quiet, and efficient torque transfer, while the sealed-for-life lubrication eliminates maintenance and minimizes contamination risk. The gearbox's micropolished surfaces simplify washdown procedures and reduce residue accumulation, helping you meet critical cleanliness requirements.
Whether used in a CIP-compatible environment, a saline atmosphere, or a cleanroom, the Poggi 5033 offers robust mechanical performance and uncompromising hygiene control — all in a compact, modular format.
-
Gear ratio: 1:1 (R1:1)
Maintains consistent rotational speed across all outputs — ideal for synchronized multi-axis systems. -
Configuration: D1/2, 3-shaft layout
Dual-output configuration enables power split between two 90° axes. -
Shaft diameter: Ø25f7
Ensures precise shaft coupling and minimal vibration under load. -
Material: Stainless steel (EN 1.4301)
Corrosion-resistant and suitable for hygienic and wet environments. -
Backlash: 15–30′
-
Nominal torque: 31 Nm @ 1400 RPM
-
Maximum speed: 3000 RPM
