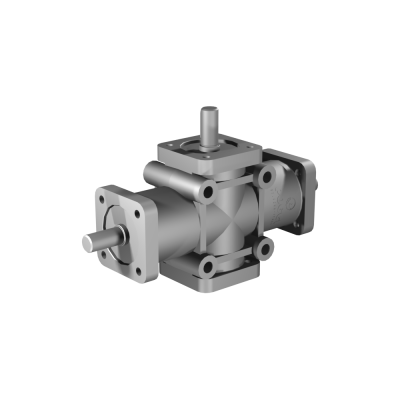

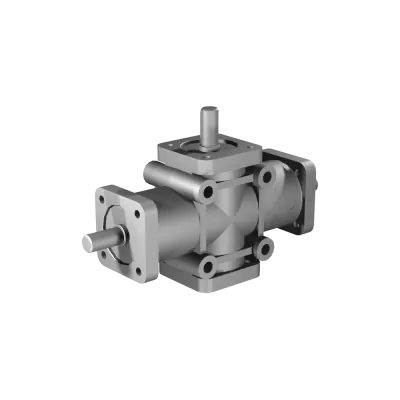

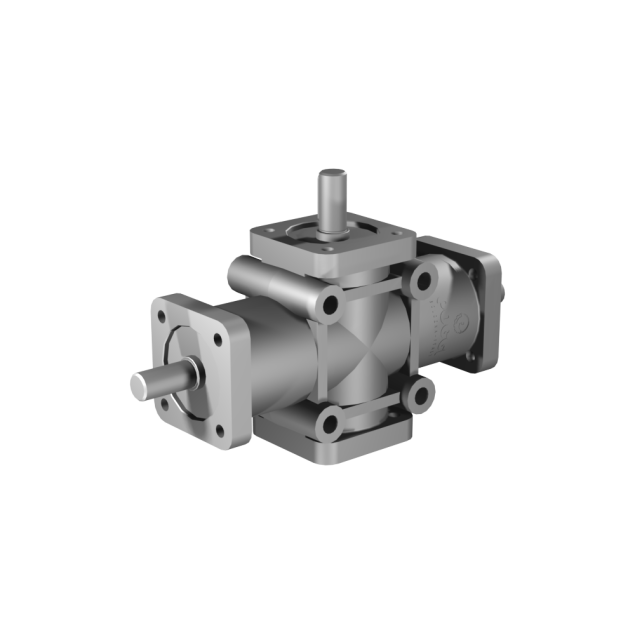

Poggi right angle gearbox 2007, R1:2, D2, Ø14h7, 3-way, Reduced backlash, Aluminium
HV3042007122SThe Poggi right angle gearbox 2007, R1:2, D2, Ø14h7, 3-way, Aluminium – Stainless Shaft Version is engineered for torque-boosting power transfer in confined or hygienic environments. With a 2:1 gear ratio, this gearbox halves the rotational speed while doubling torque, making it ideal for applications such as lifting systems, torque-intensive drive units, or washdown-duty mechanical assemblies.
It features a D2 configuration with three Ø14h7 stainless steel shafts, allowing for high-precision torque transmission across right-angle axes. The stainless steel shafts ensure corrosion resistance in humid, hygienic, or food-grade settings. The aluminium housing offers low weight and robust structural stability.
Delivering up to 10 Nm at 1400 RPM and supporting maximum speeds of 1400 RPM, this gearbox is well-suited for synchronized drives that require both torque amplification and sanitary design.
Made to order
Expected shipment:
More Information
Description
The Poggi 2007 R1:2 D2 right-angle gearbox is a compact, high-precision drive solution tailored for automation, robotics, and synchronized motion systems. With a 1:2 gear ratio, it increases torque while reducing speed, making it ideal for applications requiring controlled, high-load performance.
Equipped with dual Ø14 mm shafts (h7 tolerance) in a D2 3-way configuration, the gearbox enables simultaneous bi-directional power transmission, streamlining multi-axis mechanical design. The reduced backlash design ensures angular precision and positional accuracy—critical in servo-controlled environments and automated equipment where repeatability and control matter.
The lightweight aluminium housing offers a balance of strength, thermal efficiency, and corrosion resistance. Internally, spiral bevel gears provide quiet, efficient torque transfer, while sealed-for-life lubrication ensures maintenance-free operation.
Whether deployed in packaging machines, pick-and-place systems, or synchronized conveyor drives, the Poggi 2007 R1:2 D2 delivers the precision and durability demanded by today’s performance-driven industries.
-
Gear ratio: 2:1 (R1:2)
Reduces speed while increasing output torque — ideal for force-demanding systems. -
Configuration: D2, 3-shaft layout
Enables right-angle, multi-axis torque distribution. -
Shaft diameter: Ø14h7 (Stainless steel)
Precision shafts offer corrosion resistance for hygienic applications. -
Material: Aluminium housing
Lightweight yet durable — easy to mount and corrosion-resistant. -
Nominal torque: 10 Nm @ 1400 RPM
-
Maximum speed: 1400 RPM
