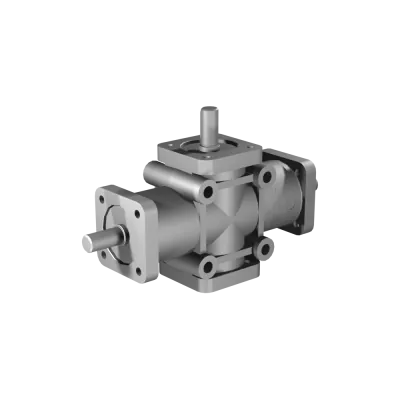

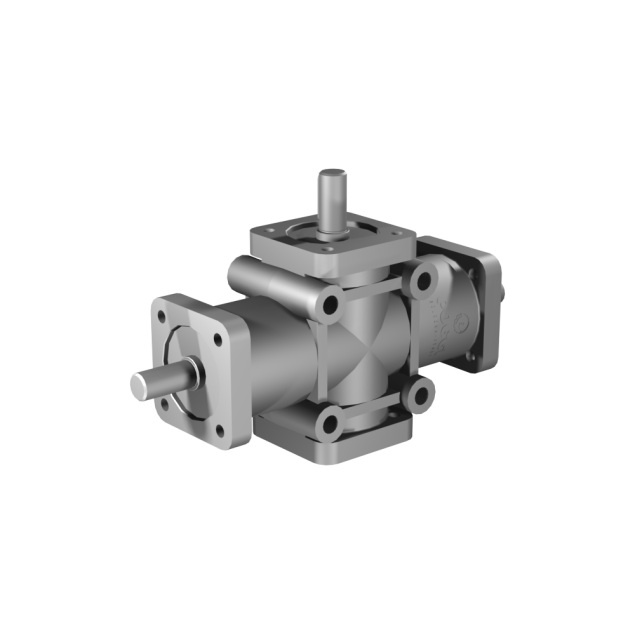

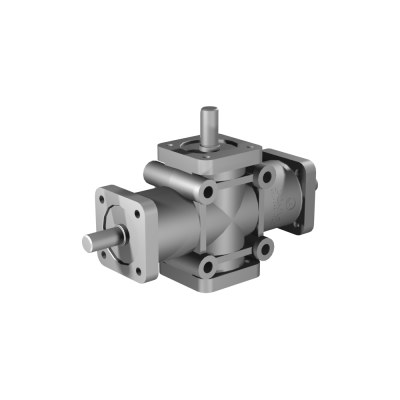

Poggi right angle gearbox 2007, R1:2, D1, Ø14h7, 3-way, Aluminium

HV3042007121

The Poggi right angle gearbox 2007, R1:2, D1, Ø14h7, 3-way, Aluminium is a compact and efficient solution for transferring mechanical power between perpendicular axes while increasing output torque. Designed with a 2:1 gear ratio, it is suited for applications where speed needs to be reduced and torque amplified—such as in handling equipment, synchronised conveyors, or compact actuator systems.

The gearbox features a D1 layout with three Ø14h7 precision shafts, enabling multi-directional power transfer in tight or mobile installations. It is housed in lightweight aluminium, which offers both structural rigidity and resistance to corrosion. With a maximum speed of 1400 RPM and rated for 10 Nm torque at 1400 RPM, it performs reliably under continuous load conditions.

€524.00

Excluded taxes and delivery costs

Made to order

Expected shipment:

Estimated Shipping:

Description

Poggi Right Angle Gearbox – Model 2007, R1:2, Ø14h7, 3-Way Output, D1, Aluminium

The Poggi 2007 gearbox in D1 configuration is a high-performance, 3-way right-angle gearbox designed for applications requiring increased torque and reliable directional power transmission. With a 1:2 gear ratio, it multiplies torque at the output while reducing speed, offering an effective solution for synchronized, load-sensitive applications.

Featuring Ø14 mm shafts with h7 tolerance, the gearbox supports precise, low-backlash alignment, ideal for coupling to motors, actuators, or driven shafts. The lightweight aluminium housing delivers durability, excellent heat dissipation, and corrosion resistance while minimizing the overall system weight — critical in compact machine designs and mobile equipment.

The internal spiral bevel gears ensure smooth, quiet operation and long service life, even under continuous or variable loads. The 3-way output configuration allows for multi-directional transmission, making this gearbox particularly versatile in applications like conveyors, packaging systems, and automated assemblies.

Pre-lubricated and sealed for life, the Poggi 2007 R1:2 D1 offers a maintenance-free, highly adaptable gearbox platform for modern industrial environments.

Gear ratio: 2:1 (R1:2)
Reduces speed while increasing torque output – ideal for high-load operations.
Configuration: D1, 3-shaft
Allows right-angle multi-axis power distribution.
Shaft diameter: Ø14h7
Precision-engineered shafts ensure consistent torque transmission.
Material: Aluminium housing
Lightweight and corrosion-resistant – ideal for compact systems.
Backlash: 15–30′
Maintains tight rotational control with low play.
Nominal torque: 10 Nm @ 1400 RPM
Maximum speed: 1400 RPM
