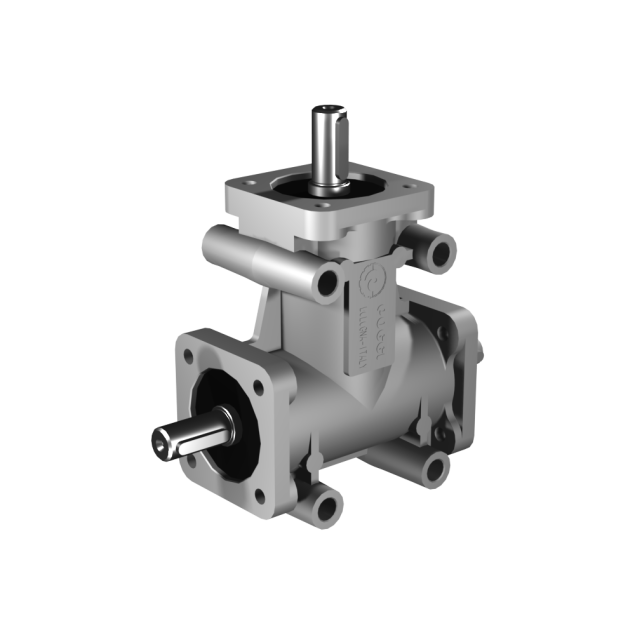

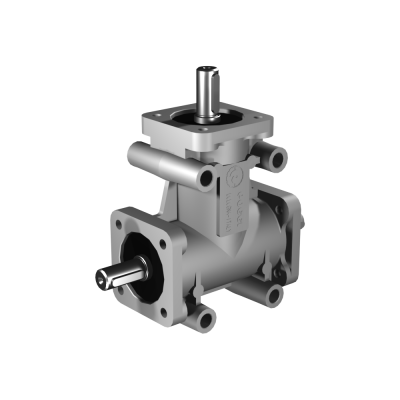

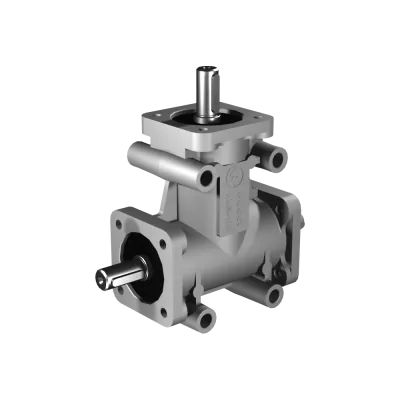

The Poggi 2008 gearbox in D1/2 configuration is a high-precision, 3-way right-angle gearbox designed to handle synchronized motion across two output shafts. With a 1:2 gear ratio, it optimizes torque while reducing speed, offering a highly efficient transmission solution for automation, packaging, and positioning systems.

This model features Ø14 mm shafts with h7 tolerance on input and both outputs, ensuring accurate alignment and reliable mechanical engagement. The reduced backlash gearing minimizes angular play, enabling tight positioning control for servo and stepper-driven systems where responsiveness and precision are critical.

Constructed from lightweight yet durable aluminium, the housing provides excellent thermal dissipation and corrosion resistance without adding unnecessary weight — perfect for mobile, modular, or compact machine installations.

Inside, spiral bevel gears ensure smooth, low-noise power transfer with high mechanical efficiency. The gearbox is fully sealed and pre-lubricated for maintenance-free operation over a long service life.

Whether powering coordinated axes in assembly lines, conveyors, or pick-and-place robotics, the Poggi 2008 delivers precision, flexibility, and reliability in one compact package.

• Gear ratio: 2:1 (R1:2)
  Doubles output torque while reducing speed — excellent for drive control.

• Configuration: D1/2, 3-shaft layout
  Supports multiple axis orientations in tight or rotating systems.

• Shaft diameter: Ø14h7 (Stainless steel)
  Ensures high precision and corrosion resistance in sanitary environments.

• Material: Aluminium housing
  Provides strength and low weight — suitable for mobile systems.

• Nominal torque: 10 Nm @ 1400 RPM

• Maximum speed: 1400 RPM
