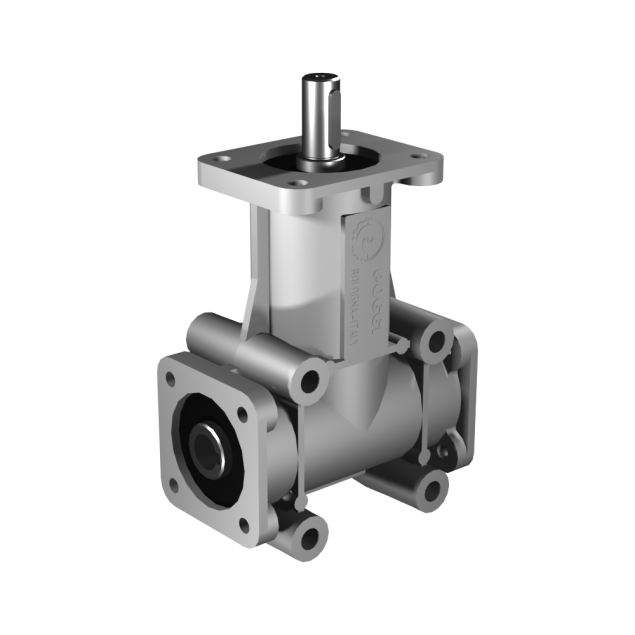

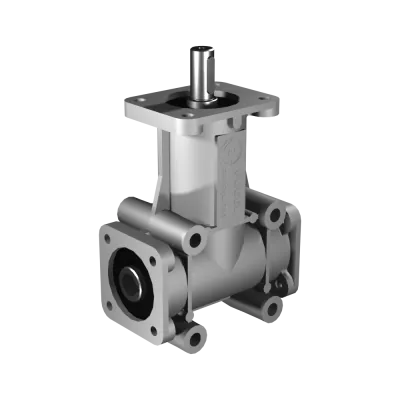

Poggi right angle gearbox 2028, R1:1, D1/2, Ø19h7 - Ø19H7, 3-way, Reduced backlash, Aluminium

HV3042028111S

The Poggi right angle gearbox 2028, R1:1, D1/2, Ø19h7, 3-way, Aluminium – Stainless Shaft Version offers high-performance motion transfer across three perpendicular axes. With a 1:1 gear ratio, it maintains equal input and output speed, ideal for synchronized movement in packaging machines, indexing tables, and linear positioning systems.

The D1/2 layout provides flexible installation via three Ø19h7 stainless steel shafts, ensuring corrosion resistance for use in food processing, cleanroom automation, or outdoor environments. The aluminium housing reduces overall system weight without compromising mechanical integrity.

Rated for up to 38 Nm torque at 1400 RPM and 3000 RPM max speed, this gearbox enables reliable and precise operation under continuous load conditions.

€565.00

Excluded taxes and delivery costs

Made to order

Expected shipment:

Estimated Shipping:

Description

Poggi Right Angle Gearbox – Model 2028, R1:1, Ø19h7–Ø19H7, 3-Way Output, D1/2, Reduced Backlash, Aluminium

The Poggi 2028 right-angle gearbox is engineered to meet the demands of high-precision, multi-directional power transmission. With a 1:1 gear ratio, it provides equal-speed torque transfer across three axes, supported by Ø19h7 and Ø19H7 precision shafts in D1/2 configuration. This configuration enables seamless bidirectional output from a single input — ideal for complex automation layouts.

This model is built with reduced backlash spiral bevel gears, significantly limiting angular play for applications requiring accurate repeatability and responsive control. This makes it particularly suitable for servo-driven systems, robotics, and synchronized motion sequences.

Housed in lightweight aluminium, the gearbox combines strength with corrosion resistance and thermal efficiency. Its sealed-for-life design ensures zero maintenance and consistent performance over long duty cycles, even under demanding operational loads.

Whether integrated into packaging machines, pick-and-place equipment, or high-cycle automation, the Poggi 2028 delivers a superior combination of precision, flexibility, and reliability.

Gear ratio: 1:1 (R1:1)
Maintains input/output speed – ideal for synchronous drives.
Configuration: D1/2, 3-shaft layout
Facilitates multi-directional torque transfer in tight systems.
Shaft diameter: Ø19h7 (Stainless steel)
Corrosion-resistant and suitable for hygienic environments.
Housing material: Aluminium
Lightweight yet structurally rigid – ideal for compact installations.
Nominal torque: 38 Nm @ 1400 RPM
Maximum speed: 3000 RPM
