Home
Motors
AC motors
B3 motor flange

B3 motor flange

Shop By

Rated output (kW)

0.75 (1)
1.1 (2)
1.5 (2)
2.2 (3)
3 (2)
4 (1)
5.5 (2)
7.5 (3)
15 (1)
22 (1)

0

✕

Poles

2 (7)
4 (7)
6 (4)

0

✕

Mounting

B3 (18)

0

✕

BCD

115 (1)
130 (2)

0

✕

Efficiency standard

IE3 (18)

0

✕

IP classification

IP 55 (18)

0

✕

Voltage connection (Δ/Y)

230/400 (11)
400/690 (7)

0

✕

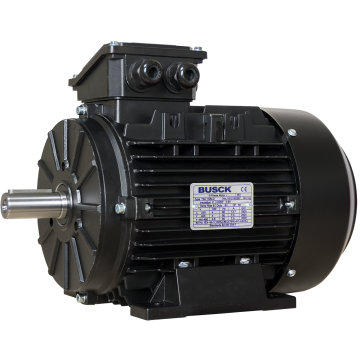

Busck AC motor T3A112M-6B3, 2,2kW, 965RPM, B3, 230/400, 50 Hz, Aluminium

Busck AC motor T3A112M-6B3, 2,2kW, 965RPM, B3, 230/400, 50 Hz, Aluminium T3A112M-6B3

IP classification IP 55
Speed (RPM) 965
Rated output (kW) 2.2
Voltage connection (Δ/Y) 230/400
Nominal torque (Nm) 21.77
Mounting B3
BCD 130
Poles 6
Efficiency standard IE3
Shaft diameter (mm) Ø28
Cooling TEFC

€897.73

excl. VAT

Quantity

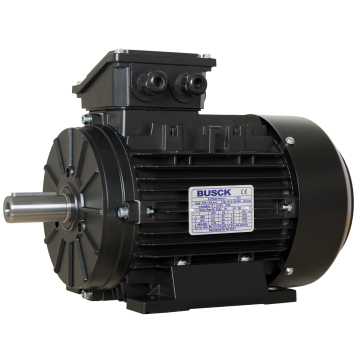

Busck AC motor T3A100LB-4B3, 3kW, 1450RPM, B3, 230/400, 50 Hz, Aluminium

Busck AC motor T3A100LB-4B3, 3kW, 1450RPM, B3, 230/400, 50 Hz, Aluminium T3A100LB-4B3

IP classification IP 55
Speed (RPM) 1450
Rated output (kW) 3
Voltage connection (Δ/Y) 230/400
Nominal torque (Nm) 19.76
Mounting B3
Poles 4
Efficiency standard IE3
Shaft diameter (mm) Ø28
Cooling TEFC

€824.23

excl. VAT

Quantity

Busck AC motor T3CR180L-6B3, 15kW, 960RPM, B3, 400/690, 50 Hz, Aluminium

Busck AC motor T3CR180L-6B3, 15kW, 960RPM, B3, 400/690, 50 Hz, Aluminium T3CR180L-6B3

IP classification IP 55
Speed (RPM) 960
Rated output (kW) 15
Voltage connection (Δ/Y) 400/690
Nominal torque (Nm) 149.22
Mounting B3
Poles 6
Efficiency standard IE3
Shaft diameter (mm) Ø48
Cooling TEFC

€3,817.20

excl. VAT

Quantity

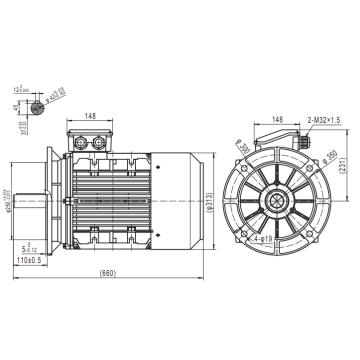

Busck AC motor T3CR180L, 22kW, 1460RPM, B3, 400/690, 50 Hz, Aluminium

Busck AC motor T3CR180L, 22kW, 1460RPM, B3, 400/690, 50 Hz, Aluminium T3CR180L-4B3

IP classification IP 55
Speed (RPM) 1460
Rated output (kW) 22
Voltage connection (Δ/Y) 400/690
Nominal torque (Nm) 143.9
Mounting B3
Poles 4
Efficiency standard IE3
Shaft diameter (mm) Ø48
Cooling TEFC

€4,124.75

excl. VAT

Quantity

Busck AC motor T3A132MB-6B3, 5,5kW, 975RPM, B3, 400/690, 50 Hz, Aluminium

Busck AC motor T3A132MB-6B3, 5,5kW, 975RPM, B3, 400/690, 50 Hz, Aluminium T3A132MB-6B3

IP classification IP 55
Speed (RPM) 975
Rated output (kW) 5.5
Voltage connection (Δ/Y) 400/690
Nominal torque (Nm) 53.87
Mounting B3
Poles 6
Efficiency standard IE3
Shaft diameter (mm) Ø38
Cooling TEFC

€1,711.11

excl. VAT

Quantity

Busck AC motor T3A100L-6B3, 1,5kW, 955RPM, B3, 230/400, 50 Hz, Aluminium

Busck AC motor T3A100L-6B3, 1,5kW, 955RPM, B3, 230/400, 50 Hz, Aluminium T3A100L-6B3

IP classification IP 55
Speed (RPM) 955
Rated output (kW) 1.5
Voltage connection (Δ/Y) 230/400
Nominal torque (Nm) 15
Mounting B3
BCD 130
Poles 6
Efficiency standard IE3
Shaft diameter (mm) Ø28
Cooling TEFC

€767.59

excl. VAT

Quantity

Busck AC motor T3A90L-4B3, 1,5kW, 1440RPM, B3, 230/400, 50 Hz, Aluminium

Busck AC motor T3A90L-4B3, 1,5kW, 1440RPM, B3, 230/400, 50 Hz, Aluminium T3A90L-4B3

IP classification IP 55
Speed (RPM) 1440
Rated output (kW) 1.5
Voltage connection (Δ/Y) 230/400
Nominal torque (Nm) 9.95
Mounting B3
Poles 4
Efficiency standard IE3
Shaft diameter (mm) Ø24
Cooling TEFC

€579.61

excl. VAT

Quantity

Busck AC motor T3A112M-4B3, 4kW, 1450RPM, B3, 400/690, 50 Hz, Aluminium

Busck AC motor T3A112M-4B3, 4kW, 1450RPM, B3, 400/690, 50 Hz, Aluminium T3A112M-4B3

IP classification IP 55
Speed (RPM) 1450
Rated output (kW) 4
Voltage connection (Δ/Y) 400/690
Nominal torque (Nm) 26.34
Mounting B3
Poles 4
Efficiency standard IE3
Shaft diameter (mm) Ø28
Cooling TEFC

€1,004.98

excl. VAT

Quantity

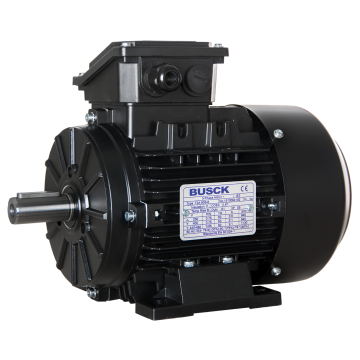

Busck AC motor T3A90S-4B3, 1,1kW, 1440RPM, B3, 230/400, 50 Hz, Aluminium

Busck AC motor T3A90S-4B3, 1,1kW, 1440RPM, B3, 230/400, 50 Hz, Aluminium T3A90S-4B3

IP classification IP 55
Speed (RPM) 1440
Rated output (kW) 1.1
Voltage connection (Δ/Y) 230/400
Nominal torque (Nm) 7.3
Mounting B3
BCD 115
Poles 4
Efficiency standard IE3
Shaft diameter (mm) Ø24
Cooling TEFC

€510.92

excl. VAT

Quantity

Busck AC motor T3A100LA-4B3, 2,2kW, 1450RPM, B3, 230/400, 50 Hz, Aluminium

Busck AC motor T3A100LA-4B3, 2,2kW, 1450RPM, B3, 230/400, 50 Hz, Aluminium T3A100LA-4B3

IP classification IP 55
Speed (RPM) 1450
Rated output (kW) 2.2
Voltage connection (Δ/Y) 230/400
Nominal torque (Nm) 14.49
Mounting B3
Poles 4
Efficiency standard IE3
Shaft diameter (mm) Ø28
Cooling TEFC

€706.14

excl. VAT

Quantity

Items 1-10 of 18
