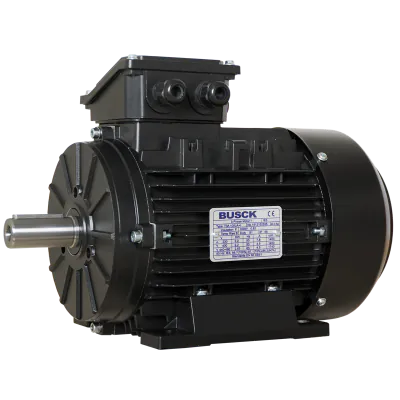

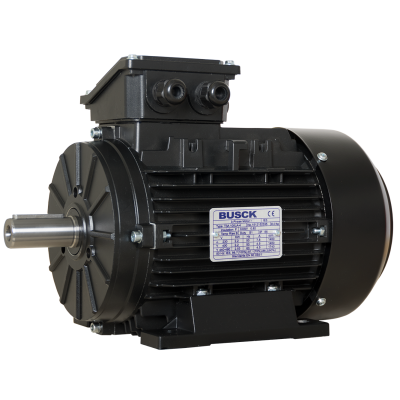

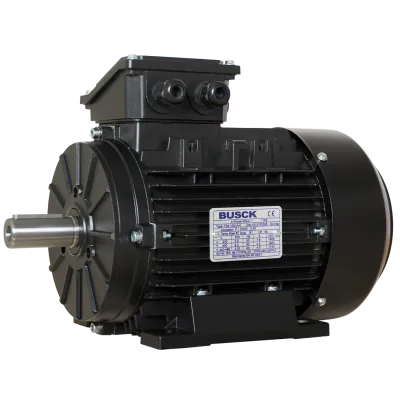

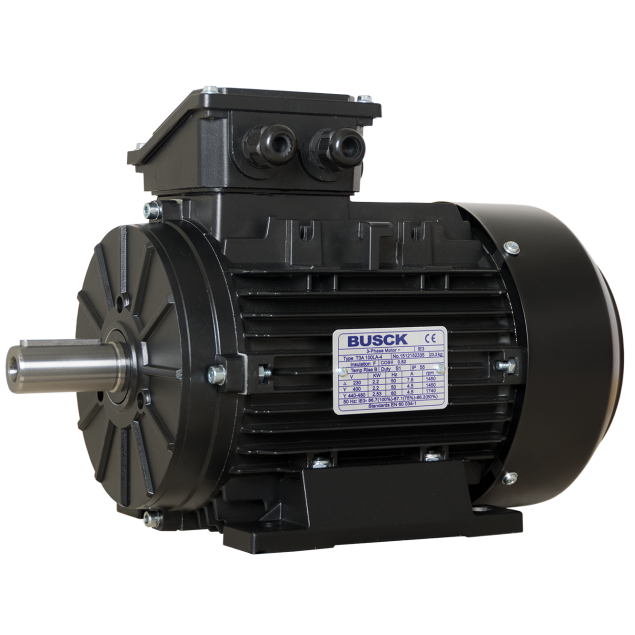

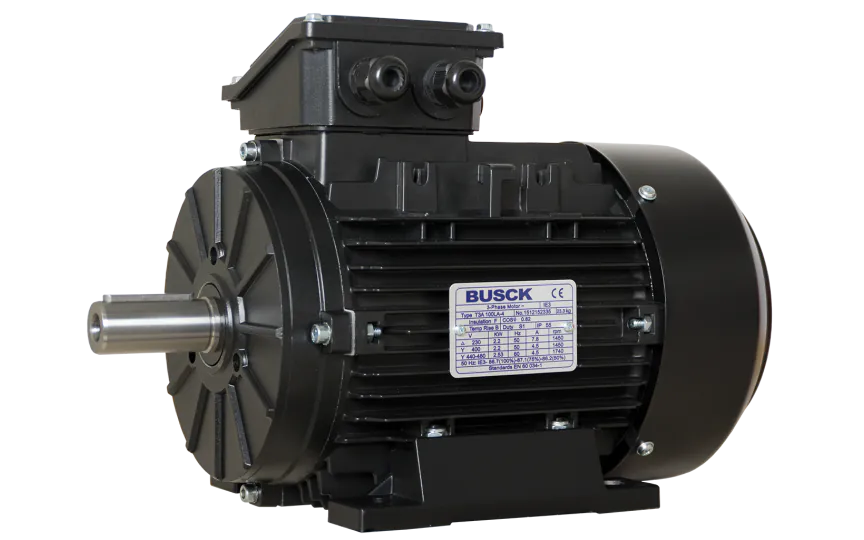

Busck AC motor T3A100LB-4B3, 3kW, 1450RPM, B3, 230/400, 50 Hz, Aluminium
T3A100LB-4B3The Busck AC motor T3A100LB-4B3 is a reliable 3 kW, 4-pole motor, designed for industrial applications requiring efficiency and durability.
With a speed of 1450 RPM and a nominal torque of 19.76 Nm, this motor delivers stable performance for continuous duty operations. Built with an aluminium housing and IP55 protection, it is resistant to dust and water spray, ensuring long service life in demanding environments.
Classified in the IE3 efficiency class, the motor supports energy-saving operation. It operates with a 230/400 V (Δ/Y) connection, drawing 10.96 A at rated load. The B3 foot-mounted design and Ø28 mm shaft make it easy to integrate with standard machinery setups. TEFC cooling ensures consistent thermal performance and reliability.
Made to order
Expected shipment:
More Information
Description
Key features:
- IP55 rating: Provides excellent protection against dust and water ingress, making it suitable for both indoor and outdoor installations.
- High power output: Boasts a power rating of 3kW, offering substantial power for a wide range of industrial applications.
- Optimal speed: With a speed of 1450RPM, the motor ensures smooth and efficient operation for different load requirements.
- Voltage flexibility: Compatible with both 230V and 400V power supply, offering adaptability to diverse electrical systems.
- B3 flange: Features a B3 flange mount, enabling easy and secure attachment to various mechanical components.
- IE3-efficiency: Compliant with IE3 energy efficiency standards, ensuring reduced energy consumption and cost-effectiveness.
Specifications:
- Robust construction: Built with aluminum materials.
- Temperature range: -20°C to +40°C
