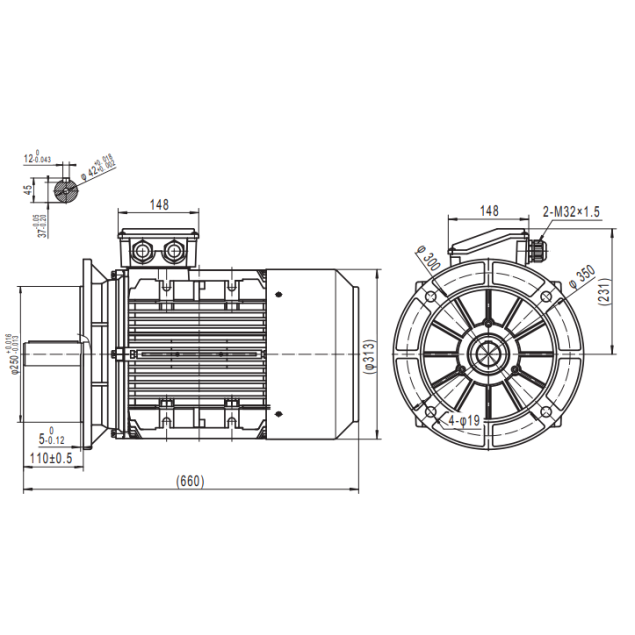

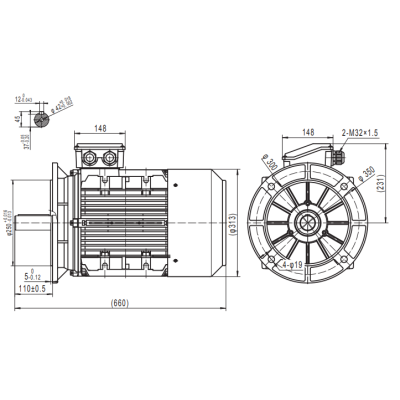

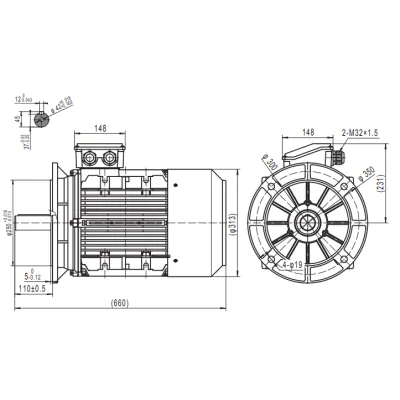

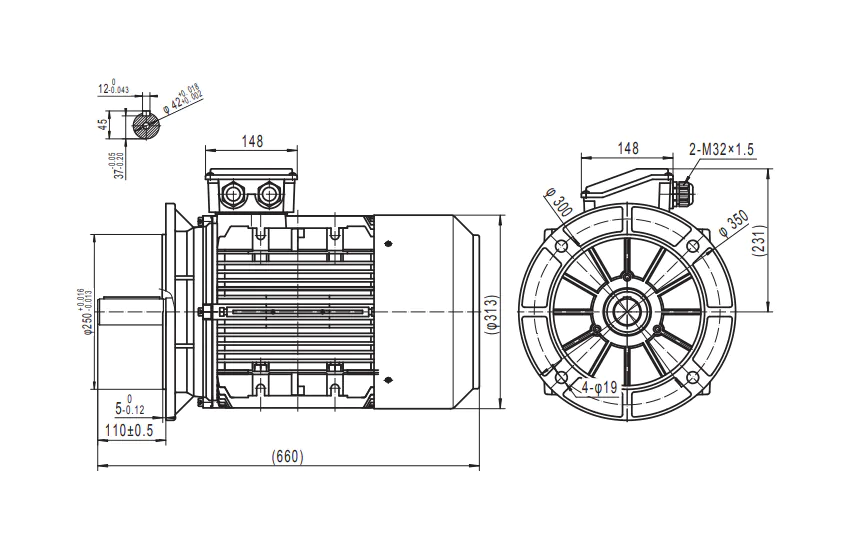

Busck AC motor T3CR180L, 22kW, 1460RPM, B3, 400/690, 50 Hz, Aluminium
T3CR180L-4B3The Busck AC Motor T3CR180L is a three-phase electric motor designed for industrial applications. It features a rated power output of 22 kW and a nominal speed of 1400 RPM, with a maximum speed of 1460 RPM. Built in accordance with IE3 efficiency standards and the IEC 180 frame size norm, the motor ensures energy-efficient performance. It comes with a B3 foot mounting configuration and a shaft diameter of Ø48 mm. The housing is constructed from aluminium and uses TEFC (Totally Enclosed Fan Cooled) cooling. The motor operates on a 400/690 V connection, runs at 50 Hz, and has an IP55 protection rating. Equipped with 4 poles, the Busck T3CR180L is suited for various demanding environments.
Specifications
Product description
Downloads
€4,141.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
More Information
IP classification
IP 55
Model
T3CR180L
Speed (RPM)
1460
Rated output (kW)
22
Efficiency (% FL)
93
Voltage connection (Δ/Y)
400/690
Rated current at voltage
38.4/22.1
Nominal torque (Nm)
143.9
Start current ratio (IA/IN)
10
Mounting
B3
Poles
4
Efficiency standard
IE3
Shaft diameter (mm)
Ø48
Cooling
TEFC
HS-Code
85015220.000000
Description
Key features:
- IP55 rating: Provides protection against dust and water, making it suitable for outdoor and rugged environments.
- High power output: With a capacity of 22kW, it delivers power to tackle challenging tasks effectively.
- High speed: Operates at an speed of 14600RPM, enabling efficient and rapid operations.
- Voltage options: Compatible with both 400V and 690V power supply, offering flexibility in installation and usage.
- B3 flange: The motor is designed with a B3 flange, ensuring easy mounting and integration into various systems.
- IE3 efficiency: Boasting IE3 efficiency, the motor optimizes energy consumption and reduces operating costs.
Specifications:
- Robust build: Constructed with aluminum materials.
- Wide temperature range: -20°C to +40°C.
