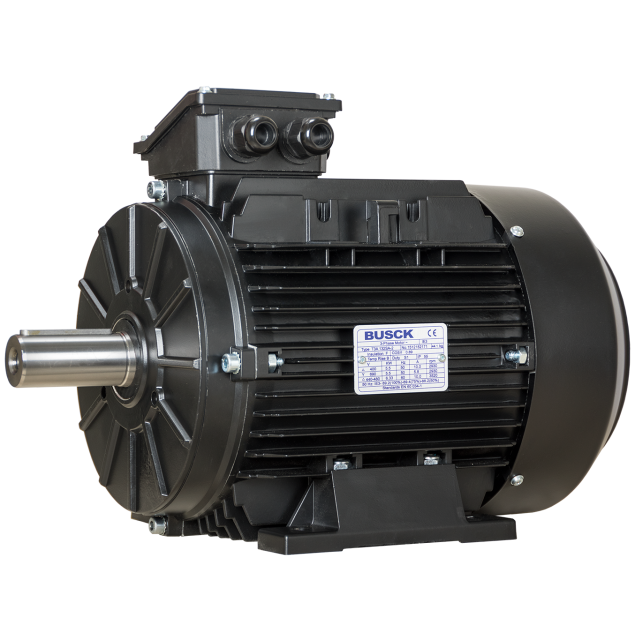

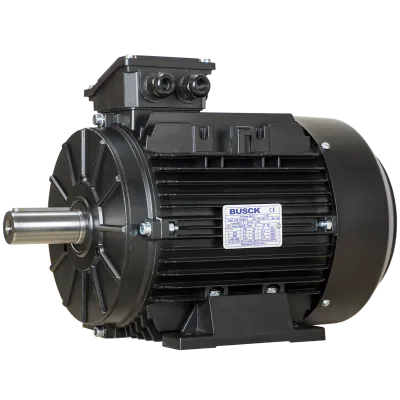

Busck AC motor T3A132MB-6B3, 5,5kW, 975RPM, B3, 400/690, 50 Hz, Aluminium

T3A132MB-6B3

The Busck AC Motor T3A132MB-6B3 is a reliable electric motor designed for industrial applications requiring robust performance. It features a power output of 5.5 kW and 6 poles, delivering a rated speed of 900 RPM and a maximum speed of 975 RPM. The motor has a shaft diameter of Ø38 mm and a B3 foot mounting configuration. Built to the IE3 efficiency standard and compliant with IEC frame size 132, it operates at 400/690 V, 50 Hz. The IP55 protection class ensures protection against dust and water, while its aluminium housing supports effective cooling via TEFC (Totally Enclosed Fan Cooled) design.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 55

Model

T3A132MB-6B3

Speed (RPM)

975

Rated output (kW)

5.5

Efficiency (% FL)

Voltage connection (Δ/Y)

400/690

Rated current at voltage

12.7/7.3

Nominal torque (Nm)

53.87

Start current ratio (IA/IN)

Mounting

Poles

Efficiency standard

IE3

Shaft diameter (mm)

Ø38

Cooling

TEFC

HS-Code

85015220.000000

Description

Key features:

IP55 rating: With an IP55 rating, this motor is protected against dust and water ingress, making it suitable for both indoor and outdoor installations.
High power output: The motor boasts an 5.5kW power rating.
High efficiency: Featuring an IE3 efficiency class, this motor helps optimize energy usage, reducing operational costs and environmental impact.
Flexible voltage options: The Busck AC motor operates on a wide voltage range of 400/690V.
Adaptable flange: Designed with a B3 flange, the motor can be easily mounted and integrated into various industrial setups.

Specifications:
