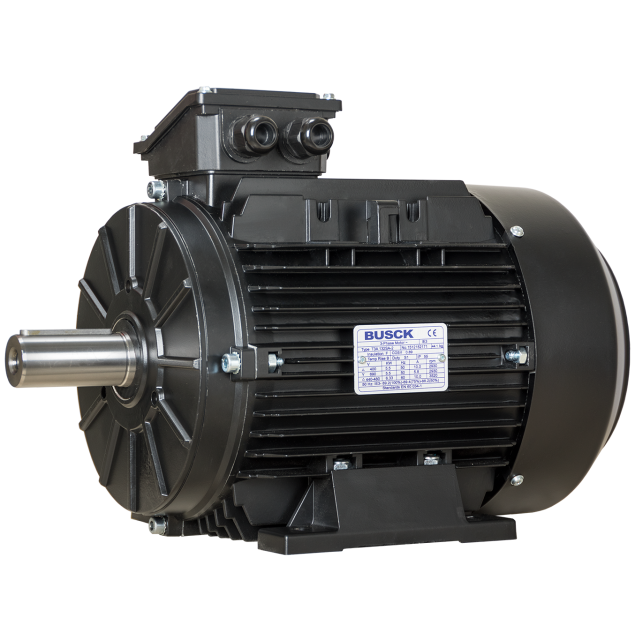

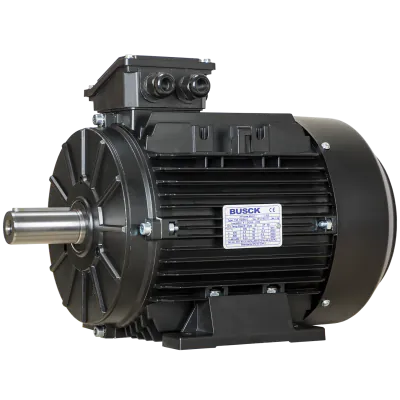

Busck AC motor T3A132M-4B3, 7.5kW, 1460RPM, 400/690V, 50Hz, aluminium
T3A132M-4B3The Busck AC motor is a versatile and durable three-phase synchronous motor designed to excel in demanding environments. With its features and specifications, this motor offers reliable performance for various industrial applications.
Specifications
Product description
Downloads
€1,581.63
In stock
Expected shipment: 03-01-2025
More Information
IP classification
IP 55
Producer
Busck
Model
T3A132M-4B3
Speed (RPM)
1460
Rated output (kW)
7.5
Efficiency (% FL)
90.4
Voltage connection (Δ/Y)
400/690
Rated current at voltage
14.3/8.22
Nominal torque (Nm)
49.06
Start current ratio (IA/IN)
8.9
Mounting
B3
IEC norm
132
Poles
4
Efficiency standard
IE3
Shaft diameter (mm)
Ø38
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- IP55 rating: The motor's IP55 rating provides protection against dust and water, guaranteeing reliable operation in tough environments.
- High power output: With a power rating of 7.5kW, this motor delivers performance, making it suitable for heavy loads and industrial processes.
- Optimal speed: The motor operates at a speed of 1460RPM, offering precise control and efficiency for various applications.
- Wide voltage range: The Busck AC motor supports a voltage range of 400/690V, allowing for flexibility in different power supply setups.
- B3 flange mounting: Featuring a B3 flange mounting design, this motor can be easily installed and integrated into existing systems.
- High efficiency: The motor is rated IE3, ensuring energy efficiency and reducing operational costs.
Specifications:
- Robust build: Constructed with aluminum.
- Temperature resilient: -20°C to +40°C.
