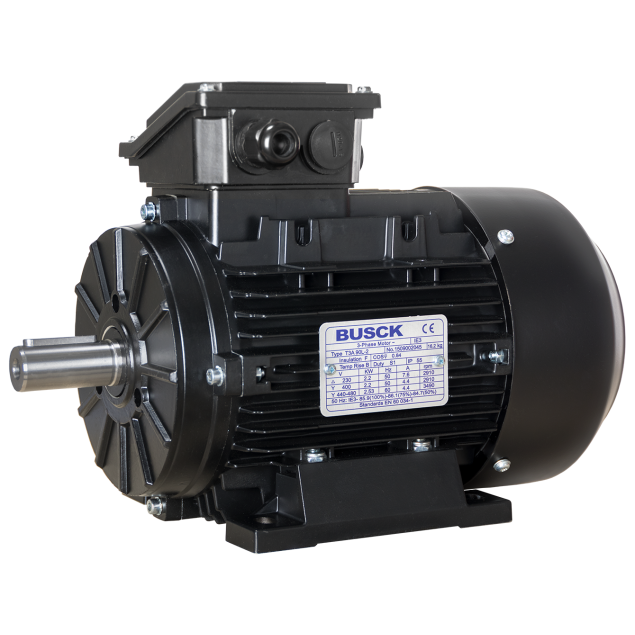

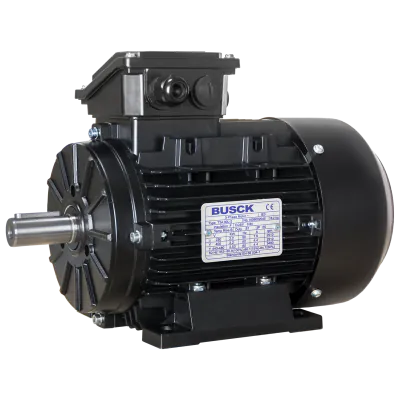

Busck AC motor T3A90L-4B3, 1,5kW, 1440RPM, B3, 230/400, 50 Hz, Aluminium
T3A90L-4B3The T3A90L-4B3 comes with a B3 foot mounting, a shaft diameter of Ø24 mm, and a 4-pole configuration. Its compact aluminium housing ensures optimal heat dissipation and durability. Electrical connection is via 230/400 V, 50 Hz supply, and it holds an IP55 protection rating for reliable performance in demanding environments.
Specifications
Product description
Downloads
€581.00
Made to order
Expected shipment:
Loading...
More Information
IP classification
IP 55
Model
T3A90L-4B3
Speed (RPM)
1440
Rated output (kW)
1.5
Efficiency (% FL)
85.3
Voltage connection (Δ/Y)
230/400
Rated current at voltage
6.05/3.48
Nominal torque (Nm)
9.95
Start current ratio (IA/IN)
8.1
Mounting
B3
Poles
4
Efficiency standard
IE3
Shaft diameter (mm)
Ø24
Cooling
TEFC
HS-Code
85015220.000000
Description
Key features:
- IP55 rating: The motor's IP55 rating provides protection against dust and water ingress, enhancing its reliability in challenging environments.
- High power output: With a power rating of 1.5kW, this motor delivers substantial horsepower for various industrial tasks.
- Optimal speed: The motor operates at 1440RPM.
- Voltage options: The Busck AC motor offers flexibility with its compatibility with 230V and 400V power supplies.
- B3 flange mounting: The motor features a B3 flange mounting, allowing for easy and secure installation in industrial setups.
- High energy efficiency: With an IE3 energy efficiency rating, this motor ensures reduced energy consumption.
Specifications:
- Robust construction: Built with aluminum materials.
- Wide temperature range: -20°C to +40°C.
