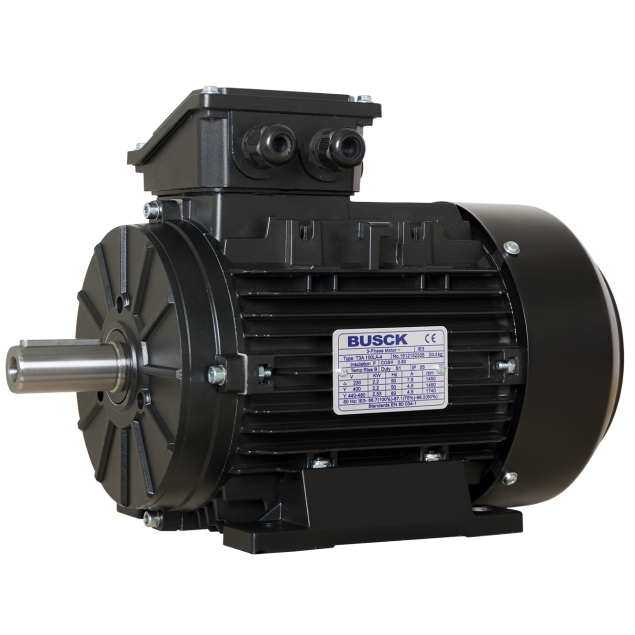

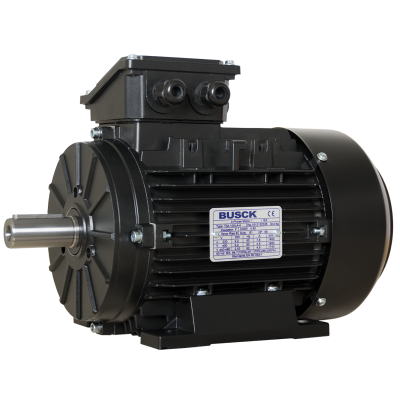

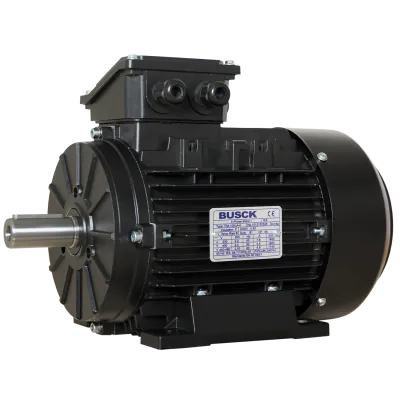

Busck AC motor T3A100LA-4B3, 2.2kW, 1450RPM, 230/400V, 50Hz, aluminium
T3A100LA-4B3The Busck AC motor is a robust and flexible high-performance three-phase synchronous motor, designed to withstand the harsh demands in various industrial applications. With its build quality and powerful performance, this motor is a ideal choice for reliable and efficient operation in challenging environments.
Specifications
Product description
Downloads
€709.00
In stock
Expected shipment: 23-02-2025
More Information
IP classification
IP 55
Model
T3A100LA-4B3
Speed (RPM)
1450
Rated output (kW)
2.2
Efficiency (% FL)
86.7
Voltage connection (Δ/Y)
230/400
Rated current at voltage
7.77/4.47
Nominal torque (Nm)
14.49
Start current ratio (IA/IN)
7.9
Mounting
B3
IEC norm
100
Poles
4
Efficiency standard
IE3
Shaft diameter (mm)
Ø28
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- IP55 rating: With an IP55 rating, this motor is well-protected against dust and water ingress, making it suitable for both indoor and outdoor installations.
- 2.2kW power: The motor boasts a powerful 2.2kW output, providing ample torque and performance for demanding tasks.
- 1450RPM speed: Operating at a speed of 1450 revolutions per minute, this motor offers precise control and smooth operation.
- 230/400V voltage: The motor supports a voltage range of 230V in single-phase and 400V in three-phase configurations, ensuring compatibility with various power systems.
- B3 flange: The B3 flange design enables easy and convenient installation, making it adaptable to different setups.
- IE3 efficiency: This motor complies with IE3 efficiency standards, ensuring energy-saving performance and reduced operational costs.
Specifications:
- Aluminum construction: The motor features a durable aluminum housing.
- Wide temperature range: -20°C to +40°C.
