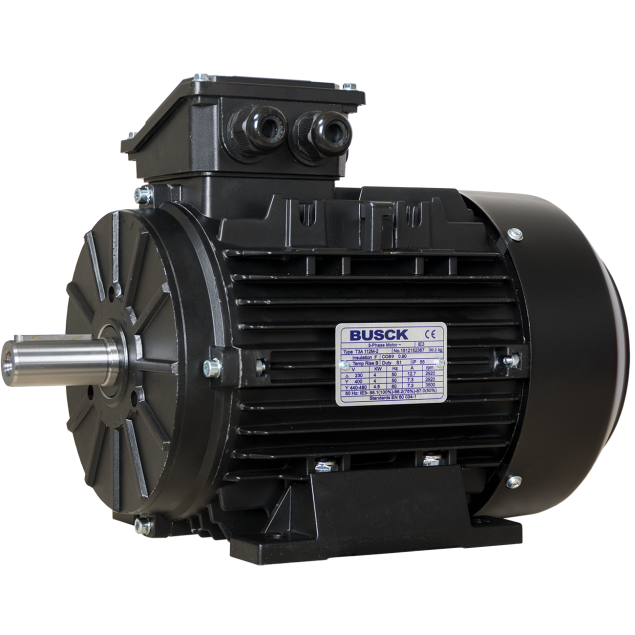

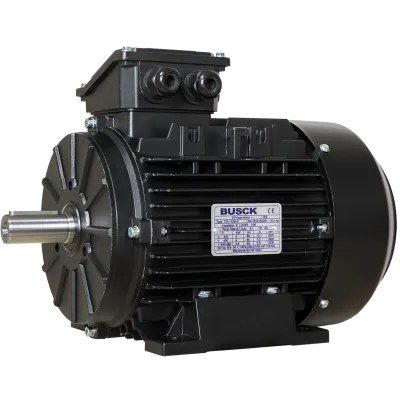

Busck AC motor T3A112M-4B3, 4kW, 1450RPM, 400/690V, 50Hz, aluminium
T3A112M-4B3The Busck AC Motor is a robust and flexible high-performance three-phase synchronous motor designed to excel in demanding environments. Crafted to withstand harsh conditions, this motor delivers reliable and efficient operation, making it an ideal choice for various industrial applications.
Specifications
Product description
Downloads
€1,006.16
In stock
Expected shipment: 24-01-2025
More Information
IP classification
IP 55
Producer
Busck
Model
T3A112M-4B3
Speed (RPM)
1450
Rated output (kW)
4
Efficiency (% FL)
88.6
Voltage connection (Δ/Y)
400/690
Rated current at voltage
7.9/4.54
Nominal torque (Nm)
26.34
Start current ratio (IA/IN)
8.6
Mounting
B3
IEC norm
112
Poles
4
Efficiency standard
IE3
Shaft diameter (mm)
Ø28
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- IP55 rating: With an IP55 rating, the motor is protected against dust and water jets.
- 4kW power: The Busck AC Motor offers a 4kW capacity.
- 1450RPM speed: Operating at a speed of 1450RPM.
- Wide voltage range: The motor supports a voltage range of 400/690V, providing versatility for diverse power systems.
- B3 flange: The B3 flange design ensures easy installation and compatibility with standard motor mounting configurations.
- IE3 efficiency: The motor boasts an IE3 efficiency rating, resulting in energy savings and reduced operating costs.
Specifications:
- Aluminum build: The motor features a aluminum construction.
- Temperature range: -20°C to +40°C.
