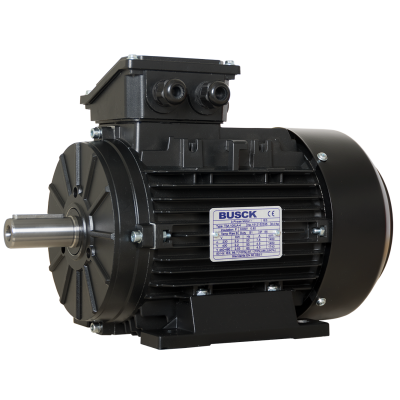

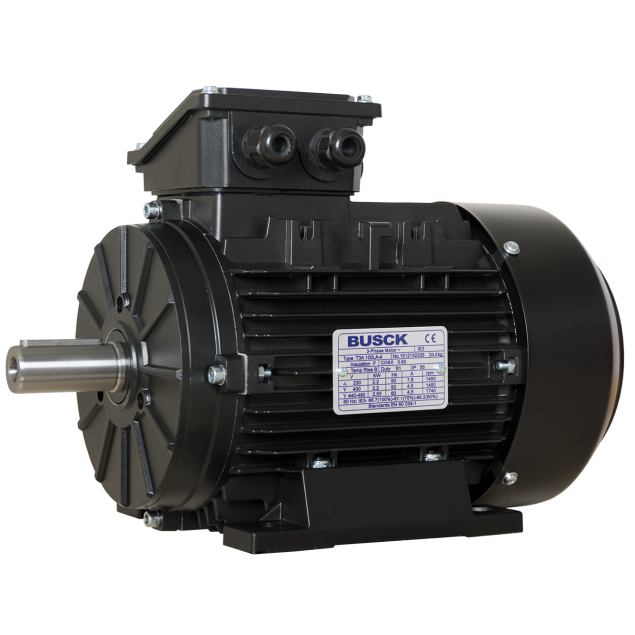

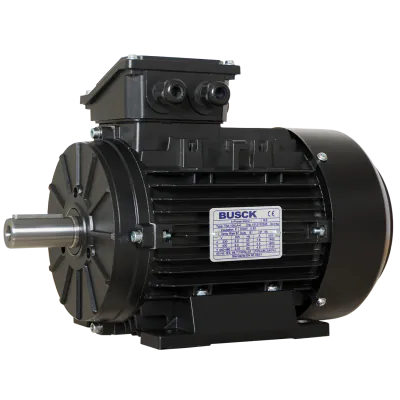

Busck AC motor T3A100L-6B3, 1,5kW, 955RPM, B3, 230/400, 50 Hz, Aluminium

T3A100L-6B3

The Busck AC Motor T3A100L-6B3 is a reliable three-phase electric motor designed for industrial applications. It delivers a rated output of 1.5 kW at a rated speed of 900 RPM and has a measured speed of 955 RPM. The motor features 6 poles and is cooled via a TEFC (Totally Enclosed Fan Cooled) system. Built according to IEC frame size 100, it offers a B3 foot mounting and is constructed from aluminium. The motor supports voltage connection 230/400 V at 50 Hz and meets the IE3 efficiency standard. The shaft diameter is Ø28 mm, the bolt circle diameter (BCD) is 130 mm, and it holds an IP55 protection rating. Manufacturer: Busck.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 55

Model

T3A100L-6B3

Speed (RPM)

955

Rated output (kW)

1.5

Efficiency (% FL)

82.5

Voltage connection (Δ/Y)

230/400

Rated current at voltage

6.43/3.7

Nominal torque (Nm)

Start current ratio (IA/IN)

5.5

Mounting

BCD

130

Poles

Efficiency standard

IE3

Shaft diameter (mm)

Ø28

Cooling

TEFC

HS-Code

85015220.000000

Description

Key features:

IP55 rating: The motor is equipped with an IP55 rating, providing protection against dust and water ingress.
High performance: With a power output of 1.5kW and a speed of 955RPM, this electric motor delivers performance.
Energy-efficient: The IE3 efficiency class ensures optimal energy usage.
Versatile voltage: The motor can operate on both 230V and 400V power supplies.
B3 flange: The B3 flange design allows for easy and convenient installation in various equipment and systems.

Specifications:
