2 Shafts

A 2-shaft right angle gearbox is a compact transmission unit with two shafts positioned at a 90-degree angle, typically featuring a single bevel gear stage. It is used to change the direction of power transmission between perpendicular axes

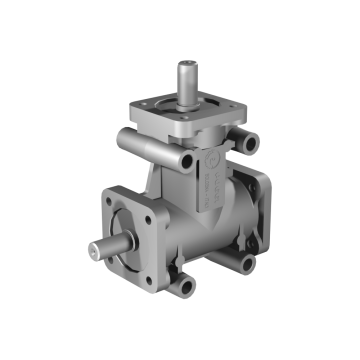

Poggi right angle gearbox 2011, R1:1, D1, Ø14h7, 2-way, Aluminium
Poggi right angle gearbox 2011, R1:1, D1, Ø14h7, 2-way, Aluminium BJ item number: HV3042011111 Supplier item number: 182011111
  • Shaft diameter Ø14h7
  • Number of shafts 2
  • Material Aluminium
  • Max torque at 1400RPM (Nm) 13
  • Max RPM (RPM) 3000
  • Ratio R1:1
  • Direction D1
  • Backlash Normal 15' - 30'
€260.00
excl. VAT
Poggi reversing gearbox 2020, R1:1, D1/2, Ø19h7, 2-way, Aluminium
Poggi reversing gearbox 2020, R1:1, D1/2, Ø19h7, 2-way, Aluminium BJ item number: HV3042020000 Supplier item number: 182020
  • Shaft diameter Ø19h7
  • Number of shafts 2
  • Material Aluminium
  • Max torque at 1400RPM (Nm) 35
  • Max RPM (RPM) 1400
  • Ratio R1:1
  • Direction D1/2
  • Backlash Normal 15' - 30'
€925.00
excl. VAT
Poggi right angle gearbox 5032, R1:2, D2, Ø25f7, 2-way, Stainless steel
Poggi right angle gearbox 5032, R1:2, D2, Ø25f7, 2-way, Stainless steel BJ item number: HV3045032122 Supplier item number: 185032122
  • Shaft diameter Ø25f7
  • Number of shafts 2
  • Material Stainless steel
  • Max torque at 1400RPM (Nm) 23
  • Max RPM (RPM) 1400
  • Ratio R1:2
  • Direction D2
  • Backlash Normal 15' - 30'
€2,166.00
excl. VAT
Poggi right angle gearbox 5032, R1:2, D1, Ø25f7, 2-way, Stainless steel
Poggi right angle gearbox 5032, R1:2, D1, Ø25f7, 2-way, Stainless steel BJ item number: HV3045032121 Supplier item number: 185032121
  • Shaft diameter Ø25f7
  • Number of shafts 2
  • Material Stainless steel
  • Max torque at 1400RPM (Nm) 23
  • Max RPM (RPM) 1400
  • Ratio R1:2
  • Direction D1
  • Backlash Normal 15' - 30'
€2,062.00
excl. VAT
Poggi right angle gearbox 5032, R1:1, D2, Ø25f7, 2-way, Stainless steel
Poggi right angle gearbox 5032, R1:1, D2, Ø25f7, 2-way, Stainless steel BJ item number: HV3045032112 Supplier item number: 185032112
  • Shaft diameter Ø25f7
  • Number of shafts 2
  • Material Stainless steel
  • Max torque at 1400RPM (Nm) 31
  • Max RPM (RPM) 3000
  • Ratio R1:1
  • Direction D2
  • Backlash Normal 15' - 30'
€1,913.00
excl. VAT

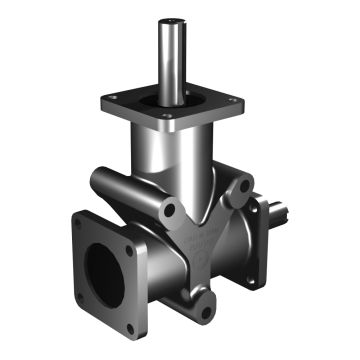

Poggi right angle gearbox 5032, R1:1, D1, Ø25f7, 2-way, Stainless steel
Poggi right angle gearbox 5032, R1:1, D1, Ø25f7, 2-way, Stainless steel BJ item number: HV3045032111 Supplier item number: 185032111
  • Shaft diameter Ø25f7
  • Number of shafts 2
  • Material Stainless steel
  • Max torque at 1400RPM (Nm) 31
  • Max RPM (RPM) 3000
  • Ratio R1:1
  • Direction D1
  • Backlash Normal 15' - 30'
€1,822.00
excl. VAT

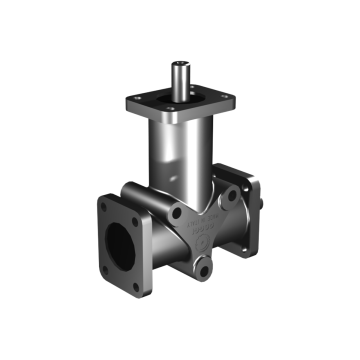

Poggi right angle gearbox 5000, R1:1, D1, Ø8f7, 2-way, Stainless steel
Poggi right angle gearbox 5000, R1:1, D1, Ø8f7, 2-way, Stainless steel BJ item number: HV3045000111 Supplier item number: 185000111
  • Shaft diameter Ø8f7
  • Number of shafts 2
  • Material Stainless steel
  • Max torque at 1400RPM (Nm) 1.6
  • Max RPM (RPM) 3000
  • Ratio R1:1
  • Direction D1
  • Backlash Normal 15' - 30'
€526.00
excl. VAT

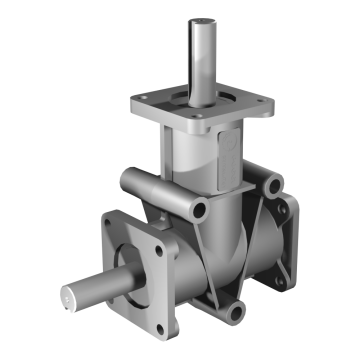

Poggi right angle gearbox 4032, R1:2, D2, Ø25f7, 2-way, Aluminium
Poggi right angle gearbox 4032, R1:2, D2, Ø25f7, 2-way, Aluminium BJ item number: HV3044032122 Supplier item number: 184032122
  • Shaft diameter Ø25f7
  • Number of shafts 2
  • Material Aluminium
  • Max torque at 1400RPM (Nm) 25
  • Max RPM (RPM) 1400
  • Ratio R1:2
  • Direction D2
  • Backlash Normal 15' - 30'
€358.00
excl. VAT

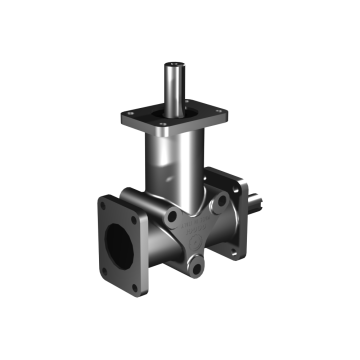

Poggi right angle gearbox 5011, R1:1, D1, Ø15f7, 2-way, Stainless steel
Poggi right angle gearbox 5011, R1:1, D1, Ø15f7, 2-way, Stainless steel BJ item number: HV3045011111 Supplier item number: 185011111
  • Shaft diameter Ø15f7
  • Number of shafts 2
  • Material Stainless steel
  • Max torque at 1400RPM (Nm) 6
  • Max RPM (RPM) 3000
  • Ratio R1:1
  • Direction D1
  • Backlash Normal 15' - 30'
€675.00
excl. VAT

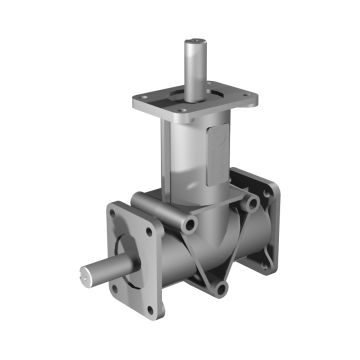

Poggi right angle gearbox 4030, R1:1, D1, Ø20f7, 2-way, Aluminium
Poggi right angle gearbox 4030, R1:1, D1, Ø20f7, 2-way, Aluminium BJ item number: HV3044030111 Supplier item number: 184030111
  • Shaft diameter Ø20f7
  • Number of shafts 2
  • Material Aluminium
  • Max torque at 1400RPM (Nm) 27.2
  • Max RPM (RPM) 3000
  • Ratio R1:1
  • Direction D1
  • Backlash Normal 15' - 30'
€289.00
excl. VAT

Items 1-10 of 77
