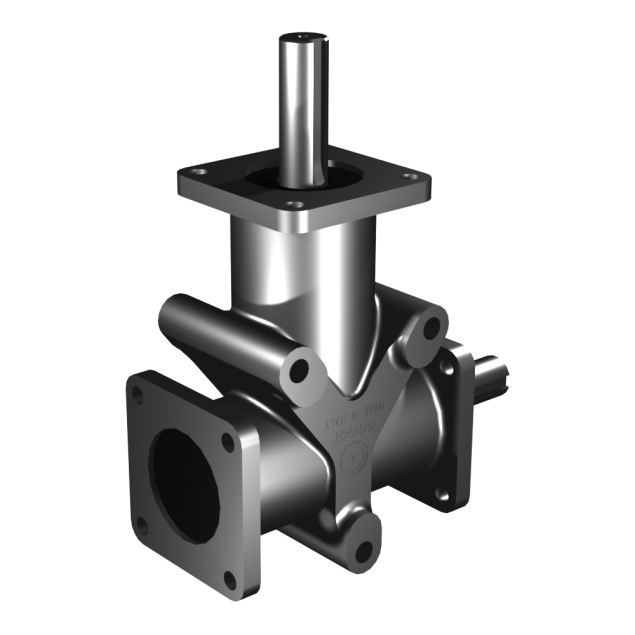

Poggi right angle gearbox 5032, R1:2, D2, Ø25f7, 2-way, Stainless steel
HV3045032122The Poggi right angle gearbox 5032, R1:2, D2, Ø25f7, 2-way, Stainless steel is a corrosion-resistant bevel gearbox engineered for synchronized dual-output applications in hygienic and compact environments. Its D2 configuration supports a central input and dual opposing output shafts at 90°, ideal for evenly split power transmission.
The 1:2 gear ratio reduces the speed by half and increases torque, enabling controlled motion for machinery requiring slower and stronger mechanical output. The Ø25f7 shaft interface offers tight tolerance for stable, backlash-minimized coupling to precision components.
Built from EN 1.4301 stainless steel, this unit meets stringent food, pharmaceutical, and washdown requirements. It delivers 23 Nm nominal torque at 1400 RPM, ensuring robust performance in applications where cleanliness, alignment, and torque precision are critical
Typical applications:
-
Parallel conveyors requiring dual synchronized output
-
Food-grade filling or wrapping machines
-
Hygienic robotic pick-and-place systems
-
Stainless modular drive assemblies in compact installations
Made to order
Expected shipment:
More Information
Description

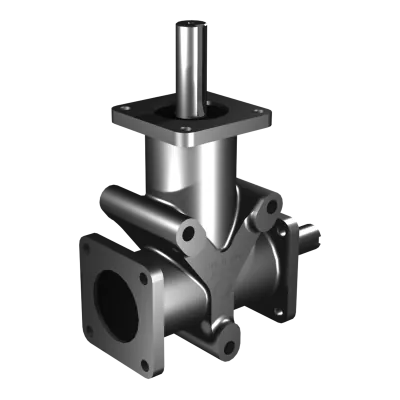

The Poggi 5032 is a high-quality right-angle gearbox built for environments where hygiene, corrosion resistance, and operational reliability are non-negotiable. With a 1:2 gear ratio, it delivers torque multiplication at reduced output speed, ideal for precision-controlled mechanical systems.
The D2 configuration features dual Ø25 mm shafts (f7 tolerance), providing flexible 2-way torque transmission from a single input. This is particularly useful in machinery requiring synchronized, mirrored, or parallel output motion.
Crafted from AISI 316 stainless steel, the housing resists corrosion from chemicals, salt, and cleaning agents, making it ideal for food processing, pharmaceuticals, offshore, and marine applications. The micropolished surface enhances cleanability and reduces particle retention, supporting hygienic design principles.
Internally, the gearbox uses spiral bevel gears for high efficiency, quiet operation, and long service life. It is sealed and pre-lubricated for life, eliminating the need for regular maintenance.
With its blend of hygiene, durability, and precision, the Poggi 5032 is a dependable choice for demanding industrial environments.
-
Gear ratio: 1:2 (R1:2)
Provides torque amplification and controlled output speed. -
Configuration: D2, 2-shaft (opposite output)
Dual opposing output shafts for balanced torque delivery. -
Shaft size: Ø25f7
Precision shaft fit for secure and low-backlash operation. -
Material: Stainless steel (EN 1.4301)
Corrosion-resistant, hygienic design for harsh environments. -
Backlash: 15–30′
-
Nominal torque: 23 Nm @ 1400 RPM
-
Max speed: 1400 RPM
