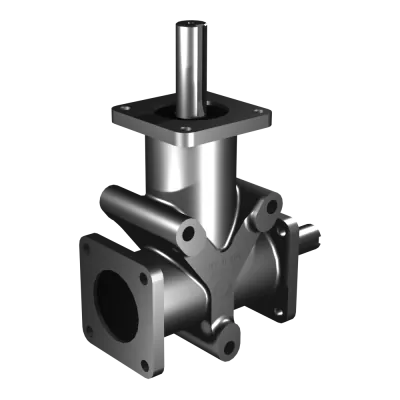

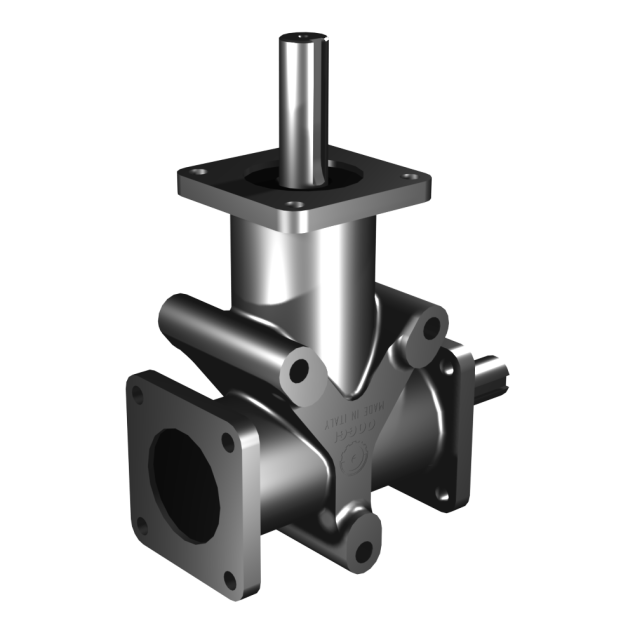

Poggi right angle gearbox 5032, R1:1, D2, Ø25f7, 2-way, Stainless steel
HV3045032112The Poggi right angle gearbox 5032 features a 1:1 gear ratio in D2 configuration with two Ø25f7 shafts, delivering up to 31.0 Nm @ 1400 RPM. With a durable stainless steel housing, this gearbox is purpose-built for demanding environments such as food, chemical, or offshore industries. Its configuration allows for efficient torque transmission between two axes, supporting rotational speeds up to 3000 RPM. The defined 15'–30' backlash tolerance ensures precise, repeatable motion even in continuous-duty applications.
Made to order
Expected shipment:
More Information
Description
The Poggi 5032 right-angle gearbox offers a robust and compact 2-way drive solution, featuring Ø25f7 precision shafts in a D2 configuration and a 1:1 transmission ratio. Engineered with high-performance spiral bevel gears, the unit ensures smooth torque transfer and consistent, maintenance-free operation. Its stainless steel housing provides exceptional corrosion resistance and hygienic design, making it ideal for demanding industrial sectors such as food processing, pharmaceuticals, and marine applications. Built for durability and thermal efficiency, this gearbox is a trusted choice where cleanliness, reliability, and long service life are critical.
-
Gear type: Right angle gearbox
-
Model: Poggi 5032
-
Gear ratio: 1:1
-
Shaft configuration: D2 (2 shafts)
-
Shaft diameter: Ø25f7
-
Max torque @ 1400 RPM: 31.0 Nm
-
Max speed: 3000 RPM
-
Housing material: Stainless steel
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
Downloads
