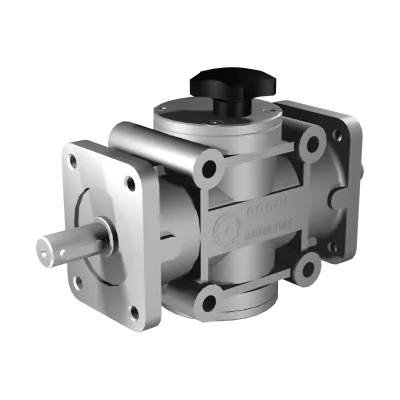

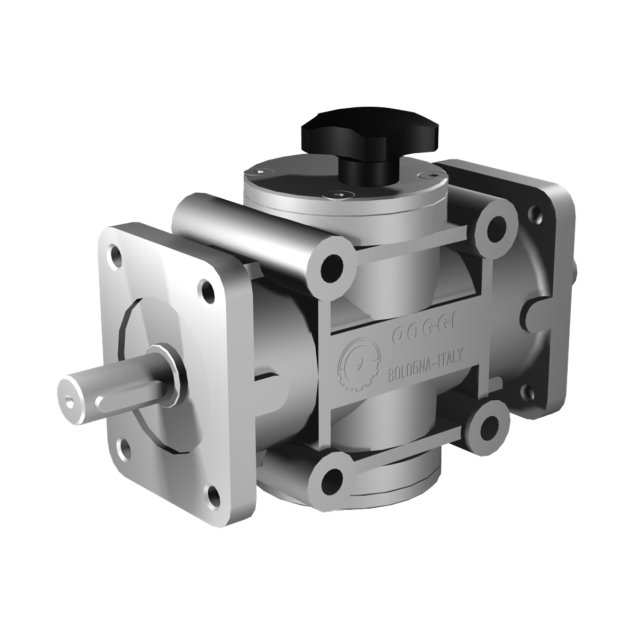

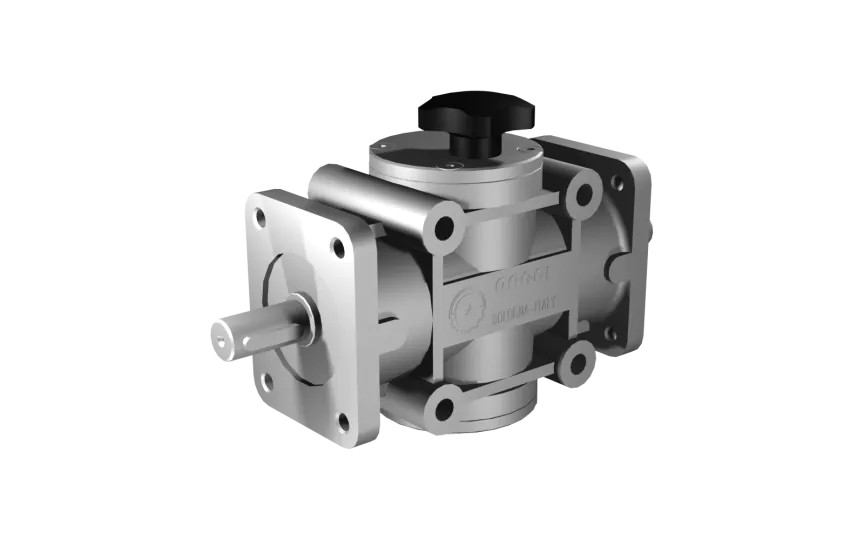

Poggi reversing gearbox 2020, R1:1, D1/2, Ø19h7, 2-way, Aluminium
HV3042020000The Poggi reversing gearbox 2020, R1:1, D1/2, Ø19h7, 2-way, Aluminium is a compact and efficient solution for power transmission in two opposing directions. Featuring a 1:1 gear ratio, it transmits torque with no speed reduction, making it ideal for applications requiring mirrored motion — such as conveyor reversing units, switching arms, or mechanical diverters.
Equipped with two Ø19h7 precision shafts in D1/2 layout, the gearbox facilitates directional control in right-angle installations. The lightweight aluminium housing ensures high corrosion resistance and easy mounting, particularly in modular machine frameworks or compact drive systems.
It supports a nominal torque of 35 Nm at 1400 RPM and operates with a backlash range of 15–30′, providing a stable and predictable mechanical response.
Made to order
Expected shipment:
More Information
Description
Poggi Reversing Gearbox – Model 2020, R1:1, Ø19h7, 2-Way Output, D1/2, Aluminium
The Poggi 2020 is a space-efficient reversing gearbox engineered for bidirectional torque control in compact mechanical systems. With a 1:1 gear ratio, it ensures synchronized input and output speed, while enabling controlled directional switching — ideal for reversing drives, synchronized conveyors, and linear actuators.
Equipped with Ø19 mm shafts in a D1/2 two-way configuration, this unit provides design flexibility and precise shaft alignment in machine frames where compactness and stability are essential. The aluminium housing ensures minimal weight without compromising durability, and offers resistance to corrosion and wear in industrial environments.
The internal spiral bevel gears deliver smooth, efficient, and quiet operation. Combined with a sealed-for-life lubrication system, the gearbox operates maintenance-free over a long service life, reducing downtime and operating costs.
From automation systems and handling modules to OEM mechanical assemblies, the Poggi 2020 offers a compact, high-reliability solution for drive reversal applications requiring efficiency and mechanical simplicity.
-
Gear ratio: 1:1 (R1:1)
Maintains input speed and torque for synchronized reversing or dual drive output. -
Configuration: D1/2, 2-shaft
Opposing output directions — ideal for mirrored or counter-rotating movements. -
Shafts: Ø19h7
High-precision shafts ensure accurate alignment and minimal backlash. -
Housing: Aluminium
Lightweight and corrosion-resistant — simplifies integration into tight machine spaces. -
Nominal torque: 35 Nm @ 1400 RPM
-
Maximum speed: 1400 RPM
-
Backlash: 15–30′
