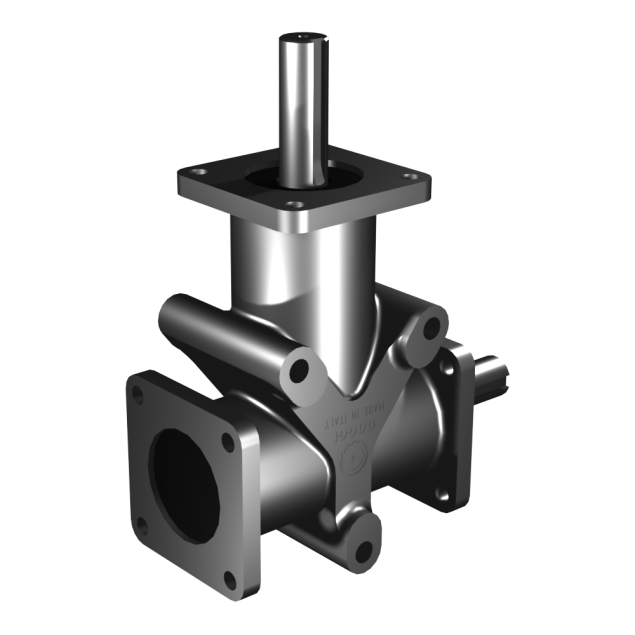

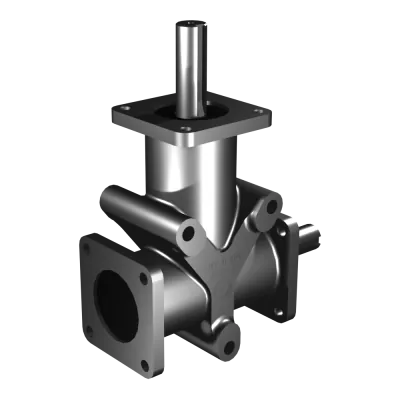

Poggi right angle gearbox 5032, R1:2, D1, Ø25f7, 2-way, Stainless steel
HV3045032121The Poggi right angle gearbox 5032, R1:2, D1, Ø25f7, 2-way, Stainless steel is designed for use in high-demand automation systems requiring cleanability, torque increase, and space-saving integration. Its 1:2 ratio reduces output speed while doubling torque — ideal for indexing units, pick-and-place systems, or controlled rotary applications.
With D1 configuration, the unit provides a 90° mechanical shift between input and output. The Ø25f7 shaft ensures accurate fit and stability under fluctuating loads, with reduced backlash for consistent power transfer. Made from EN 1.4301 stainless steel, it resists cleaning agents and is suitable for food, pharma, or washdown-critical setups.
Rated for 23 Nm torque at 1400 RPM, and max speed 1400 RPM, this compact gearbox supports hygienic mechanical performance in dynamic environments.
Made to order
Expected shipment:
More Information
Description
Poggi Right Angle Gearbox – Model 5032, R1:2, Ø25f7, 2-Way Output, D1, Stainless Steel
The Poggi 5032 is a robust 2-way right-angle gearbox engineered for high-efficiency power transmission in corrosive or hygiene-critical applications. Featuring a 1:2 gear ratio, this gearbox provides torque amplification while reducing output speed — ideal for drive systems requiring increased mechanical advantage and stable, synchronized movement.
The D1 configuration includes Ø25 mm shafts with f7 tolerance, enabling precise shaft alignment and efficient torque transfer between two axes. Its compact 2-way layout is optimal for straightforward inline installations where space and cleanliness are priorities.
Built from AISI 316 stainless steel, the housing provides long-term resistance to corrosion, chemical exposure, and high-humidity environments. The micropolished surface finish promotes easy cleaning and complies with hygienic design standards, making it suitable for food processing, pharmaceutical production, and marine equipment.
The gearbox incorporates spiral bevel gears to ensure smooth, low-noise operation and high mechanical efficiency. It is sealed and pre-lubricated for life, minimizing maintenance requirements and ensuring consistent performance over extended use.
Designed for demanding environments, the Poggi 5032 in D1 configuration offers a clean, compact, and highly durable gearbox solution for hygienic and industrial-grade power transmission.
-
Gear ratio: 1:2 (R1:2)
Doubles output torque while halving rotational speed for better control. -
Configuration: D1, 2-shaft layout
Transmits motion at 90° from input to output. -
Shaft: Ø25f7
Ensures tight coupling and consistent positioning. -
Material: Stainless steel (EN 1.4301)
Corrosion-resistant, ideal for hygienic installations. -
Backlash: 15–30′
-
Nominal torque: 23 Nm @ 1400 RPM
-
Maximum input speed: 1400 RPM
