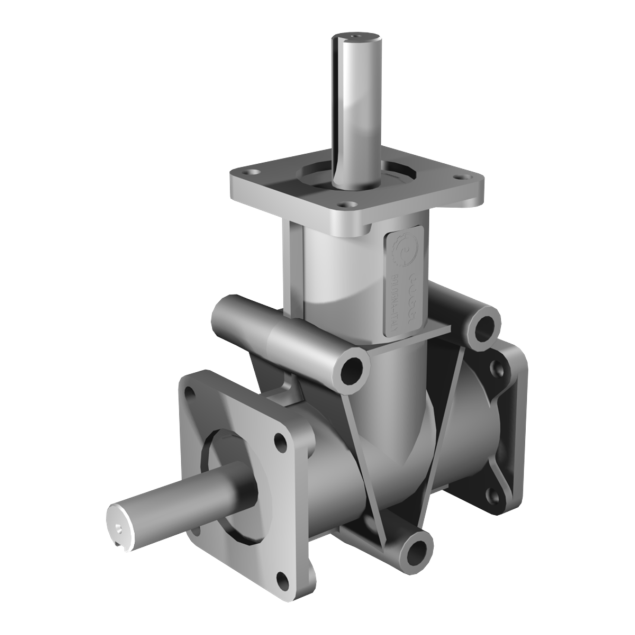

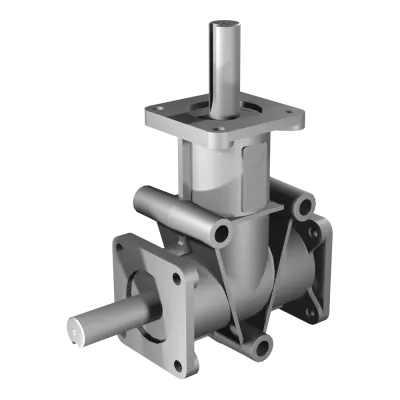

Poggi right angle gearbox 4032, R1:2, D1, Ø25f7, 2-way, Aluminium

HV3044032121

The Poggi right angle gearbox 4032 delivers a 1:2 gear ratio with D1 configuration and two Ø25f7 shafts, optimized for power reduction and balanced torque output in dual-axis systems. It delivers up to 25.0 Nm @ 1400 RPM and supports speeds up to 1400 RPM, making it a versatile choice for industrial drive applications. The aluminium housing ensures both strength and corrosion resistance. A defined backlash range of 15'–30' secures precise operation even under changing loads.

€358.00

Excluded taxes and delivery costs

Made to order

Expected shipment:

Estimated Shipping:

Description

With a compact design, the Poggi 4032 provides 2-way output via Ø25f7 shafts in D1 configuration, with a 1:2 gear ratio. Housed in lightweight aluminium housing, it balances strength and thermal efficiency. Internally driven by spiral bevel gears, the unit ensures smooth, reliable torque transfer and long-lasting, maintenance-free operation in demanding environments.

Gear type: Right angle gearbox
Model: Poggi 4032
Gear ratio: 1:2
Shaft configuration: D1 (2 shafts)
Shaft diameter: Ø25f7
Max torque @ 1400 RPM: 25.0 Nm
Max speed: 1400 RPM
Housing material: Aluminium
Backlash: Normal 15'–30'
Brand: Poggi (Italy)
