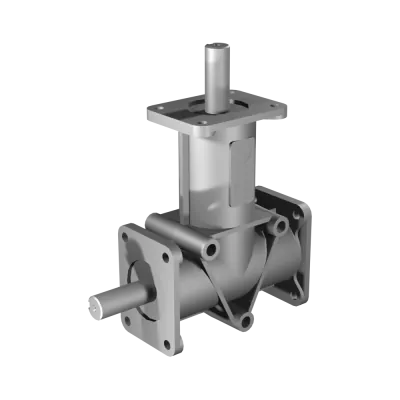

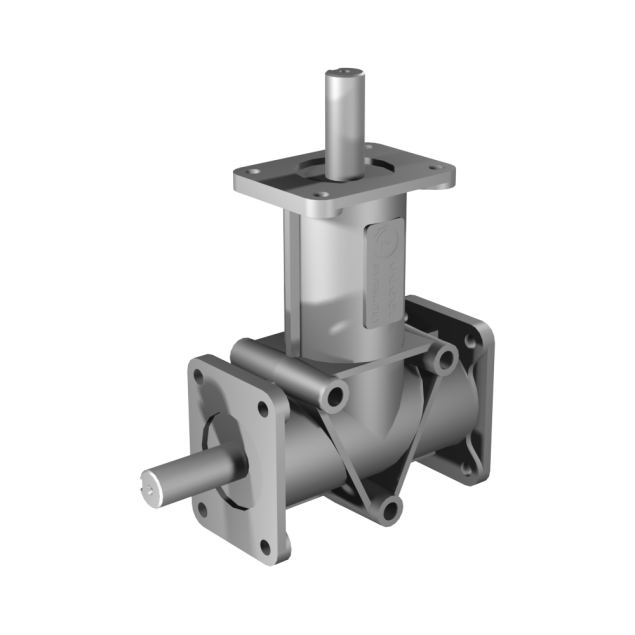

Poggi right angle gearbox 4030, R1:1, D1, Ø20f7, 2-way, Aluminium
HV3044030111The Poggi right angle gearbox 4030 offers a compact and high-efficiency transmission system for 90° direction changes in power flow. Built with a 1:1 gear ratio, D1 configuration, and two Ø20f7 shafts, it provides a straightforward input-output setup for demanding automation tasks. Its aluminium housing is optimized for weight savings and corrosion resistance. Rated for 27.2 Nm @ 1400 RPM, this gearbox supports high-speed operation up to 3000 RPM and features a backlash of 15'–30', making it ideal for medium-precision industrial applications.
Made to order
Expected shipment:
More Information
Description
The Poggi 4030 right-angle gearbox delivers 2-way output via Ø20f7 shafts in D1 configuration, with a 1:1 gear ratio. Housed in robust aluminium design, it balances strength and thermal efficiency. Internally driven by spiral bevel gears, the unit ensures smooth, reliable torque transfer and long-lasting, maintenance-free operation in demanding environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 4030
-
Gear ratio: 1:1
-
Shaft configuration: D1 (2 shafts)
-
Shaft diameter: Ø20f7
-
Max torque @ 1400 RPM: 27.2 Nm
-
Max speed: 3000 RPM
-
Housing material: Aluminium
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
