4 Shafts

Right angle gearboxes with 4 shafts from BJ-Gear and Poggi. Compact, efficient, and ideal for space-saving power transmission. Available in various configurations
Poggi right angle gearbox 2006, R1:2, D1/2, Ø14h7, 4-way, Aluminium
Poggi right angle gearbox 2006, R1:2, D1/2, Ø14h7, 4-way, Aluminium HV3042006121
  • Shaft diameter Ø14h7
  • Number of shafts 4
  • Material Aluminium
  • Max torque at 1400RPM (Nm) 10
  • Max RPM (RPM) 1400
  • Ratio R1:2
  • Direction D1/2
  • Backlash Normal 15' - 30'
€535.24
excl. VAT
Poggi right angle gearbox 2006, R1:3, D1/2, Ø14h7, 4-way, Aluminium
Poggi right angle gearbox 2006, R1:3, D1/2, Ø14h7, 4-way, Aluminium HV3042006131
  • Shaft diameter Ø14h7
  • Number of shafts 4
  • Material Aluminium
  • Max torque at 400RPM (Nm) 9
  • Max RPM (RPM) 1000
  • Ratio R1:3
  • Direction D1/2
  • Backlash Normal 15' - 30'
€582.91
excl. VAT
Poggi right angle gearbox 2006, R1:3, D1/2, Ø14h7, 4-way, Reduced backlash, Aluminium
Poggi right angle gearbox 2006, R1:3, D1/2, Ø14h7, 4-way, Reduced backlash, Aluminium HV3042006131S
  • Shaft diameter Ø14h7
  • Number of shafts 4
  • Material Aluminium
  • Max torque at 400RPM (Nm) 9
  • Max RPM (RPM) 1000
  • Ratio R1:3
  • Direction D1/2
  • Backlash Reduced 5' to 10'
€670.22
excl. VAT
Poggi right angle gearbox 2006, R1:2, D1/2, Ø14h7, 4-way, Reduced backlash, Aluminium
Poggi right angle gearbox 2006, R1:2, D1/2, Ø14h7, 4-way, Reduced backlash, Aluminium HV3042006121S
  • Shaft diameter Ø14h7
  • Number of shafts 4
  • Material Aluminium
  • Max torque at 1400RPM (Nm) 10
  • Max RPM (RPM) 1400
  • Ratio R1:2
  • Direction D1/2
  • Backlash Reduced 5' to 10'
€615.45
excl. VAT

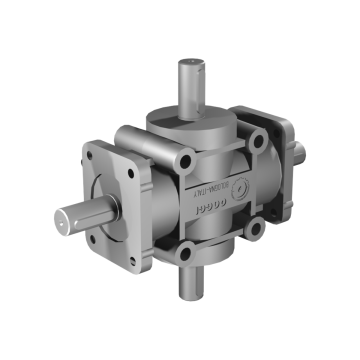

Poggi right angle gearbox 2026, R1:2, D1/2, Ø24h7, 4-way, Reduced backlash, Aluminium
Poggi right angle gearbox 2026, R1:2, D1/2, Ø24h7, 4-way, Reduced backlash, Aluminium HV3042026121S
  • Shaft diameter Ø24h7
  • Number of shafts 4
  • Material Aluminium
  • Max torque at 400RPM (Nm) 30
  • Max RPM (RPM) 700
  • Ratio R1:2
  • Direction D1/2
  • Backlash Reduced 5' to 10'
€871.22
excl. VAT
Poggi right angle gearbox 2026, R1:1, D1/2, Ø24h7, 4-way, Aluminium
Poggi right angle gearbox 2026, R1:1, D1/2, Ø24h7, 4-way, Aluminium HV3042026111
  • Shaft diameter Ø24h7
  • Number of shafts 4
  • Material Aluminium
  • Max torque at 1400RPM (Nm) 30
  • Max RPM (RPM) 1400
  • Ratio R1:1
  • Direction D1/2
  • Backlash Normal 15' - 30'
€693.65
excl. VAT

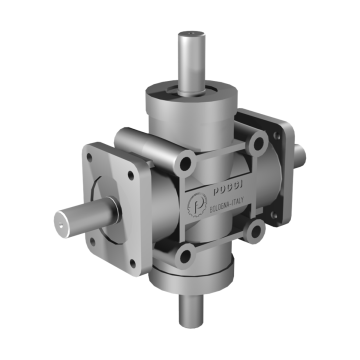

Poggi right angle gearbox 2027, R1:1, D1/2, Ø24h7, 4-way, Reduced backlash, Aluminium
Poggi right angle gearbox 2027, R1:1, D1/2, Ø24h7, 4-way, Reduced backlash, Aluminium HV3042027111S
  • Shaft diameter Ø24h7
  • Number of shafts 4
  • Material Aluminium
  • Max torque at 1400RPM (Nm) 30
  • Max RPM (RPM) 1400
  • Ratio R1:1
  • Direction D1/2
  • Backlash Reduced 5' to 10'
€954.11
excl. VAT
Poggi right angle gearbox 2026, R1:2, D1/2, Ø24h7, 4-way, Aluminium
Poggi right angle gearbox 2026, R1:2, D1/2, Ø24h7, 4-way, Aluminium HV3042026121
  • Shaft diameter Ø24h7
  • Number of shafts 4
  • Material Aluminium
  • Max torque at 400RPM (Nm) 30
  • Max RPM (RPM) 700
  • Ratio R1:2
  • Direction D1/2
  • Backlash Normal 15' - 30'
€757.53
excl. VAT

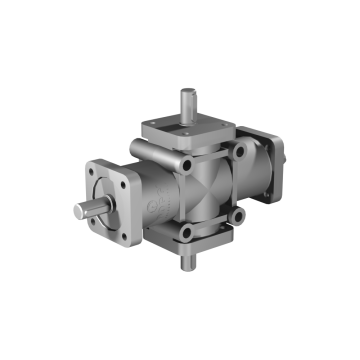

Poggi right angle gearbox 2006, R1:1, D1/2, Ø14h7, 4-way, Reduced backlash, Aluminium
Poggi right angle gearbox 2006, R1:1, D1/2, Ø14h7, 4-way, Reduced backlash, Aluminium HV3042006111S
  • Shaft diameter Ø14h7
  • Number of shafts 4
  • Material Aluminium
  • Max torque at 1400RPM (Nm) 13
  • Max RPM (RPM) 3000
  • Ratio R1:1
  • Direction D1/2
  • Backlash Reduced 5' to 10'
€587.33
excl. VAT
Poggi right angle gearbox 2006, R1:1, D1/2, Ø14h7, 4-way, Aluminium
Poggi right angle gearbox 2006, R1:1, D1/2, Ø14h7, 4-way, Aluminium HV3042006111
  • Shaft diameter Ø14h7
  • Number of shafts 4
  • Material Aluminium
  • Max torque at 1400RPM (Nm) 13
  • Max RPM (RPM) 3000
  • Ratio R1:1
  • Direction D1/2
  • Backlash Normal 15' - 30'
€510.73
excl. VAT

Items 1-10 of 12
