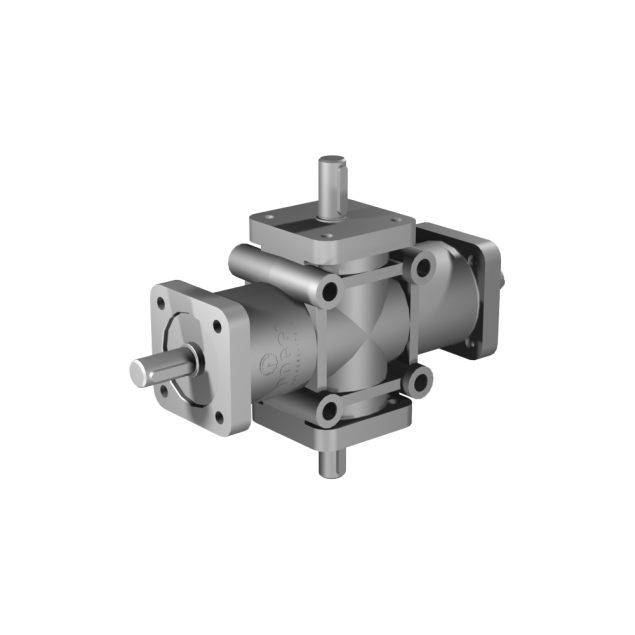

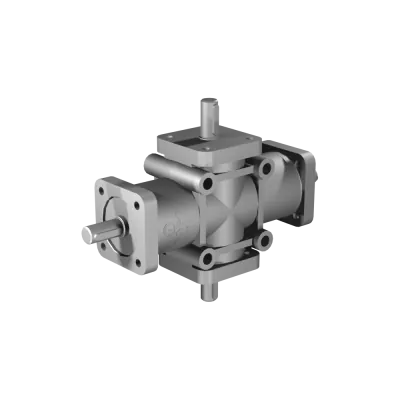

Poggi right angle gearbox 2006, R1:1, D1/2, Ø14h7, 4-way, Reduced backlash, Aluminium
HV3042006111SThe Poggi right angle gearbox 2006 is built for advanced power distribution in compact systems, offering a 1:1 gear ratio and D1/2 configuration with four Ø14h7 shafts. This model is ideal for synchronized or mirrored multi-directional outputs. Its precision-machined aluminium housing provides both strength and corrosion resistance. Delivering up to 13.0 Nm @ 1400 RPM, and supporting speeds up to 3000 RPM, this gearbox is suited for light-to-medium automation setups where defined backlash values are not essential.
Made to order
Expected shipment:
More Information
Description
Model 2006 from Poggi offers a 4-way layout with a 1:1 gear ratio and Ø14h7 shaft interfaces (D1/2). Featuring a compact and robust aluminium casing that balances strength, low weight, and heat efficiency. This version is optimized with reduced backlash gearing, minimizing angular deviation and ensuring excellent positional accuracy in motion systems. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 2006
-
Gear ratio: 1:1
-
Shaft configuration: D1/2 (4 shafts)
-
Shaft diameter: Ø14h7
-
Max torque @ 1400 RPM: 13.0 Nm
-
Max speed: 3000 RPM
-
Housing material: Aluminium
-
Backlash: Not specified
-
Brand: Poggi (Italy)
