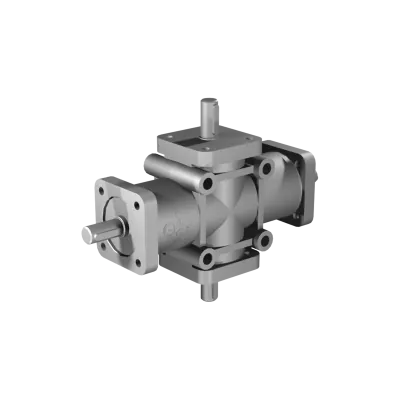

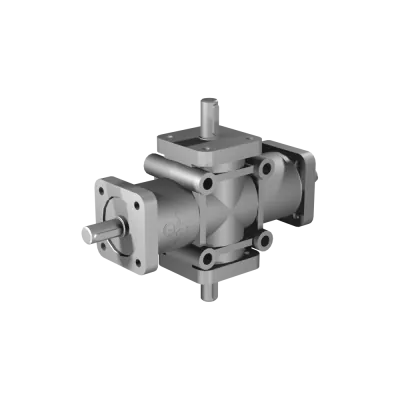

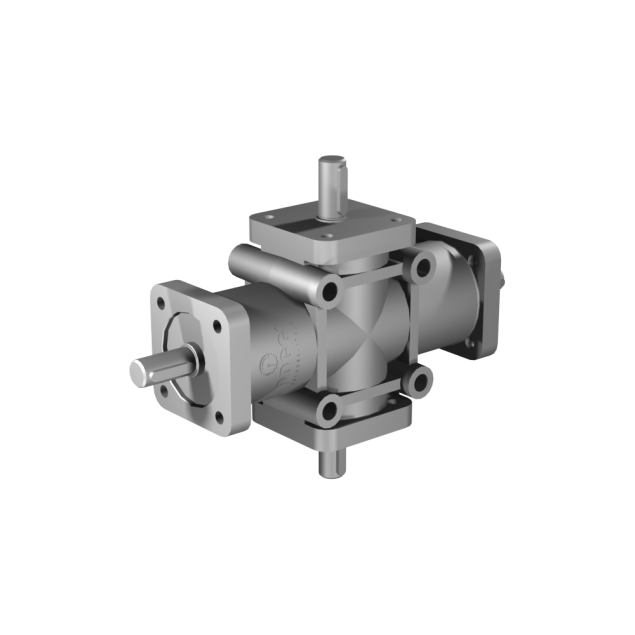

Poggi right angle gearbox 2006, R1:3, D1/2, Ø14h7, 4-way, Aluminium

HV3042006131

The Poggi right angle gearbox 2006, R1:3, D1/2, Ø14h7, 4-way, Aluminium offers an efficient and compact solution for power transmission across multiple axes. With a 3:1 gear ratio, the gearbox increases output speed while reducing torque—ideal for applications requiring higher output rotation from a slower input, such as indexing mechanisms or driven rollers.

The 4-shaft D1/2 layout enables torque to be distributed in two 90° directions, making it highly versatile for use in conveyor junctions, synchronized actuators, or compact robotic arms. The Ø14h7 shaft ensures tight fits with minimal backlash (15–30′), while the lightweight aluminium housing supports installation in space-constrained or mobile machinery.

Rated for up to 1000 RPM, this gearbox provides 9 Nm of nominal torque at 400 RPM, delivering robust performance for mid-speed automation applications.

€585.00

Excluded taxes and delivery costs

Made to order

Expected shipment:

Estimated Shipping:

Description

The Poggi 2006 right-angle gearbox with a 1:3 gear ratio is a precision-engineered solution for demanding mechanical applications requiring compact, multi-directional power transmission. The 4-way configuration enables flexible shaft orientation, making it ideal for use in systems where space efficiency and multiple output paths are critical.

Featuring Ø14 mm shafts with h7 tolerance, the gearbox ensures accurate alignment and consistent torque transfer. Its aluminium housing provides a lightweight yet durable structure, ideal for integration into motion systems, automation equipment, and light industrial machinery.

This gearbox utilizes spiral bevel gears, delivering quiet, smooth operation and high efficiency. Factory pre-lubricated and sealed for life, the Poggi 2006 R1:3 model minimizes maintenance and downtime, offering long-term reliability.

Whether you are optimizing space, simplifying mechanical layouts, or distributing torque across several axes, the Poggi 2006 with a 1:3 gear ratio is a proven and adaptable choice for your transmission needs.

Gear ratio: 1:3 (R1:3)
Increases output speed while reducing input torque — ideal for fast drive applications.
Configuration: D1/2, 4-shaft layout
Two outputs at 90° angles for synchronized motion across multiple axes.
Shaft diameter: Ø14h7
Tight tolerance fit for minimal backlash and secure torque transmission.
Material: Aluminium
Durable, corrosion-resistant, and lightweight.
Backlash: 15–30′
Nominal torque: 9 Nm @ 400 RPM
Maximum speed: 1000 RPM
