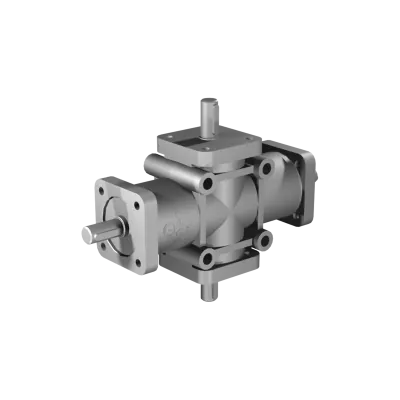

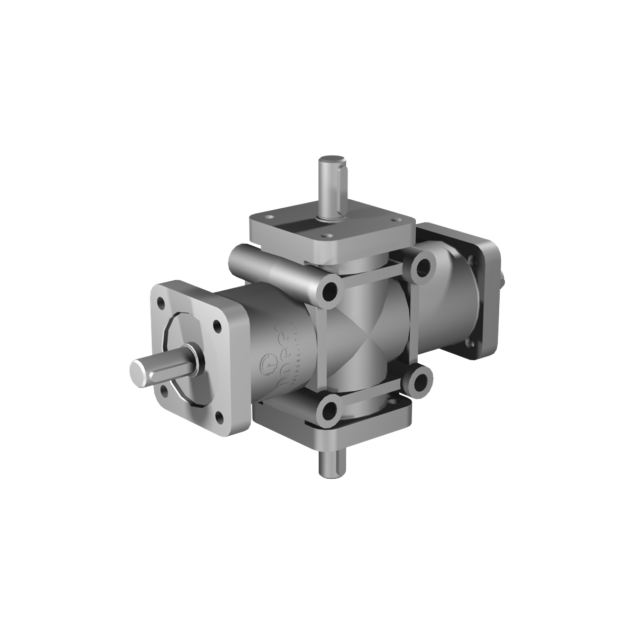

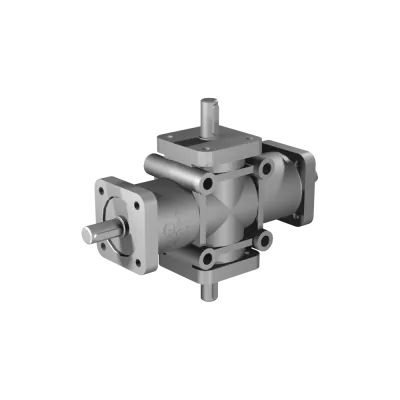

Poggi right angle gearbox 2006, R1:2, D1/2, Ø14h7, 4-way, Aluminium

HV3042006121

The Poggi right angle gearbox 2006, R1:2, D1/2, Ø14h7, 4-way, Aluminium is a compact and lightweight solution for multi-axis torque distribution in industrial automation. With a 1:2 gear ratio, it doubles output torque while reducing rotational speed—ideal for synchronized power splitting across two outputs.

The gearbox features a 4-shaft configuration (D1/2), distributing torque through two 90° axes for applications such as conveyor intersections, synchronized actuators, and rotary platforms. The Ø14h7 precision shafts ensure tight coupling with minimal backlash (15–30′), improving response accuracy in dynamic systems.

Constructed from aluminium, the gearbox combines corrosion resistance with reduced weight, making it well-suited for space-constrained and mobile applications. It supports speeds up to 1400 RPM and delivers 10 Nm nominal torque at 1400 RPM.

€537.00

Excluded taxes and delivery costs

Made to order

Expected shipment:

Estimated Shipping:

Description

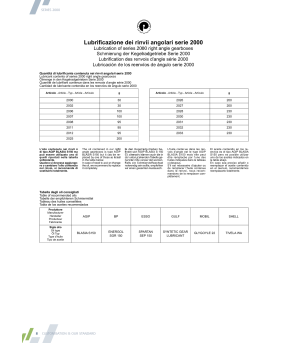

Engineered for performance, the Poggi 2006 delivers a 4-way layout with a 1:2 gear ratio and Ø14h7 shaft interfaces (D1/2). Built with a lightweight aluminium housing that balances strength, low weight, and heat efficiency. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.

Gear ratio: 1:2 (R1:2)
Reduces speed while amplifying torque — ideal for precision-controlled drives.

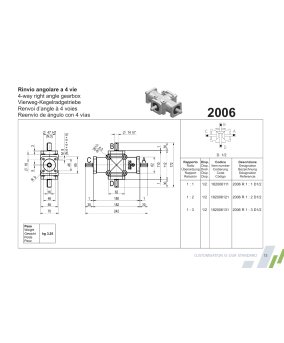

Configuration: D1/2, 4-shaft layout
Enables torque distribution to two outputs at 90°.
Shaft diameter: Ø14h7
Accurate fitment and low backlash operation.
Material: Aluminium
Lightweight construction, corrosion-resistant, and suitable for automation systems.
Backlash: 15–30′

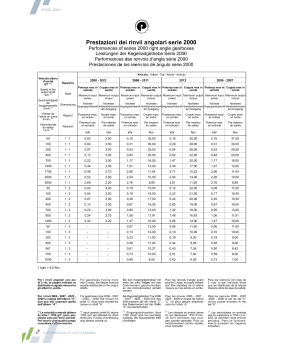

Nominal torque: 10 Nm @ 1400 RPM
Maximum speed: 1400 RPM
