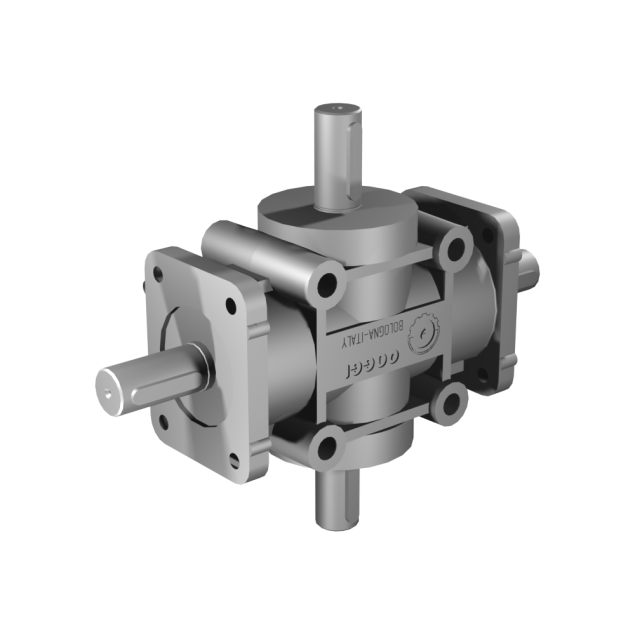

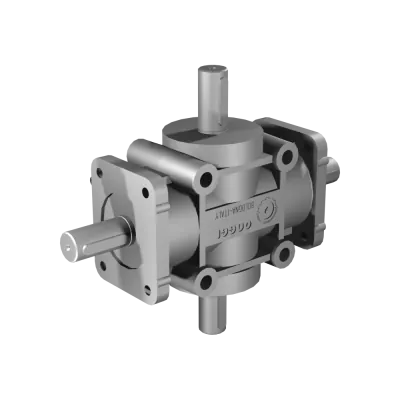

Poggi right angle gearbox 2026, R1:2, D1/2, Ø24h7, 4-way, Aluminium

HV3042026121

Poggi 2026 right-angle gearbox, R1:2, Ø24h7, 4-way, D1/2. Built with a lightweight aluminium housing — ideal for synchronized axis applications.

€760.00
Excluded taxes and delivery costs

Made to order

Expected shipment:

Loading...
Estimated Shipping:

Description

Poggi’s 2026 is ideal when you need a 4-way layout with a 1:2 gear ratio and Ø24h7 shaft interfaces (D1/2). Featuring a compact and robust aluminium casing that balances strength, low weight, and heat efficiency. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.

Specifications

Shaft diameter
Ø24h7
Number of shafts
4
Material
Aluminium
Max torque at 400RPM (Nm)
30
Max RPM (RPM)
700
Ratio
R1:2
Direction
D1/2
Backlash
Normal 15' - 30'

Downloads

Foreign trade

HS-Code
84834023
ERP net weight (Kg)
5.35
Country of origin
ITA
