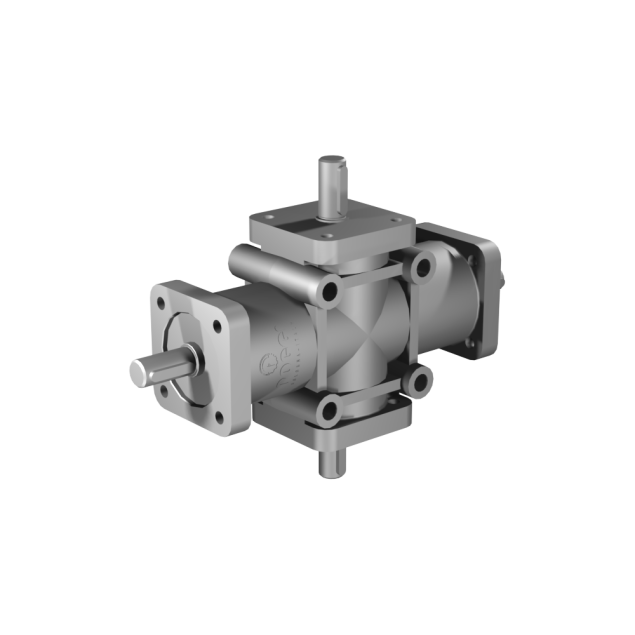

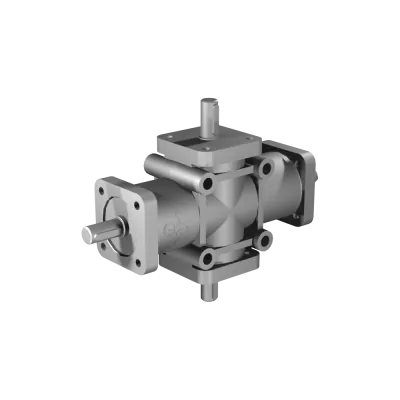

Poggi right angle gearbox 2006, R1:3, D1/2, Ø14h7, 4-way, Reduced backlash, Aluminium
HV3042006131SThe Poggi right angle gearbox 2006, R1:3, D1/2, Ø14h7, 4-way, Aluminium – Stainless Shaft Version is designed for applications requiring enhanced corrosion resistance and hygiene at the shaft interface. With a 3:1 gear ratio, it provides increased output speed at reduced torque, making it suitable for indexing functions, rollers, and other motion-control systems that prioritize speed.
This version features four Ø14h7 precision shafts in stainless steel, enhancing compatibility with wet or food-grade environments. The 4-way D1/2 configuration supports power distribution along two 90° axes, allowing integration into multi-axis systems. Housed in lightweight aluminium, the gearbox is compact, durable, and suitable for space-restricted installations.
It operates at up to 1000 RPM and delivers 9 Nm nominal torque at 400 RPM.
Made to order
Expected shipment:
More Information
Description
The Poggi 2006 gearbox is designed for a 4-way layout with a 1:3 gear ratio and Ø14h7 shaft interfaces (D1/2). Housed in corrosion-resistant aluminium that balances strength, low weight, and heat efficiency. This version is optimized with reduced backlash gearing, minimizing angular deviation and ensuring excellent positional accuracy in motion systems. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear ratio: 1:3 (R1:3)
Designed to increase output RPM while reducing torque — ideal for fast-running components. -
Configuration: D1/2, 4-shaft layout
Facilitates dual 90° outputs for efficient torque distribution. -
Shaft diameter: Ø14h7 (Stainless steel)
Corrosion-resistant shafts for hygiene-critical environments. -
Material: Aluminium housing
Lightweight and resistant to industrial wear. -
Nominal torque: 9 Nm @ 400 RPM
-
Maximum speed: 1000 RPM
