Home
Motors
Stainless steel motors
B3 motor flange

B3 motor flange

Shop By

Rated output (kW)

0.55 (1)
0.75 (2)
1.1 (2)
2.2 (1)
3 (1)

0

✕

Poles

2 (3)
4 (3)
6 (1)

0

✕

Mounting

B3 (7)

0

✕

BCD

85 (2)
100 (2)
115 (1)
130 (2)

0

✕

Efficiency standard

IE3 (4)
IE4 (3)

0

✕

IP classification

IP 66 (7)

0

✕

Voltage connection (Δ/Y)

230/400 (7)

0

✕

Marlin AC motor TEFC90L-6B3, 1.10kW, 900RPM, 230/400V, 50Hz, IP66, stainless steel

Marlin AC motor TEFC90L-6B3, 1.10kW, 900RPM, 230/400V, 50Hz, IP66, stainless steel TEFC90L-6B3

IP classification IP 66
Speed (RPM) 900
Rated output (kW) 1.1
Voltage connection (Δ/Y) 230/400
Nominal torque (Nm) 11.06
Mounting B3
BCD 115
Poles 6
Efficiency standard IE3
Shaft diameter (mm) Ø24
Cooling TEFC

€1,379.87

excl. VAT

Quantity

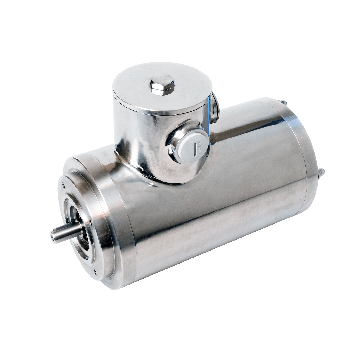

Marlin AC motor TENV80A-2B3, 0.75kW, 2800RPM, 230/400V, 50Hz, IP66, stainless steel

Marlin AC motor TENV80A-2B3, 0.75kW, 2800RPM, 230/400V, 50Hz, IP66, stainless steel TENV80A-2B3

IP classification IP 66
Speed (RPM) 2800
Rated output (kW) 0.75
Voltage connection (Δ/Y) 230/400
Nominal torque (Nm) 2.48
Mounting B3
BCD 85
Poles 2
Efficiency standard IE3
Shaft diameter (mm) Ø19
Cooling TENV

€1,008.73

excl. VAT

Quantity

Marlin AC motor TENV71B-2B3, 0.55kW, 2800RPM, 230/400V, 50Hz, IP66, stainless steel

Marlin AC motor TENV71B-2B3, 0.55kW, 2800RPM, 230/400V, 50Hz, IP66, stainless steel TENV71B-2B3

IP classification IP 66
Speed (RPM) 2800
Rated output (kW) 0.55
Voltage connection (Δ/Y) 230/400
Nominal torque (Nm) 1.85
Mounting B3
BCD 85
Poles 2
Efficiency standard IE4
Shaft diameter (mm) Ø14
Cooling TENV

€857.97

excl. VAT

Quantity

Marlin AC motor TEFC100LA-4B3, 2.20kW, 1400RPM, 230/400V, 50Hz, IP66, stainless steel

Marlin AC motor TEFC100LA-4B3, 2.20kW, 1400RPM, 230/400V, 50Hz, IP66, stainless steel TEFC100LA-4B3

IP classification IP 66
Speed (RPM) 1400
Rated output (kW) 2.2
Voltage connection (Δ/Y) 230/400
Nominal torque (Nm) 14.59
Mounting B3
BCD 130
Poles 4
Efficiency standard IE3
Shaft diameter (mm) Ø28
Cooling TEFC

€1,826.80

excl. VAT

Quantity

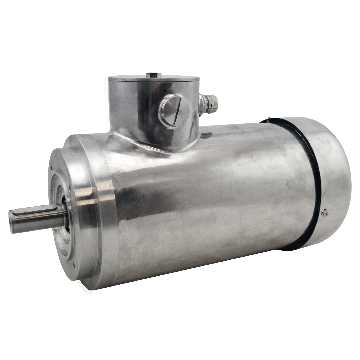

Marlin AC motor TEFC100LB-4B3, 3.00kW, 1455RPM, 230/400V, 50Hz, IP66, stainless steel

Marlin AC motor TEFC100LB-4B3, 3.00kW, 1455RPM, 230/400V, 50Hz, IP66, stainless steel TEFC100LB-4B3

IP classification IP 66
Speed (RPM) 1400
Rated output (kW) 3
Voltage connection (Δ/Y) 230/400
Nominal torque (Nm) 19.7
Mounting B3
BCD 130
Poles 4
Efficiency standard IE3
Shaft diameter (mm) Ø28
Cooling TEFC

€2,005.27

excl. VAT

Quantity

Marlin AC motor TENV80B-4B3, 0.75kW, 1400RPM, 230/400V, 50Hz, IP66, stainless steel

Marlin AC motor TENV80B-4B3, 0.75kW, 1400RPM, 230/400V, 50Hz, IP66, stainless steel TENV80B-4B3

IP classification IP 66
Speed (RPM) 1400
Rated output (kW) 0.75
Voltage connection (Δ/Y) 230/400
Nominal torque (Nm) 4.9
Mounting B3
BCD 100
Poles 4
Efficiency standard IE4
Shaft diameter (mm) Ø19
Cooling TENV

€996.68

excl. VAT

Quantity

Marlin AC motor TEFC80B-2B3, 1.1kW, 2800RPM, 230/400V, 50Hz, IP66, stainless steel

Marlin AC motor TEFC80B-2B3, 1.1kW, 2800RPM, 230/400V, 50Hz, IP66, stainless steel TEFC80B-2B3

IP classification IP 66
Speed (RPM) 2800
Rated output (kW) 1.1
Voltage connection (Δ/Y) 230/400
Nominal torque (Nm) 3.64
Mounting B3
BCD 100
Poles 2
Efficiency standard IE4
Shaft diameter (mm) Ø19
Cooling TEFC

€1,310.78

excl. VAT

Quantity

7 Items

Show

Compare Products
