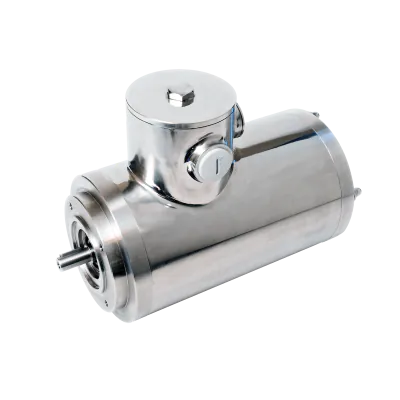

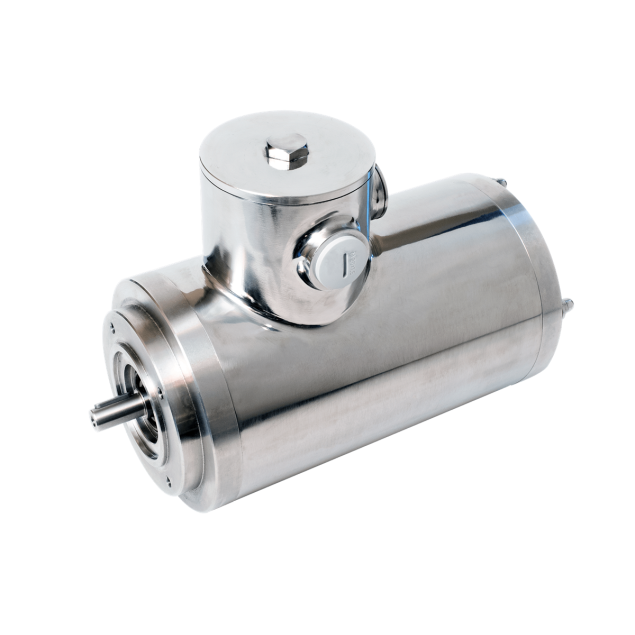

Marlin AC motor TENV80A-2B3, 0.75kW, 2800RPM, 230/400V, 50Hz, IP66, stainless steel
TENV80A-2B3
Specifications
Product description
Downloads
€1,009.92
Made to order
Expected shipment: 14-02-2025
More Information
IP classification
IP 66
Producer
Kaiser motoren
Model
TENV 80A-2B3
Speed (RPM)
2800
Rated output (kW)
0.75
Efficiency (% FL)
84.6
Voltage connection (Δ/Y)
230/400
Rated current at voltage
2.51/1.45
Nominal torque (Nm)
2.48
Start current ratio (IA/IN)
8.4
Mounting
B3
IEC norm
71
BCD
85
Poles
2
Certifications
UL, cURus
Efficiency standard
IE3
Shaft diameter (mm)
Ø19
Cooling
TENV
Description
Key features:
- Clean-in-Place: The motor's design allows for easy and efficient cleaning, minimizing downtime and ensuring impeccable hygiene standards.
- IP66 rating: With a robust IP66 rating, this motor is protected against dust and powerful jets of water.
- TENV (Totally Enclosed Non-Ventilated): The TENV enclosure offers protection against contaminants and provides reliable performance under challenging conditions.
- 0.75kW power: The motor boasts a power output of 0.75kW.
- 2800RPM: With an rotational speed of 2800RPM.
- B3 flange: The B3 flange mounting enhances versatility and simplifies installation in various setups.
- IE3 efficiency: This motor adheres to IE3 standards.
Specifications:
- Material: EN 1.4301/AISI 304, EN 1672-2
- Certification: cURus and UL approved.
Downloads
Kaiser Motoren stainless steel motors operating instructions
Kaiser Motoren stainless steel motors operating instructions.pdf
Download file
