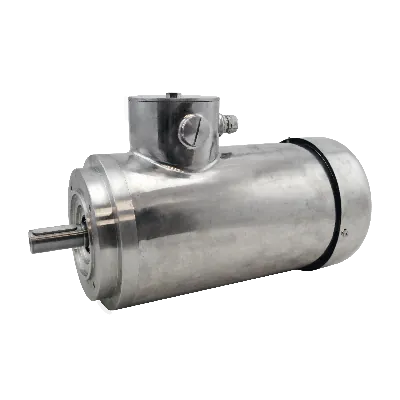

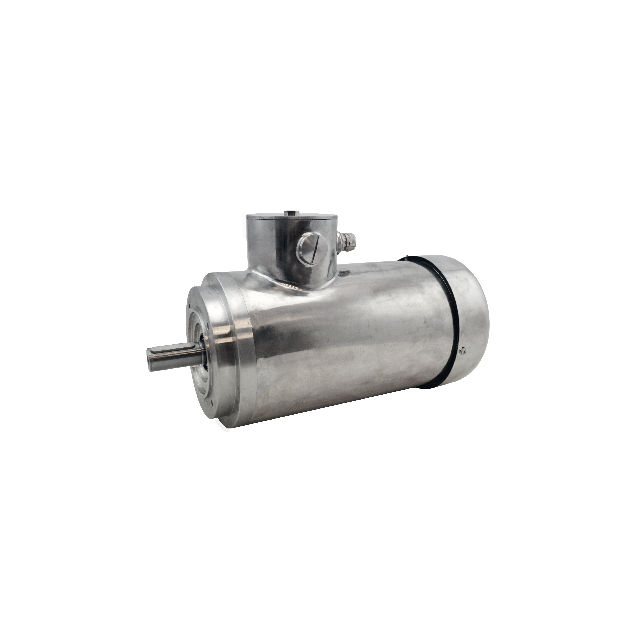

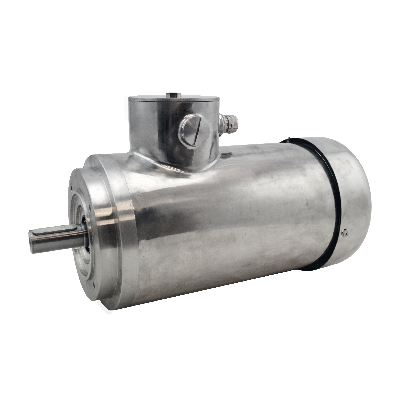

Marlin AC motor TEFC100LB-4B3, 3.00kW, 1455RPM, 230/400V, 50Hz, IP66, stainless steel
TEFC100LB-4B3The Marlin AC Motor TEFC100LB-4B3 is a robust industrial motor designed for demanding environments. It features a 3.00 kW output and operates at 1455 RPM. The motor is compatible with 230/400 V power supply at 50 Hz. Its TEFC (Totally Enclosed Fan Cooled) design ensures enclosure protection, while the IP66 rating provides full dust tightness and protection against strong water jets. A stainless steel (SS) hollow shaft and SS housing ensure high resistance to corrosion, making it suitable for harsh environments and washdown applications. The frame size 100LB standardises mounting and integration.
Specifications
Product description
Downloads
€2,012.00
Made to order
Expected shipment:
Loading...
More Information
IP classification
IP 66
Model
TEFC 100LB-4B3
Speed (RPM)
1400
Rated output (kW)
3
Efficiency (% FL)
87.7
Voltage connection (Δ/Y)
230/400
Rated current at voltage
10.57/6.10
Nominal torque (Nm)
19.7
Start current ratio (IA/IN)
7.8
Mounting
B3
BCD
130
Poles
4
Efficiency standard
IE3
Shaft diameter (mm)
Ø28
Cooling
TEFC
HS-Code
85015100.000000
Description
Brand Description: Marlin is a globally trusted manufacturer renowned for producing high-performance electric motors designed to thrive in rigorous industrial environments. Built to meet the highest engineering standards, Marlin products are known for their durability, precision, and adaptability. With strong roots in the manufacturing, food processing, chemical, and marine industries, Marlin motors combine cutting-edge materials and design to deliver exceptional reliability and efficiency.Product Description with Focus on Key Features:
Fully Enclosed Fan-Cooled (TEFC) Design — Enhances thermal management while preventing debris, dust, and moisture from affecting internal components, ideal for harsh industrial conditions.
Stainless Steel Housing (SS) — Corrosion-resistant enclosure perfect for hygienic or washdown applications such as food and beverage processing, pharmaceuticals, and marine environments.
Stainless Steel Hollow Shaft (SS) — Improves durability and corrosion resistance at the drive end of the motor, especially in humid, saline, or chemical-prone surroundings.
IP66 Protection Rating — Ensures complete ingress protection against dust and high-pressure water jets, making it suitable for outdoor and high-moisture environments.
100LB IEC Frame Size — Compatible with a wide range of gear units and industrial automation systems, facilitating integration and equipment design flexibility.
3.00kW Rated Power — Offers a robust and energy-efficient solution for continuous-duty machinery across sectors such as wastewater management, packaging, and material handling.
Speed: 1455RPM @ 50Hz — Aligns with standard speed-class motors, enabling optimal performance for conveyors, pumps, and mixers without additional speed regulation.
Dual Voltage 230/400V — Adaptable to a variety of power systems, easing installation and compatibility with existing infrastructure across global industrial facilities.
High Mechanical Efficiency — Designed to meet stringent energy efficiency standards while maximizing operational uptime and reducing total cost of ownership.
Fully Enclosed Fan-Cooled (TEFC) Design — Enhances thermal management while preventing debris, dust, and moisture from affecting internal components, ideal for harsh industrial conditions.
Stainless Steel Housing (SS) — Corrosion-resistant enclosure perfect for hygienic or washdown applications such as food and beverage processing, pharmaceuticals, and marine environments.
Stainless Steel Hollow Shaft (SS) — Improves durability and corrosion resistance at the drive end of the motor, especially in humid, saline, or chemical-prone surroundings.
IP66 Protection Rating — Ensures complete ingress protection against dust and high-pressure water jets, making it suitable for outdoor and high-moisture environments.
100LB IEC Frame Size — Compatible with a wide range of gear units and industrial automation systems, facilitating integration and equipment design flexibility.
3.00kW Rated Power — Offers a robust and energy-efficient solution for continuous-duty machinery across sectors such as wastewater management, packaging, and material handling.
Speed: 1455RPM @ 50Hz — Aligns with standard speed-class motors, enabling optimal performance for conveyors, pumps, and mixers without additional speed regulation.
Dual Voltage 230/400V — Adaptable to a variety of power systems, easing installation and compatibility with existing infrastructure across global industrial facilities.
High Mechanical Efficiency — Designed to meet stringent energy efficiency standards while maximizing operational uptime and reducing total cost of ownership.
