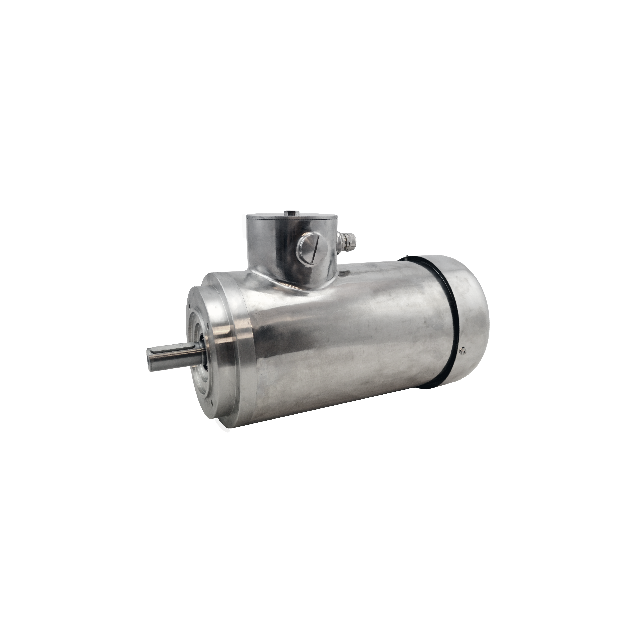

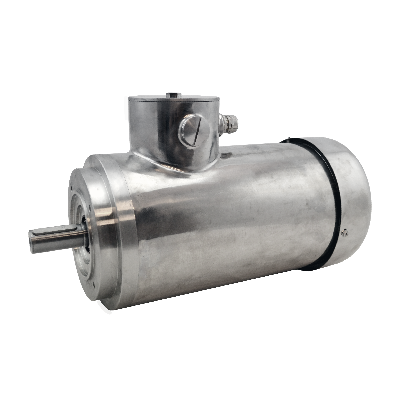

Marlin AC motor TEFC80B-2B3, 1.1kW, 2800RPM, 230/400V, 50Hz, IP66, stainless steel
TEFC80B-2B3The Marlin TEFC80B-2B3 is a hygienic IEC-standard stainless steel motor rated at 1.1 kW, operating at 2885 RPM (2-pole). Built to perform in demanding environments, this motor features a B3 foot mounting and is suitable for applications requiring high rotational speed and compact integration in hygienic zones.
Constructed from EN 1.4301 stainless steel, the motor is equipped with Totally Enclosed Fan Cooled (TEFC) cooling, IP66 ingress protection, and PTC thermal protection. With a shaft diameter of Ø19 mm and a BCD of 100 mm, it ensures seamless mechanical integration. Delivering a pull-out torque of 2.9 Nm, a break-away torque of 2.5 Nm, and an IE4 energy efficiency (85.2%), this motor is optimized for continuous-duty operation in washdown and food-grade settings.
Typical applications:
-
Stainless steel conveyors
-
Rotary equipment in cleanroom zones
-
Mixing and filling systems
-
General automation in hygienic environments
Made to order
Expected shipment:
More Information
Description
Key features:
- Clean-in-Place (CIP) Capability: Ensures easy and thorough cleaning of the motor.
- IP66 rating: Provides protection against dust, water, and other contaminants.
- Totally Enclosed Fan Cooled (TEFC) Design: Offers motor protection, preventing any external elements from entering and damaging the motor components.
- High power: Boasting a 1.1kW output, this motor delivers robust performance.
- Efficient operation: Runs at 2800RPM, ensuring optimal efficiency.
- B3 flange: Offers a secure and stable installation.
- High efficiency IE4 rating: Provides energy savings and reducing operational costs.
Specifications:
- Material: Constructed from EN 1.4301/AISI 304 and EN 1672-2 stainless steel.
- Certification: Holds cURus certification and UL approval.
